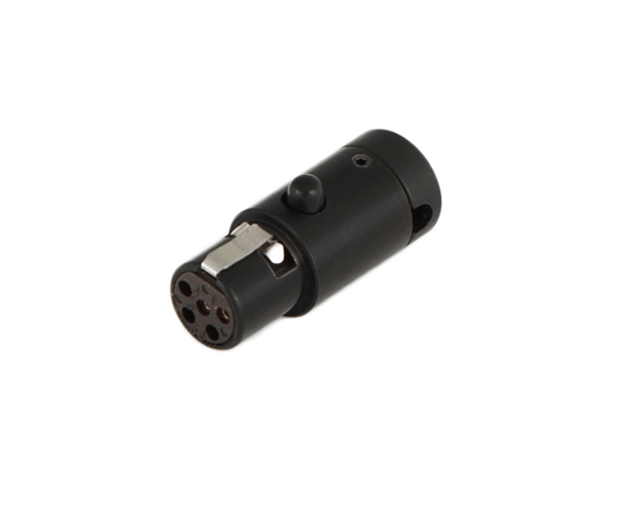

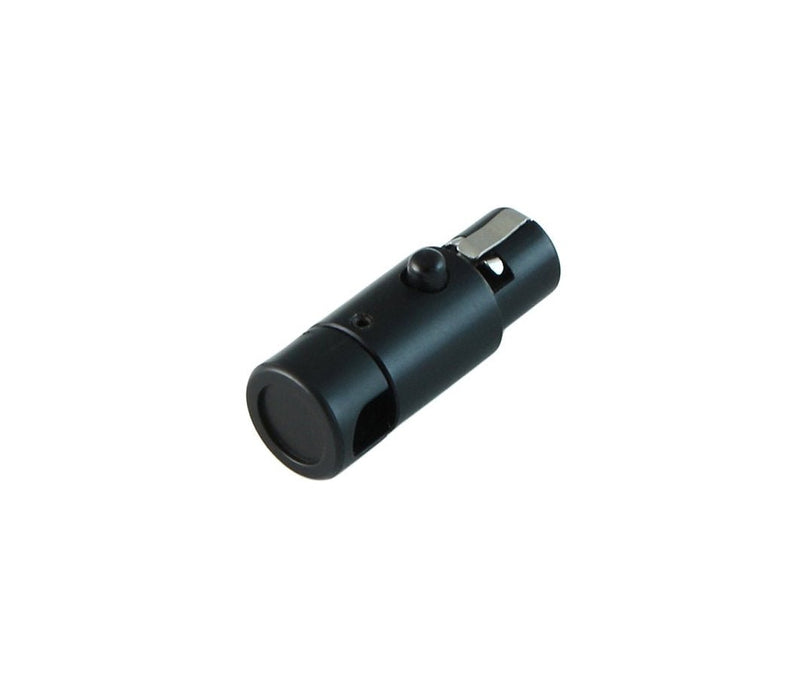

Cable Techniques - Low Profile Right Angle Mini XLR - 5 Pin Female.

LPS Series Low-Profile Right Angle TA5F "Mini XLR" 5-pin Female Connector, Adjustable Left or Right 90° Side-exit, use with gear like Lectrosonics SRc5P/SRb5P Receivers outs, Sound Devices Scorpio inputs, Zaxcom Nomand, Zax-Max, DEVA-24 and Zaxcom QRX wireless receiver outs and Wisycom Receivers with Top-Feed and more. Also a great option for cables and Lavalier microphones into Lectrosonics transmitters like SMV, SMQV, SMWB and SMDWB.

Using the same concept as our LoPro XLR connectors, mini set-screws lock down the color cap securely and allow for degree of outlet adjustment. The cable outlet can be set to either Left or Right with 60° adjustment range for maximum flexibility.

Two Cap Versions: Standard cap accepts cable diameters up to 3.2mm and the new Large cap accepts cables up to 5.0mm.

Available with a choice of 10 color caps or can be color-coded with a Black cap and our Color Polydomes. Compatible with our high-quality CT-RAWCB-284 and CT-RAWCB-234 bulk cable sold by the meter for DIY projects. Also compatible with popular slim cable models such as Belden 1804A and Mogami W2929 and more.

Specifications:

Cable Outlet: up to 3.2mm or 5.0mm
5-Pin
Low-Profile Right Angle
Angle Adjust: 60° to 120° and 240° to 300°
Weight: 0.4 oz
Dimensions: 10mm x 25mm
Black shell
Gold Contacts
Grub Screw Hex Head Size: 0.9mm
