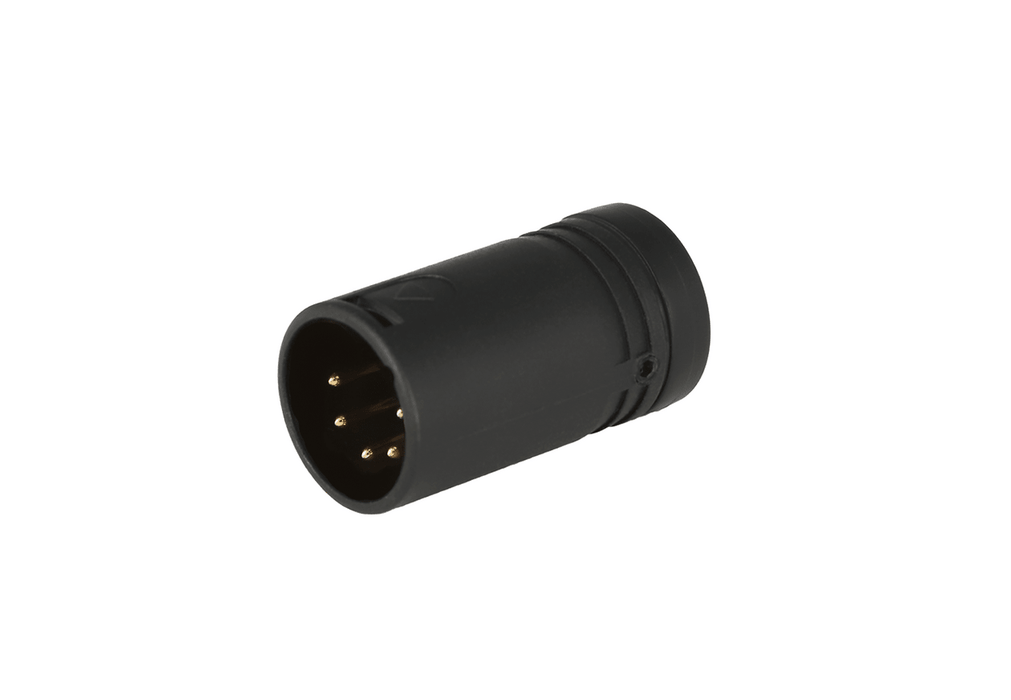

Cable Techniques - Low-Profile Right Angle XLR 5-pin Male, B-Shell.

Currently Out Of Stock
$35.99
SKU CT-BX5M-K

Low-Profile Right Angle XLR 5-pin Male Connector, B-Shell = Adjustable Multi-angle cable exit 120° around 6 o'clock or 12 o'clock, matte Black shell with gold pins. Available with Black cap. Can be color-coded with the addition of a color cap [sold separately]: Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.


Two Cap Versions: Standard cap accepts cable diameters up to 3.4mm and the new Large cap accepts cables from 3.8mm to 6.0mm. You can adjust the cable outlet of the XLR 120° around 6 o'clock or 12 o'clock.

Compatibility: We offer compatible high-quality bulk cable for our Lo-Pro connectors sold by the meter for DIY projects. The Standard cap is also compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697 and Sommer Cable Isopod SO-F22.

The Large Cap can use the super popular Mogami W2549, W2534, W2893, W2552, Canare L-4E6S and many more.

Specifications:

Low-Profile Right Angle
B Shell
Cable Outlet: up to 3.4mm or 3.8 to 6.0mm
Angle Adjust: 120° to 240° and 300° to 60°
120° adjustment swing
Weight: 0.7 oz
Dimensions: 35mm x 18mm (Standard Cap)
35mm x 18mm (Large Cap)
Black shell, Gold Contacts
