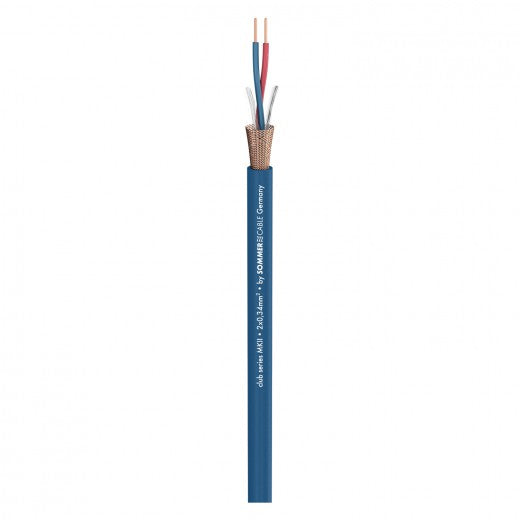

Sommer Cable - Club Series - Blue

$5.99
SKU 200-0052
***Price Is Per Meter***

No blood running through those veins...

but yet a whole lot of life. A wire gauge of 2 x 0,34 mm?? is impressive and the electrical data speaks for itself. A cable that provides great performance data at an excellent price, used for stage and studio settings. The large cross section and the low capacitance guarantee outstanding transmission quality, even over longer distances. The shielding, made of bare copper wires has a 95 % optical coverage (instead of the usual 85 %). The robust, rubberlike, matt outer sleeve is preferred by performing musicians and guarantees outstanding flexibility even in lowest temperatures.

Advantages:

  • High transmission quality through the use of oxygen-free copper stranding with a large wire gauge of 2 x0,34 mm??
  • Very low capacitance due to PE insulation
  • Good shielding due to the dense Cu mesh screen
  • High flexibility makes it easy to reel

Application:

  • Stage application
  • Studio operation
  • Permanent Installation

???Specifications:

Article number 200-0052
Name Club Series MKII
EAN 4049371001946
Properties OFC oxygen free copper
Properties Analog
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application Microphone Cable
Colour blue
Colour detailed blue
Signal transmission symmetrical
Construction (2LI2Y0,34mm??)CY
Jacket material PVC
Jacket ?? [mm] 6,50
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,34
Inner conductor ?? (audio) [mm] 0,66
AWG (audio) 22
Shielding Copper braided shielding with 0.10 mm indiv. strands
Shielding factor [%] 95
Copper strands (audio) 19
Copper strand ?? (audio) [mm] 0,15
Conductor insulation material PE
Conductor insulation ?? [mm] 1,50
Weight per 1 m [g] 50
Fire load per m [kWh] 0,22
Style variant round
Packing 500 m spool
Packing 100 m spool
Temperature min. [??C] -25
Temperature max. [??C] 70
Width [mm] 6,5
Height [mm] 6,5
Capac. cond./cond. per 1 m (audio) [pF] 58
Capacity wire/wire at 1 ft. (audio) [pF] 17,6784
Capac. cond./shield. per 1 m (audio) [pF] 115
Capacity wire/electic screen at 1 ft. (audio) [pF] 35,052
Impedance [??] 100
Insulation resist. per 1 km [G??] 1
Insulation resist. per 1000 feet [G??] 0,3048
Insulation resist. per 1 km (audio) [G??] 1
Insulation resist. per 1000 feet (audio) [G??] 0,3048
Conductor resistance per 1 km [??] 55
Conductor resistance per 1000 ft. [??] 16,764
Shield. resistance per 1 km [??] 25
Shield. resistance per 1000 ft. [??] 7,62
BPVo-Euroclass Fca
