Ten 47’s CableGuard arm was formed to manufacture and supply the highest quality, most durable cable ramps and cable protector systems for the European market.

Our ever growing range stretches from a low profile single channel to a modular system where you can potentially have a limitless number of large channels. We also have mobility access systems which connect to our standard products.

We can also custom brand products, add reflectors for better visibility and manufacture within a short lead time to give the best service we can to our customers. Custom marking promotes our customer’s brand and act as an anti-theft deterrent, with customers reporting a dramatic fall in lost product when own branded.

Typical applications are events, tours, large industrial sites, temporary power or works and mining. In addition to our Cableguards, Ten 47 supplies harsh environment connectors to the Railway, Entertainment, Temporary Power and various industrial markets.

  • Cable Guard - Redline 5 Channel with Scalloped Lid.

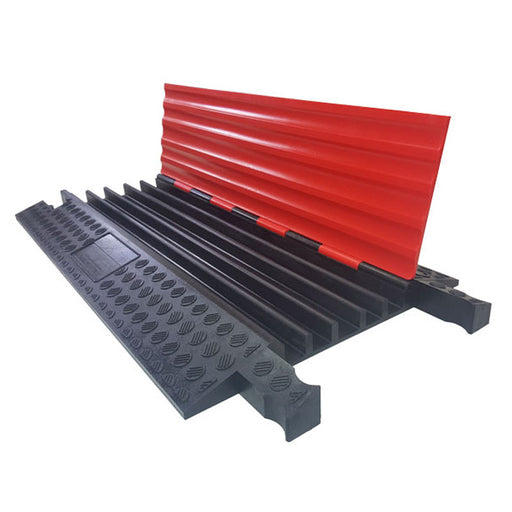

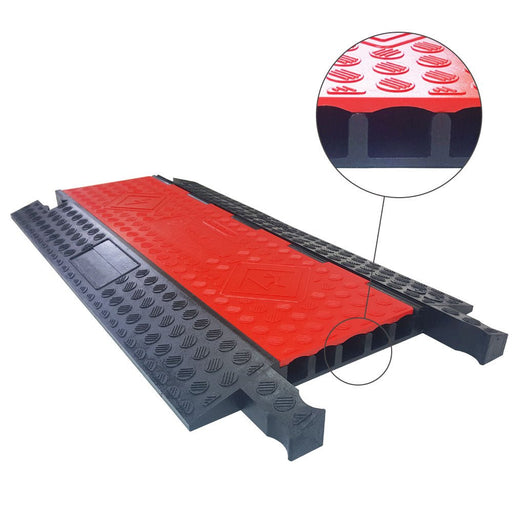

    Cable Guard - Redline 5 Channel with Scalloped Lid.

    Cable Guard
    $326.99
    Red Line 5 Channel – Scalloped Lid RL5-33-SL Heavy duty 5 channel with Dog-bone connectors for use with high volume vehicular traffic. Highly visible with red extra thick lids, black base and low angle (20°) black side ramps. Increased channel height ideal for larger cable diameters. Maximum load per axle 9140kg @20°C. Part Number: RL5-33-SL Note: Red Line 5 Channel – Scalloped Lid (RL5-33-SL) also connects directly to a Red Line 5 Channel (RL5-31-LW). Number of channels 5 Channel Size W x H (mm) (4x) 33 x 35 (1x) 39 x 35 Height (mm) 46 Width (mm) 502 Length (mm) 910 Weight (kg) 11.6 * Dimensions and weights are nominal and accurate to approximately 1%
    $326.99
  • Cable Guard - Redline 5 Channel.

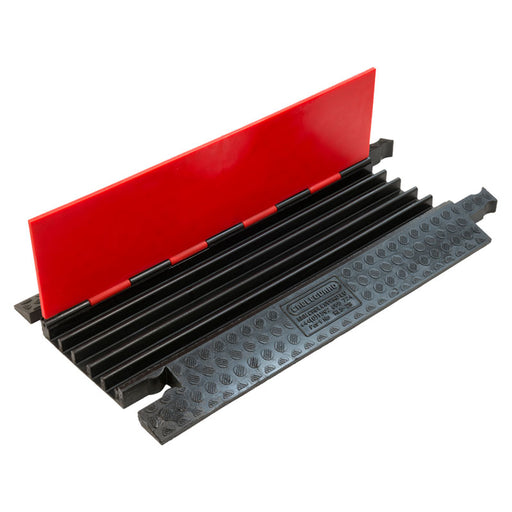

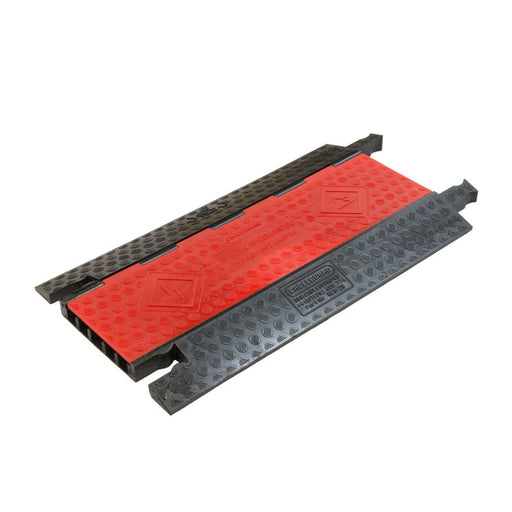

    Cable Guard - Redline 5 Channel.

    Cable Guard
    $326.99
    Red Line 5 Channel RL5-31-LW Heavy Duty 5 Channel Cable Ramp for use with high volume vehicular traffic. Maximum load per axle 9140 Kg @ 20°C Dog-bone connectors Part Number: RL5-31-LW Note: The Red Line 5 Channel Cable Ramp (RL5-31-LW) can connect to Red Floor 5 Channel Cable Ramp (RF5-31) with transition pieces Red Line 5 to Red Floor 5 (RL5/RF5-TP) and Red Floor 5 to Red Line 5 (RF5/RL5-TP) transition pieces. Number of channels 5 Channel Size W x H (mm) (4x) 33 x 31 (1x) 39 x 31 Height (mm) 46 Width (mm) 502 Length (mm) 910 Weight (kg) 12.2 * Dimensions and weights are nominal and accurate to approximately 1%
    $326.99
  • Cable Guard - Wheelchair Male Ramp.

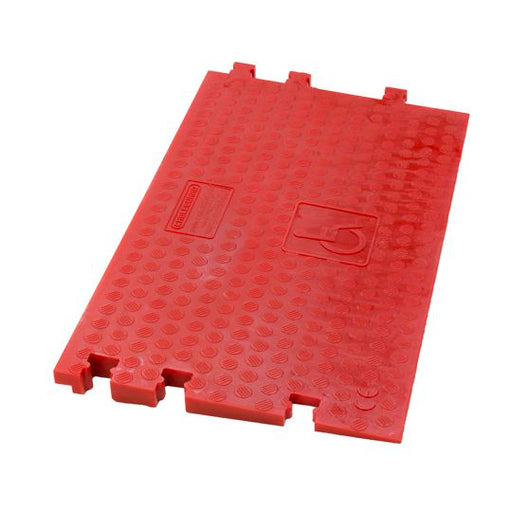

    Cable Guard - Wheelchair Male Ramp.

    Cable Guard
    $325.99
    Red Floor 3/5 Wheelchair Male Ramp RF3/5-WMR Wheelchair Male Ramp for Red Floor 3 Centre (RF3-55-C) and Red Floor 5 Centre (RF5-31-C). Part Number: RF3/5-WMR Height (mm) 48 Width (mm) 515 Length (mm) 910 Weight (kg) 9.8 * Dimensions and weights are nominal and accurate to approximately 1%
    $325.99
  • Cable Guard - Red Floor 5 Male Ramp.

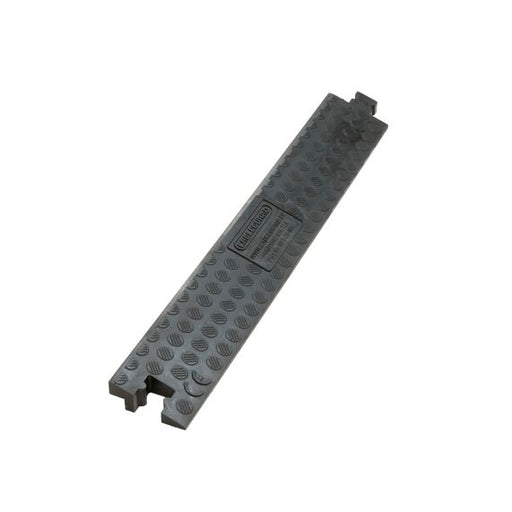

    Cable Guard - Red Floor 5 Male Ramp.

    Cable Guard
    $74.99
    Red Floor 5 Male Ramp RF5-31-MR Standard Male Ramp for use with Red Floor 5 Centre (RF5-31-C). Maximum load per axle 9140 Kg @ 20°C Part Number: RF5-31-MR Height (mm) 48 Width (mm) 124 Length (mm) 910 Weight (kg) 2.8 * Dimensions and weights are nominal and accurate to approximately 1%
    $74.99
  • Cable Guard - Red Floor 5 Centre with Scalloped Lid.

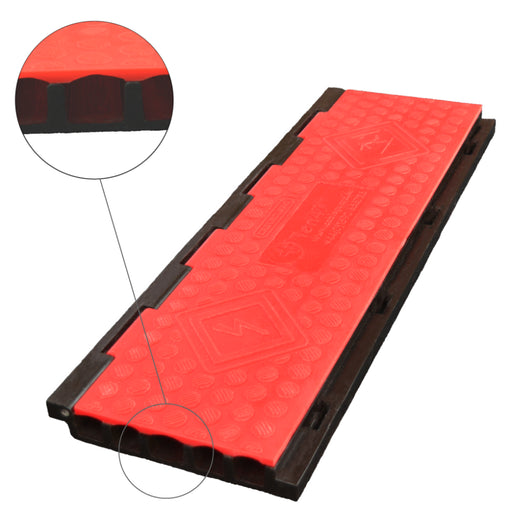

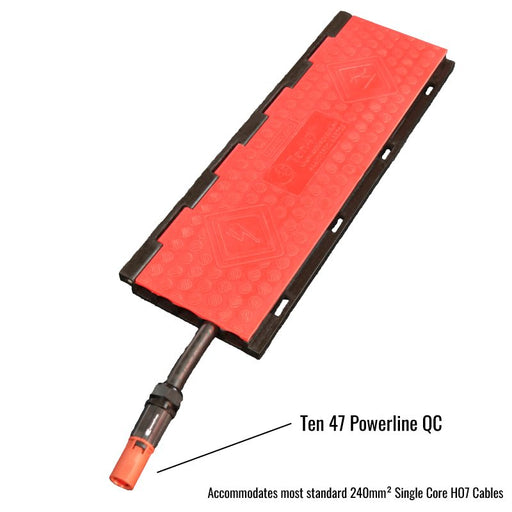

    Cable Guard - Red Floor 5 Centre with Scalloped Lid.

    Cable Guard
    $262.99
    Red Floor 5 Centre – Scalloped Lid RF5-33-SL Heavy Duty 5 Channel Scalloped Lid Centre piece for use with high volume vehicular traffic and all pedestrian traffic. Available with standard and wheelchair access ramps. Connect the 5 slot centre pieces together to provide a flat floor surface protecting as many cables as required. Increased channel height ideal for larger cable diameters. Accommodates most standard 240mm² Single Core HO7 cables. Maximum load per axle 9140 Kg @ 20°C Part Number: RF5-33-SL Number of channels 5 Channel Size W x H (mm) (4x) 33 x 35 (1x) 42 x 35 Height (mm) 48 Width (mm) 305 Length (mm) 910 Weight (kg) 7.3 * Dimensions and weights are nominal and accurate to approximately 1%
    $262.99
  • Cable Guard - Red Floor 5 Centre.

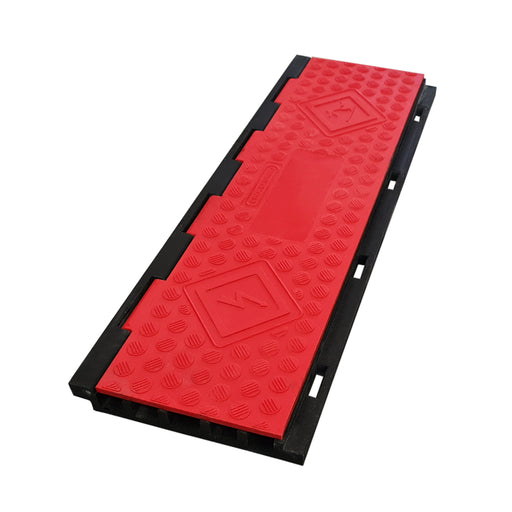

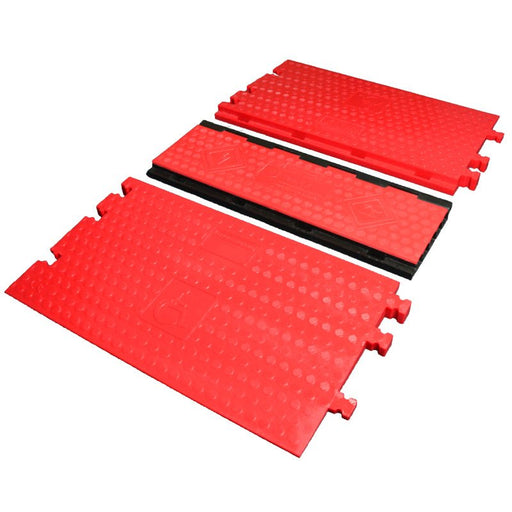

    Cable Guard - Red Floor 5 Centre.

    Cable Guard
    $262.99
    Red Floor 5 Centre RF5-31-C Heavy Duty 5 Channel Centre piece for use with high volume vehicular traffic and all pedestrian traffic. Available with standard and wheelchair access ramps. Connect the 5 slot centre pieces together to provide a flat floor surface protecting as many cables as required. Maximum load per axle 9140 Kg @ 20°C Part Number: RF5-31-C Number of channels 5 Channel Size W x H (mm) (4x) 33 x 31 (1x) 42 x 31 Height (mm) 48 Width (mm) 305 Length (mm) 910 Weight (kg) 7.3 * Dimensions and weights are nominal and accurate to approximately 1%
    $262.99
