ProLink - MUC216 - 16-way Analog Audio Multi-pair Cable - Spiral Shielding
by Prolink
Currently Out Of Stock
$19.99
SKU PL-C-MUC216
This 16-way multi-core audio frequency control cable is typically used to connect performers on stage to a mixing desk the side of stage for monitor mixing, or front of stage for FOH mixing.

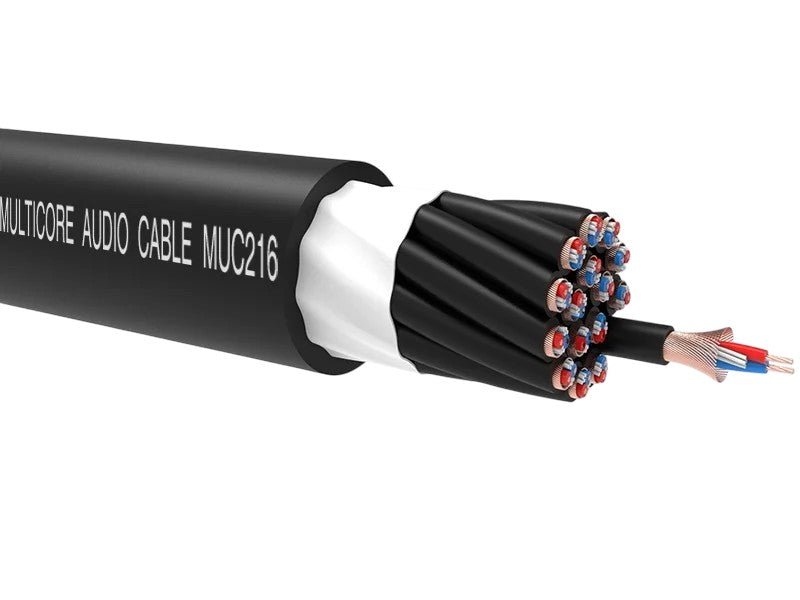

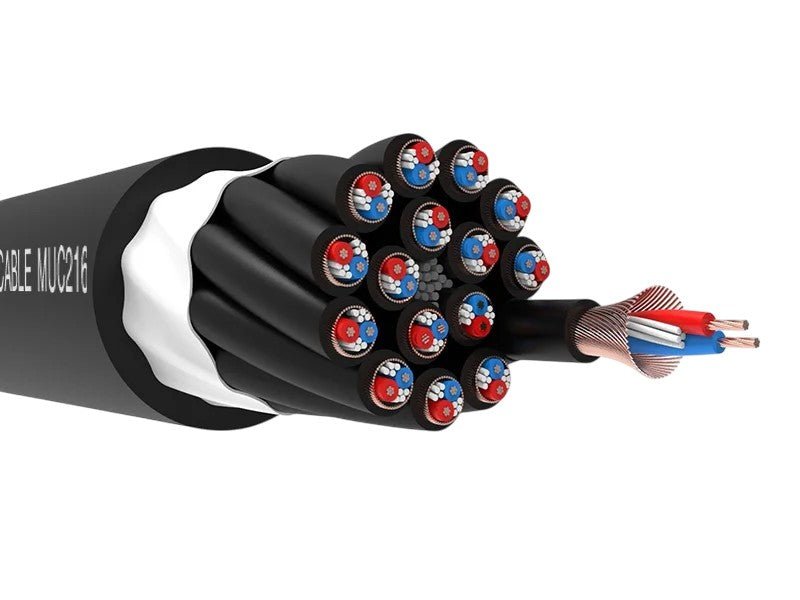

Each channel consists of a twisted pair of OFC 25AWG conductors, wrapped in a copper spiral shielding and covered in a PVC jacket.
Features
- 16 Channel audio frequency control cable
- 25 AWG stranded bare copper conductor
- Individual copper spiral shielding
- Each channel with individual jacketed pairs
- Numbered jacket pair identification
- Ultra flexible PVC outer jacket
- 18.0mm (Ø) outer diameter
Specifications

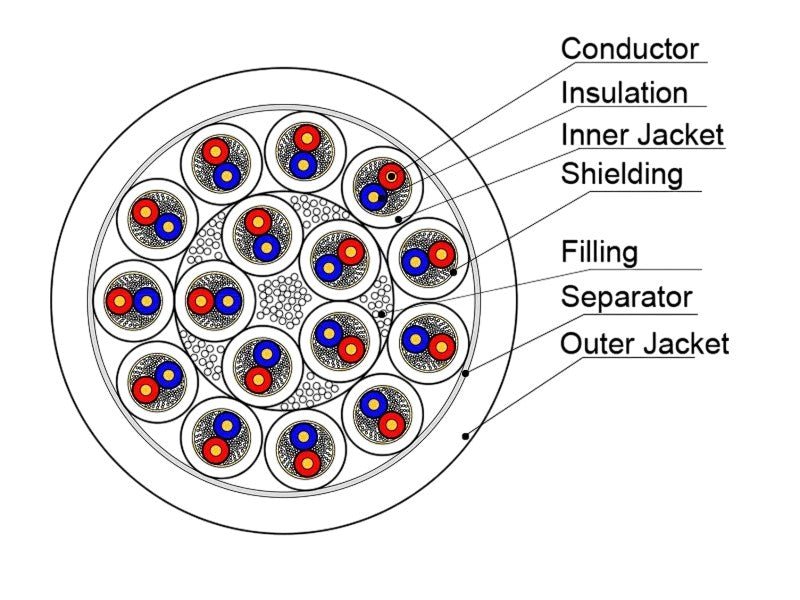

| Construction | Electrical characteristics | |||
| Type of cable | 16-way Multicore audio frequency control cable | Conductor resistance-100M | ≤ 12 ohm | |
| Conductor material | Bare stranded copper | Capacity (C/C) ＠ 1kHz | 165 pF/m | |
| Structure of conductor | 20 x 0.1mm, 0.16 mm2, 25 AWG | Capacity (C/S) ＠ 1kHz | 175 pF/m | |
| Insulation | 2pcs, PE, Red / Blue | Mechanical characteristics | ||
| Conductor twisting | Yes | Temperature range | -20 °C to +70 °C | |
| Shielding | 45 x 0.1mm BC spiral | Bending radius | 10 x outer diameter | |
| Inner Jacket | PVC, Black |
Weight |
396g/m | |
| Inner Assembly | 16 pair twisted in layter | |||
| Outer Assembly | Cotton filler, Textile fleece separator | |||
| Outer jacket | PVC, Black, Ø18.0 | |||
