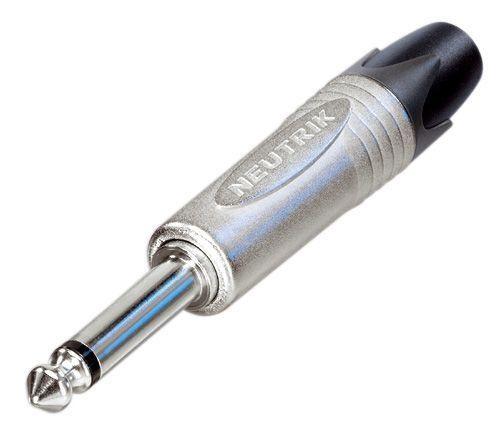

Neutrik - NP2X - 1/4" professional phone plug, 2 pole, nickel contacts, nickel shell.
by Neutrik
$11.55
SKU NP2X
1/4" professional phone plug, 2 pole, nickel contacts, nickel shell
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Features & Benefits
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Technical Information
Product | |
Title | NP2X |
Connection Type | Plug |
Gender | male |
Electrical | |
Contact resistance | depends on mating connector m? |
Dielectric strength | 1 kVdc |
Insulation resistance | > 2 (initial) G? ? 1 G? (after damp heat test) |
Rated current per contact | depends on mating connector A |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | 4 - 7 mm |
Lifetime | > 1000 mating cycles |
Wiresize | 1 mm? |
Wiresize | 18 AWG |
Wiring | Solder contacts |
Material | |
Bushing | Polyacetal (POM) + PU |
Contact plating | 2 ?m Ni (Su) |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Strain relief | Polyacetal (POM) |
Environmental | |
Standard compliance | IEC 60603-11 / EIA RS-453 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -20 ?C to +65 ?C |
