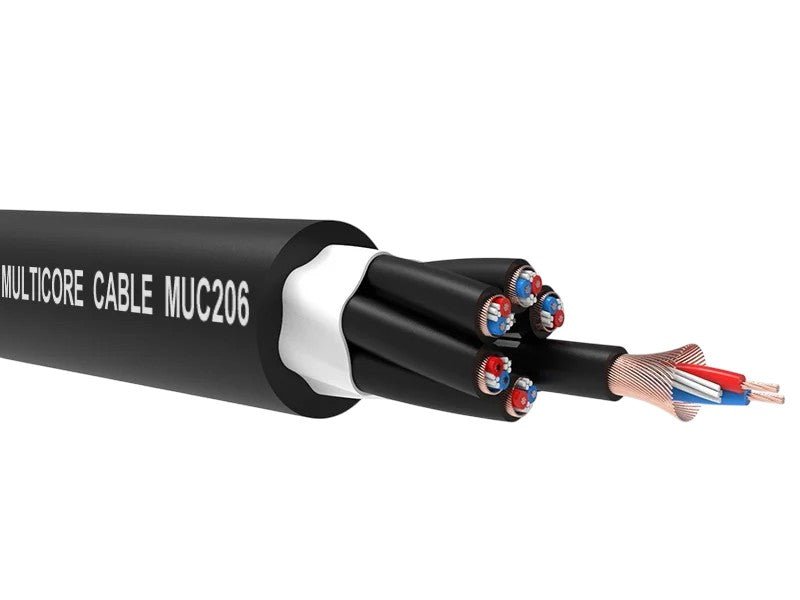

This 6-way multi-core audio frequency control cable is typically used to connect performers on stage to a mixing desk the side of stage for monitor mixing, or front of stage for FOH mixing.

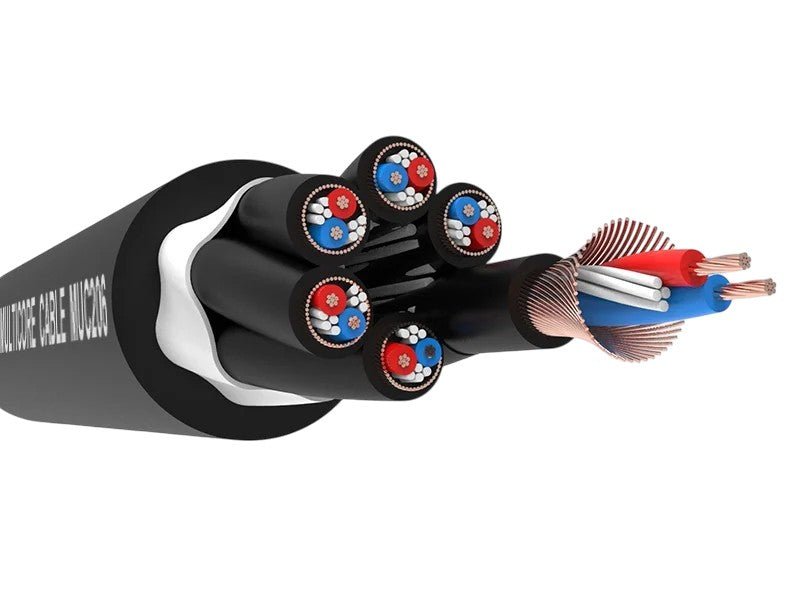

Each channel consists of a twisted pair of OFC 25AWG conductors, wrapped in a copper spiral shielding and covered in a PVC jacket.
Features:
- 6 Channel audio frequency control cable
- 25 AWG stranded bare copper conductor
- Individual copper spiral shielding
- Each channel with individual jacketed pairs
- Numbered jacket pair identification
- Ultra flexible PVC outer jacket
- 12.0mm (Ø) outer diameter

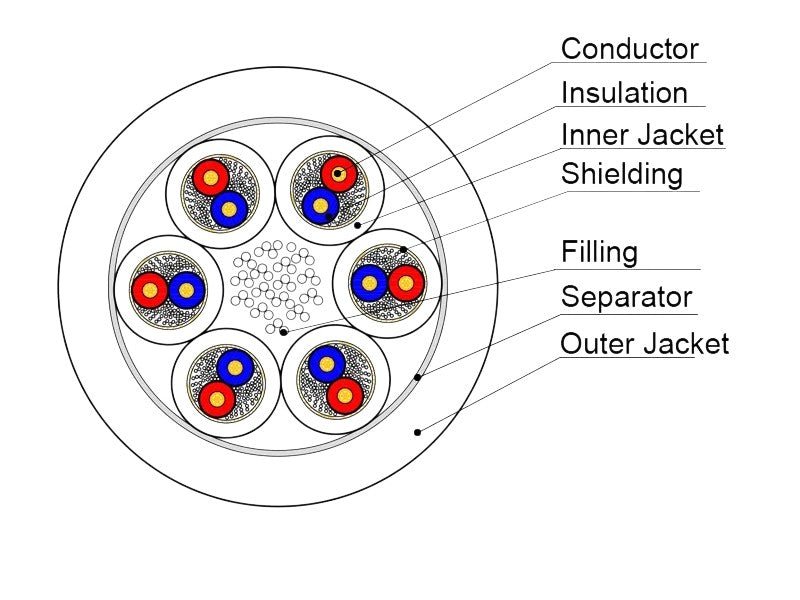

Specifications:
| Construction: | Electrical characteristics | |||
| Type of cable | 6-way Multicore audio frequency control cable | Conductor resistance-100M | ≤ 12 ohm | |
| Conductor material | Bare stranded copper | Capacity (C/C) ＠ 1kHz | 165 pF/m | |
| Structure of conductor | 20 x 0.1mm, 0.16 mm2, 25 AWG | Capacity (C/S) ＠ 1kHz | 175 pF/m | |
| Insulation | 2pcs, PE, Red / Blue | Mechanical characteristics | ||
| Conductor twisting | Yes | Temperature range | -20 °C to +70 °C | |
| Shielding | 45 x 0.1mm BC spiral | Bending radius | 10 x outer diameter | |
| Inner Jacket | PVC, Black | |||
| Inner Assembly | 6 pair twisted in layter | |||
| Outer Assembly | Cotton filler, Textile fleece separator | |||
| Outer jacket | PVC, Black, Ø12.0 | |||
| Weight Per Meter | 180g | |||
