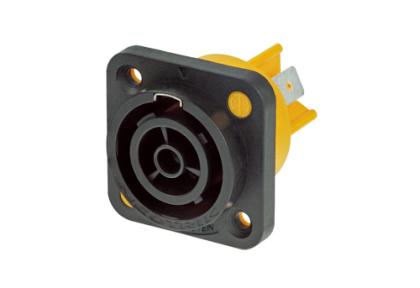

Neutrik - NAC3FPX - Appliance Outlet Connector Chassis Mount

by Neutrik
$19.99
SKU NAC3FPX

Appliance outlet connector, 1/4'' flat tab terminals

The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits

Appliance outlet

  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • ENEC certified according to IEC 60320
  • UL recognized components
  • IP65 ingress protection in mated condition and unmated in combination with SCNAC-FPX

Technical Information

Product
Title NAC3FPX
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test)
Number of electronical contacts 2 + PE
Rated current per contact 16 A rms (USA: 20 A)
Rated voltage 250 V ac
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 V-0
Temperature range - 30 °C - +80 °C
