Cable Techniques - Low Profile Right Angle Mini XLR - 3 Pin Male.
LPS Series Low-Profile Right Angle TA3M "Mini XLR" 3-pin Male Connector with outlet from either 0° or 180° via the release button, Adjustable Side-exit. Suggested Use: Perfect for audio and microphone cables into small-format video cameras like Blackmagic Pocket Cinema and Canon EOS C70.
Using the same concept as our LoPro XLR connectors, mini set-screws lock down the color cap securely and allow for degree of outlet adjustment. The cable outlet has a 60° adjustment range for maximum flexibility.

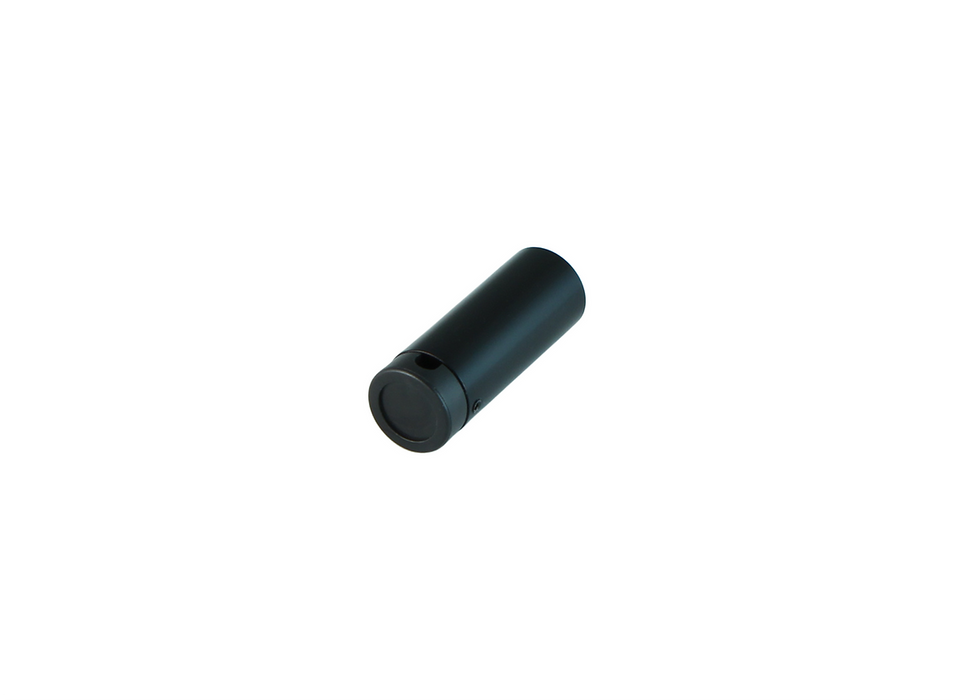

Two Cap Versions: Standard cap accepts cable diameters up to 3.2mm and the new Large cap accepts cables up to 5.0mm. Can be color-coded with a choice of 10 color caps or can be color-coded with a Black cap and our Color Polydomes - sold separately.
Compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031 and W2697and Sommer Cable Isopod SO-F22.
Cable Outlet: up to 3.2mm or 5.0mm
Low-Profile Right Angle
Angle Adjust around 0° or 180°
Weight: 0.4 oz
Dimensions: 10mm x 25mm
Grub Screw Hex Head Size: 0.9mm
