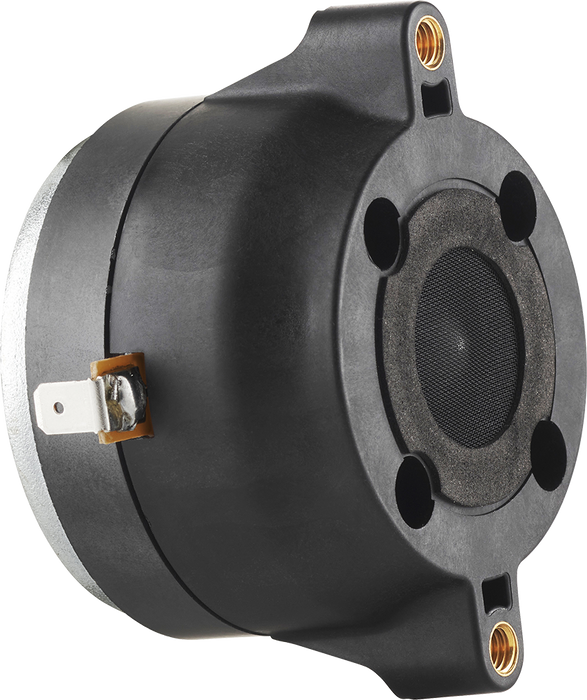

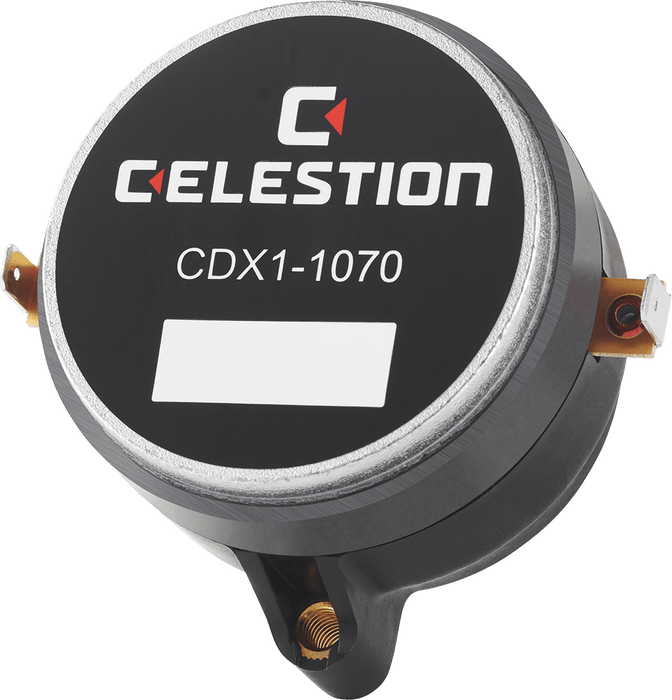

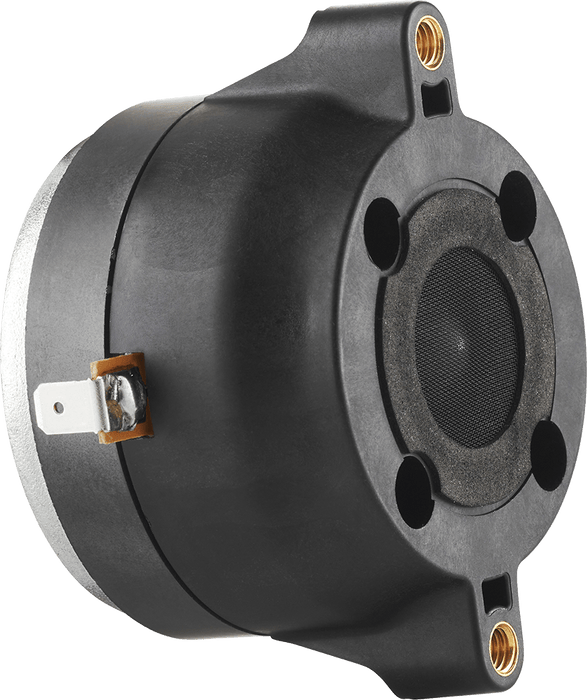

Celestion - CDX1-1070 - 1-Inch Exit Ferrite Magnet Compression Driver

SKU CDX1-1070

1-inch exit ferrite magnet compression driver.

  • Single piece PETP diaphragm and surround
  • 2,200 Hz recommended min. crossover freq (12dB/oct)

General Specifications

Power rating1 12w
Continuous power rating2 24W
Nominal impedance 8?
Sensitivity3 106dB
Frequency range 1500-20,000Hz
Recommended min. crossover (12dB/oct) 2,200Hz
Voice coil diameter 25mm / 1in
Voice coil material Copper clad aluminium
Magnet type Ferrite
Diaphragm material PETP film
Surround material PETP film


Mounting Information

Width 70mm / 2.8in
Depth 50mm/2in
Weight 0.7kg / 1.5lb
Fitting Bolt (2 x M6 holes on 76mm/3in PCD)
Throat exit 25.0mm/1in
