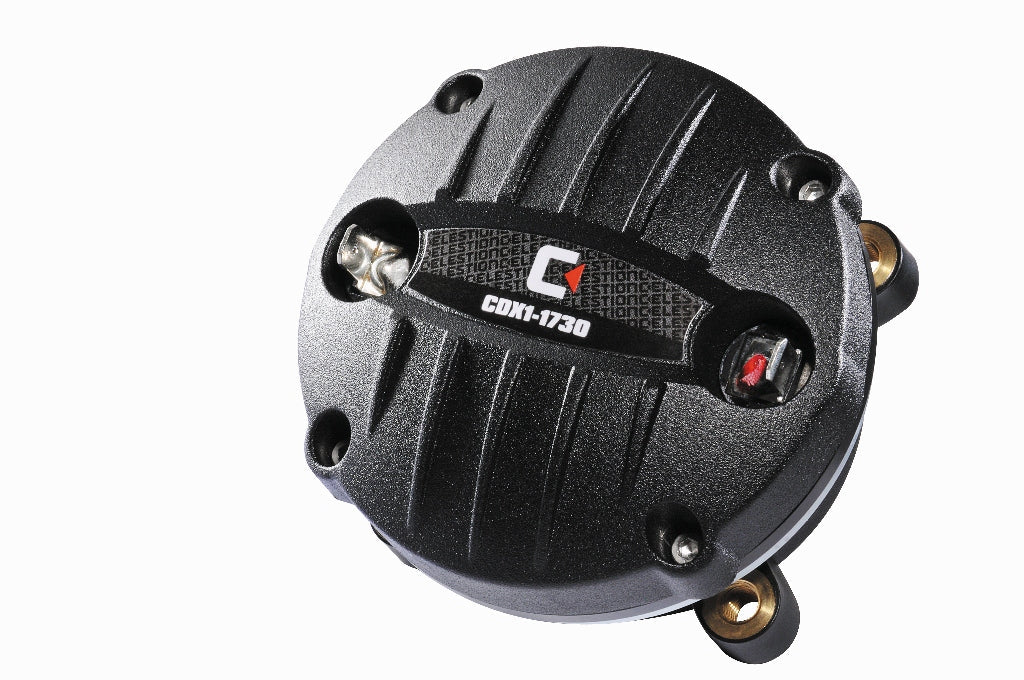

Celestion - CDX1-1730

SKU CDX1-1730
  • 2,200Hz recommended min. crossover freq (12dB/oct)
  • Single piece PETP film diaphragm and surround
  • Sound Castle diaphragm assembly
  • Flange (CDX1 - 1730) and screw (CDX1 - 1731 fitting versions available

General Specifications

Power rating1 ?40Wrms
Continuous power rating2 80W
Nominal impedance 8?
Sensitivity3 110dB
Frequency range 1200-20,000Hz
Recommended min. crossover (12dB/oct) 2,200Hz
Voice coil diameter 44mm/1.75in
Voice coil material Edgewound copper clad aluminium
Magnet type Neodymium
Diaphragm material PETP film
Surround material PETP film


Mounting Information

Maximum width ?88.5mm/3.48in
Minimum width 82.0mm/3.23in
Depth 55mm/2.2in
Weight 0.65kg/1.4lb
Fitting Flange (4 x M6 holes on 76mm/3in PCD)
Throat exit 25.0mm/1in
