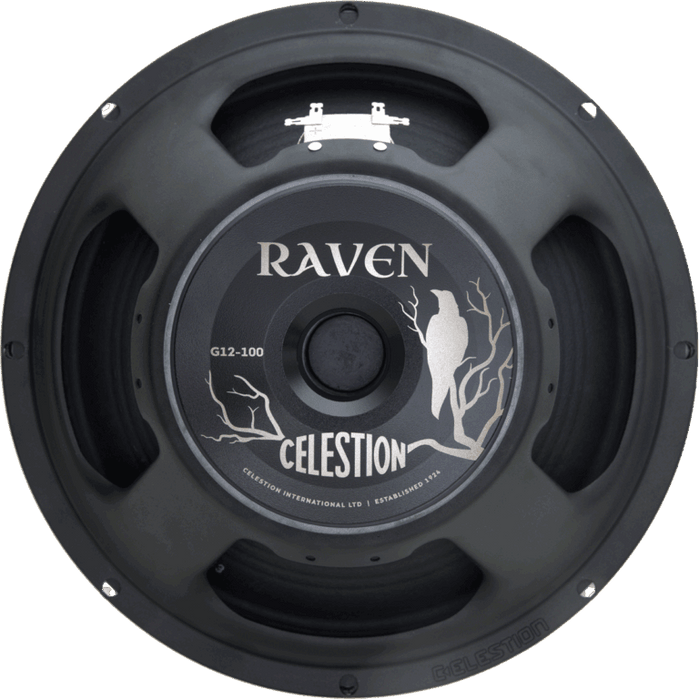

Boasting a formidable 100W power rating, and a new-design, low-weight ceramic magnet structure, the Raven is engineered to handle crushing lead lines and seismic low-end riff-work. Beyond the raw power lies a truly premium tone, delivering a detailed mid-range punch, brooding highs, and a firm, authoritative low end.
The Raven is defined by its ability to deliver tons of tone, while remaining light as a feather. At the heart of this capability is a reimagined ceramic magnet assembly; a unique new motor structure that massively lowers the speaker’s overall weight—to just 2.5 kg (5.5 lb)—without compromising the huge magnetic forces required to power such a gargantuan tone machine.
General Specifications
| Nominal diameter | 12", 305mm |
| Power rating | 100W |
| Nominal impedance | 8Ω or 16Ω |
| Sensitivity | 100dB |
| Chassis type | Pressed steel |
| Voice coil diameter | 2", 50mm |
| Voice coil material | Round copper |
| Magnet type | Ceramic |
| Magnet Weight | 0.85kg |
| Frequency range | 70-5000Hz |
| Resonance frequency, Fs | 72Hz |
Mounting Information
| Cut-out diameter | 11.1", 283mm |
| Diameter | 12.2", 309mm |
| Magnet structure diameter | 5.28", 134mm |
| Mounting slot dimensions | 0.31",7.9mm |
| Mounting slot PCD | 11.7", 297mm |
| Number of mounting slots | 8 |
| Overall depth | 4.85", 123.3mm |
| Unit weight | 5.5lb, 2.5kg |
