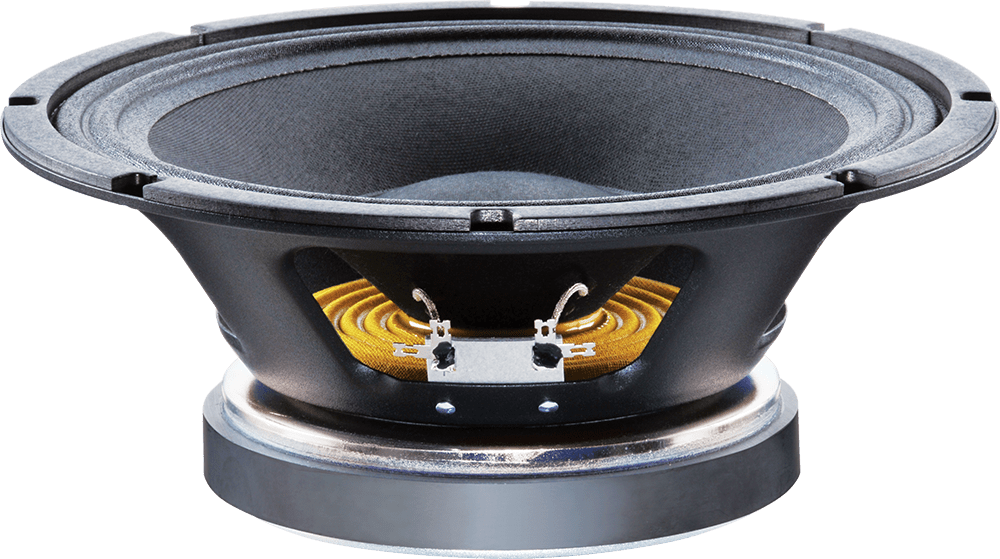

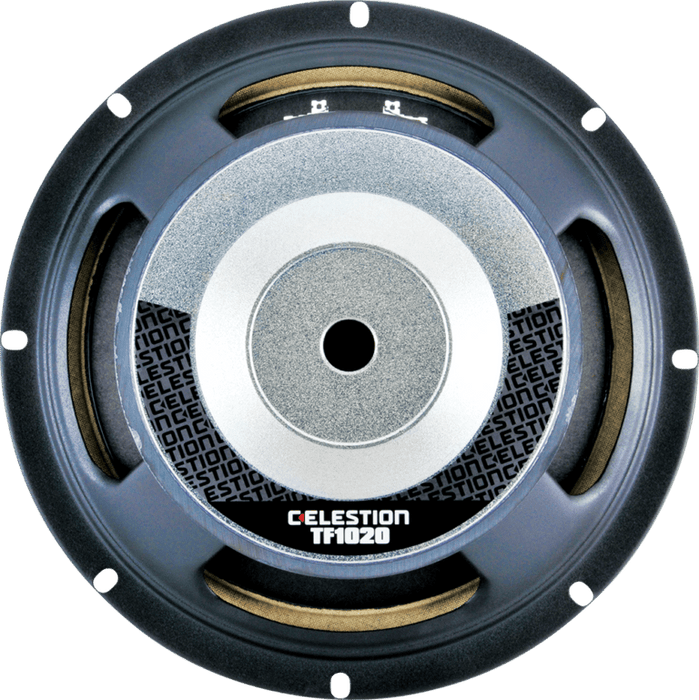

10in mid bass driver provides 97dB sensitivity and 150Wrms
General Specifications:
|
Nominal Diameter |
254mm/10in |
|
Power Rating |
150W |
|
Continuous Power Rating |
300W |
| Sensitivity | 97dB |
|
Rated Impedance |
8? |
|
Frequency Range |
60Hz-6000Hz |
|
Voice Coil Diameter |
50mm |
|
Chassis Type |
Pressed Steel |
| Magnet Type | Ferrite |
| Magnet Weight | 1.2kg/42oz |
| Voice Coil Material | Round Copper |
| Former Material | Polyimide |
|
Cone Material |
Kevlar loaded paper |
| Surround Material | Cloth-sealed |
|
Suspension |
Single |
|
Xmax |
2mm |
| Gap Depth | 8mm |
| Voice Coil Winding Width | 12mm |
| Additional Impedances | 4 |
Mounting Information:
| Over All Diameter (mm) | 256mm |
| Cut-out diameter | 229mm |
|
Mounting Slot Dimensions |
8mm x 6mm |
| Number of mounting slots | 4 |
| Overall depth | 110mm |
| Unit weight | 9.7kg |
| Mounting Slot PCD | 245mm |
