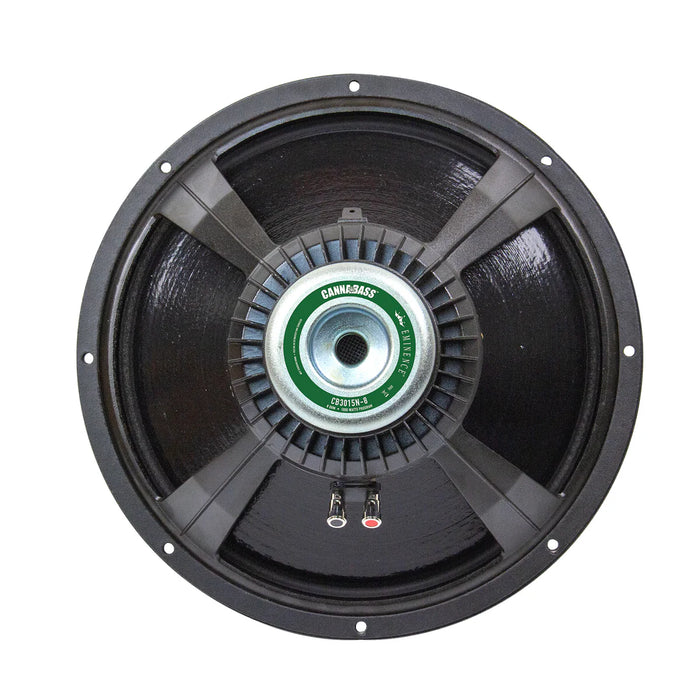

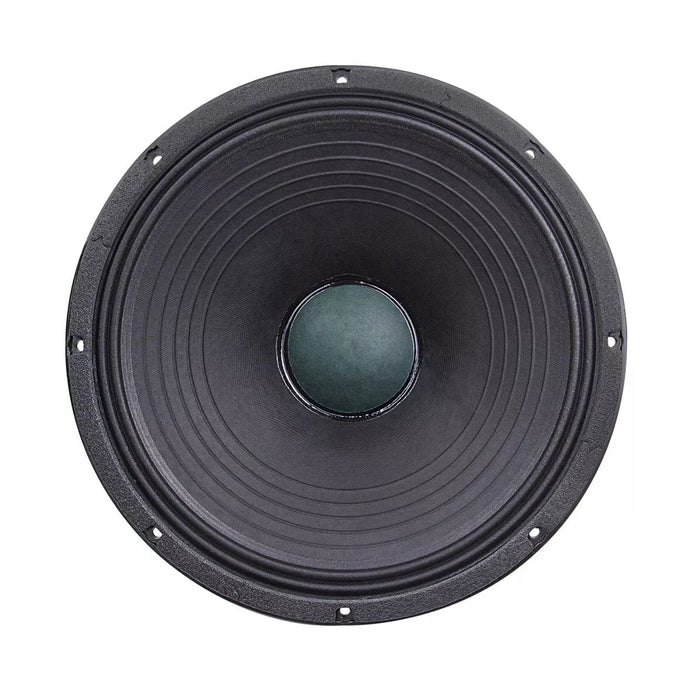

Eminence - Cannabass CB3015N-8 - 15"

Currently Out Of Stock
$832.99
SKU CB3015N-8

Eminence is proud to introduce the CannaBass™ CB3015N-8. Engineered with the modern player in mind, the CB3015N-8 features organic and natural damping properties delivering a cleaner, more authentic sound through a unique combination of cutting-edge speaker technology, the superior qualities of a hemp dust cap, and a proprietary CBD coating.

The CannaBass™ CB3015N-8’s black paper cone features a CBD coating on the back that supplies a damping quality and enhances the smooth frequency response. The natural material in the green hemp dust cap makes it an eco-friendly choice and provides additional natural damping for the CB3015N-8, creating a more pristine sound.

The CannaBass™ CB3015N-8 is ideal for players who demand the best sound quality. Featuring a high-temperature Neo magnet, the CannaBass™ CB3010N-8 is powerful and lightweight yet durable, offering a steady flux field that ensures high-quality sound. With a 7.22mm xMax and 1000-watt music power rating (500W EIA), the CB3015N-8 is expertly voiced to provide a loud, low distortion, low-frequency range. It delivers a powerful, high-quality sound that is perfect for modern musicians. Additionally, our three-inch inside/outside wound voice coil on a vented fiberglass bobbin provides lower power compression and distortion for a more accurate and authentic sound.

Specifications:

Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 1000 W
Watts 500 W
Resonance 40.67 Hz
Usable Frequency Range 40 Hz - 3.7 kHz
Sensitivity* 98.1 dB
Magnet Weight 11 oz.
Gap Height 0.365", 9.27 mm
Voice Coil Diameter 3", 76.2 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 40.67 Hz
DC Resistance (Re) 5.50 Ω
Coil Inductance (Le) 0.59m H
Mechanical Q (Qms) 3.6
Electromagnetic Q (Qes) 0.43
Total Q (Qts) 0.39
Compliance Equivalent Volume (Vas) 162.87 liters / 5.75 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 618.25 cc
Mechanical Compliance of Suspension (Cms) 0.16 mm/N
BL Product (BL) 17.76 T-M
Diaphragm Mass Inc. Airload (MMs) 96.75 grams
Efficiency Bandwidth Product (EBP) 94.34
Maximum Linear Excursion (Xmax) 7.22 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 14.2 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Not Recommended
Vented Acceptable
Driver Volume Displaced 155.52 cu.in. / 2.56 liters
Overall Diameter 15.32", 389.13 mm
Baffle Hole Diameter 14.03", 356.36 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.112mm
Mounting Holes B.C.D. 14.56", 389.82mm
Depth 7.1", 180.34 mm
Net Weight 8.2 lbs, 3.72 kg
Shipping Weight 10.4 lbs, 4.72 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Inside/Outside copper voice coil
Coil Former Fiberglass former
Magnet Composition Neodymium magnet
Core Details Vented core

Basket Materials Cast Aluminum Basket
Cone Composition CBD treated paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Hempylene paper dustcap
