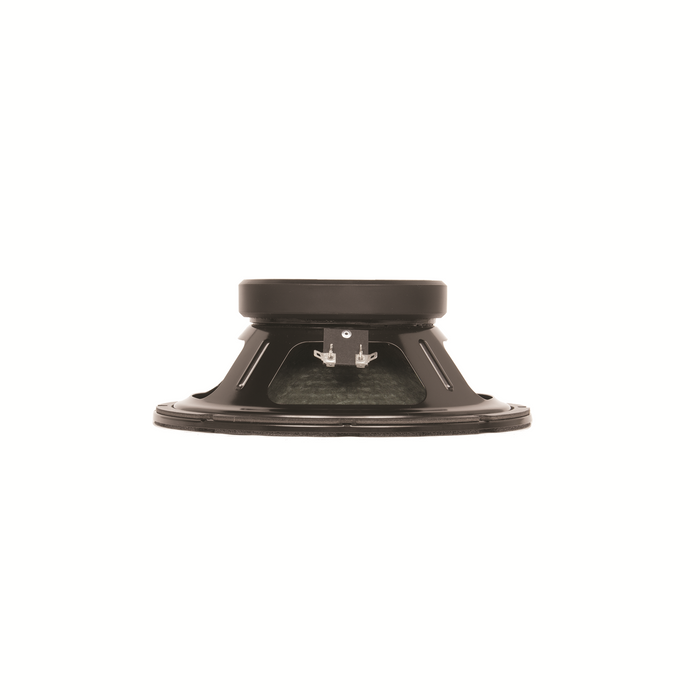

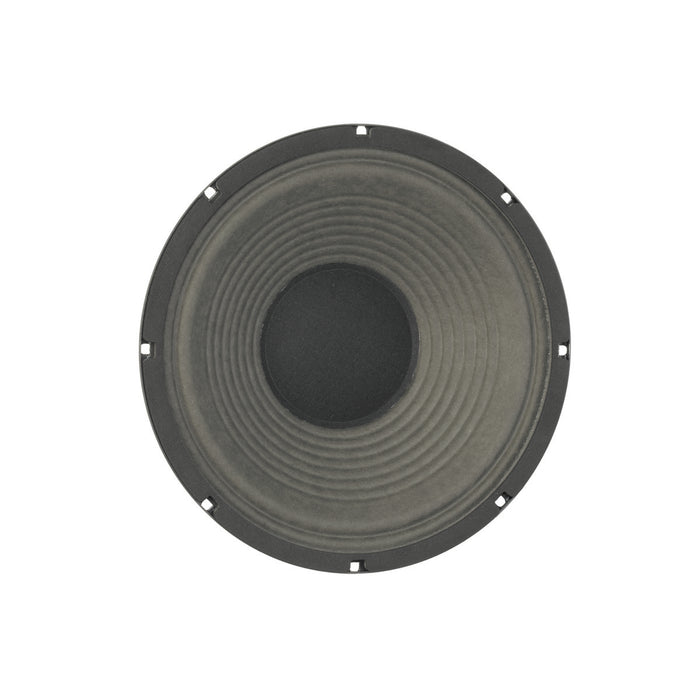

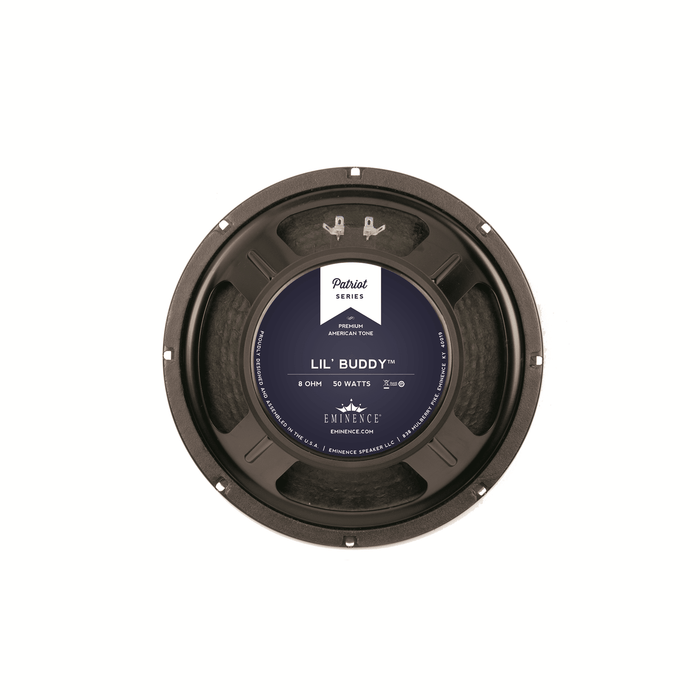

Eminence - LIL' BUDDY

$310.99
SKU LIL' BUDDY

The Eminence Lil' Buddy guitar speaker lets you push the limits. Clean and full, and slow to break-up. Crunchy when driven. A much smoother and less brittle tone than many 10 inch guitar speakers.

SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 ?
Power Rating*
Program Power N/A
Watts 50 W
Resonance 149 Hz
Usable Frequency Range 80 Hz - 5 kHz
Sensitivity* 98.8 dB
Magnet Weight 30 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 149 Hz
DC Resistance (Re) 6.31 ?
Coil Inductance (Le) 0.46m H
Mechanical Q (Qms) 9.06
Electromagnetic Q (Qes) 0.93
Total Q (Qts) 0.84
Compliance Equivalent Volume (Vas) 10 liters / 0.35 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 29.3 cc
Mechanical Compliance of Suspension (Cms) 0.05 mm/N
BL Product (BL) 11.7 T-M
Diaphragm Mass Inc. Airload (MMs) 22 grams
Efficiency Bandwidth Product (EBP) 160
Maximum Linear Excursion (Xmax) 0.8 mm
Surface Area of Cone (Sd) 366.1 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.039 cu.ft. / 1.1 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 4.3", 109.2 mm
Net Weight 6.3 lbs, 2.86 kg
Shipping Weight 7.4 lbs, 3.36 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Paper former
Magnet Composition Ferrite magnet
Core Details Non-vented core
? ?
Basket Materials Pressed steel basket
Cone Composition Hemp cone?
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap
