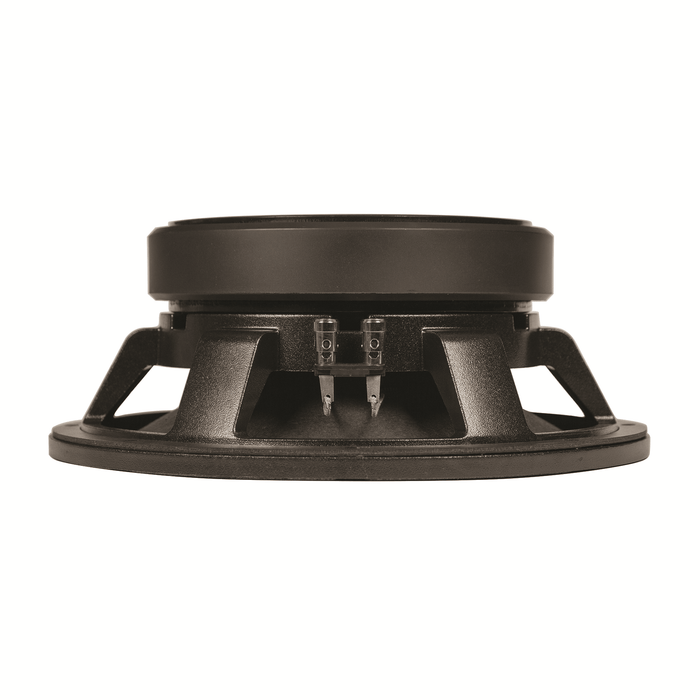

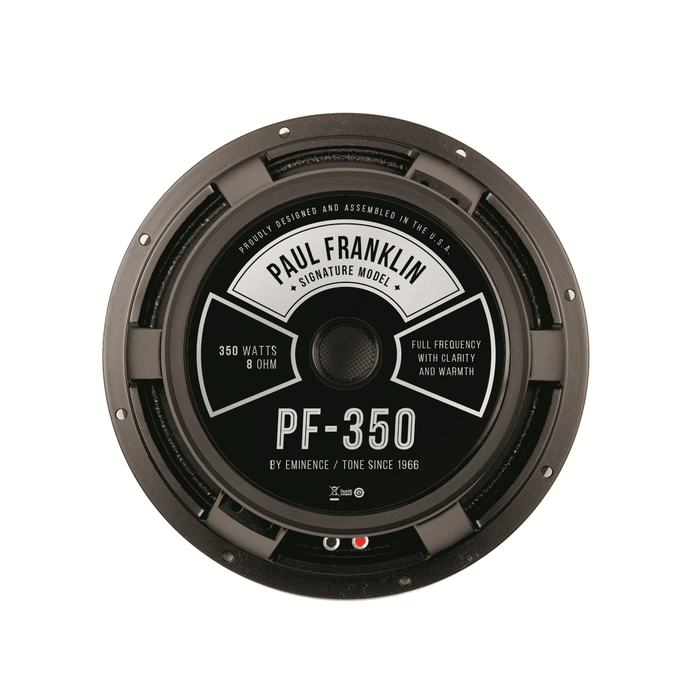

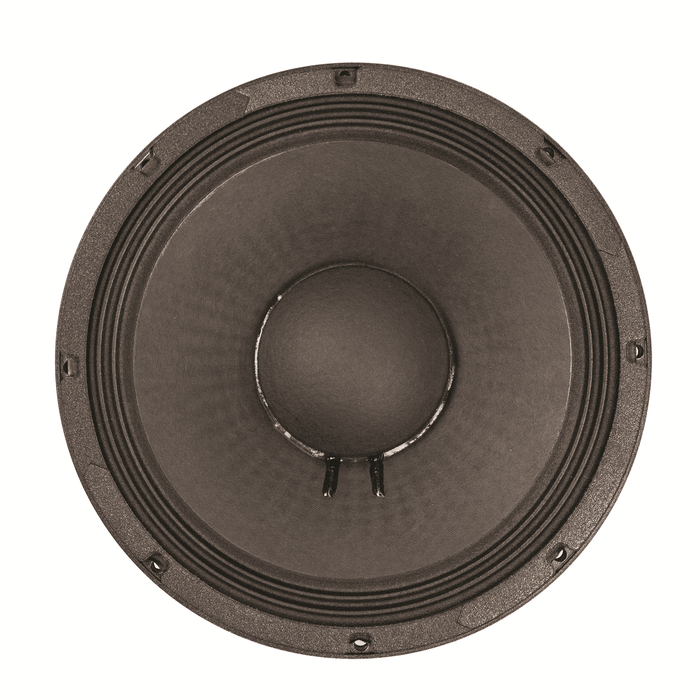

Offering complete tonal balance from top to bottom, this attack-sensitive and powerful 12 inch model was co-developed with veteran session and touring pro Paul Franklin. With headroom to spare, the PF-350?s tone transfers from low volume to very loud with warmth and clarity, making it ideal for pedal steelers and 6-stringers alike.
SPECIFICATION | |
Nominal Basket Diameter | 12", 305 mm |
Nominal Impedance* | 8?? |
Power Rating* | |
Program Power | N/A |
Watts | 350 W |
Resonance | 63 Hz |
Usable Frequency Range | 65 Hz - 3.5 kHz |
Sensitivity* | 99 dB |
Magnet Weight | 109 oz. |
Gap Height | 0.285", 7.2 mm |
Voice Coil Diameter | 4", 102 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 63 Hz |
DC Resistance (Re) | 7.41?? |
Coil Inductance (Le) | 0.4m H |
Mechanical Q (Qms) | 8.48 |
Electromagnetic Q (Qes) | 0.44 |
Total Q (Qts) | 0.42 |
Compliance Equivalent Volume (Vas) | 61.94 liters / 2.19 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 0 cc |
Mechanical Compliance of Suspension (Cms) | 0.15 mm/N |
BL Product (BL) | 16.73 T-M |
Diaphragm Mass Inc. Airload (MMs) | 42 grams |
Efficiency Bandwidth Product (EBP) | 142 |
Maximum Linear Excursion (Xmax) | 0.79 mm |
Surface Area of Cone (Sd) | 545.4 cm2 |
Maximum Mechanical Limit (Xlim) | 0 mm |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | N/a |
Vented | N/a |
Driver Volume Displaced | 0.102 cu.ft. / 2.9 liters |
Overall Diameter | 12.29", 312.2 mm |
Baffle Hole Diameter | 0", 0 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.27", 6.9mm |
Mounting Holes B.C.D. | 11.69", 296.9mm |
Depth | 5", 127 mm |
Net Weight | 21.5 lbs, 9.75 kg |
Shipping Weight | 23.7 lbs, 10.75 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Edge Wound Aluminum |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | Vented core |
Basket Materials | Die-cast aluminum basket |
Cone Composition | |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Paper dust cap |
