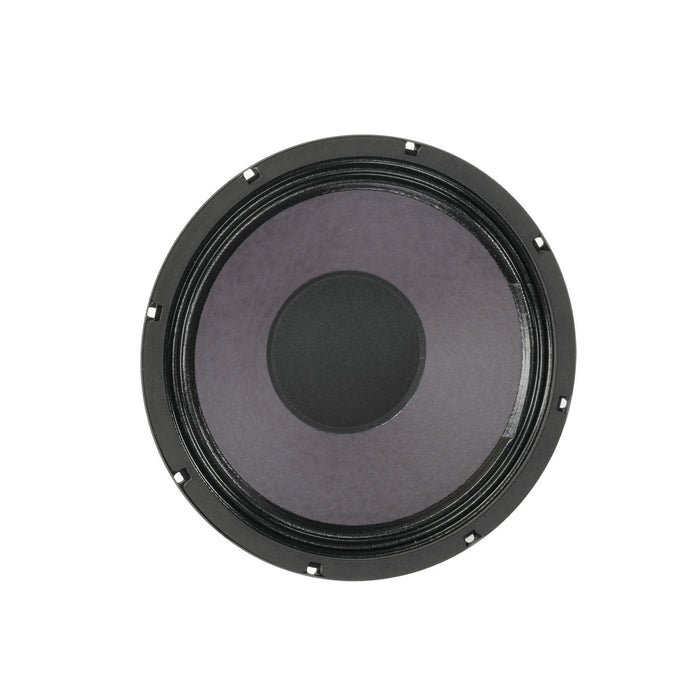

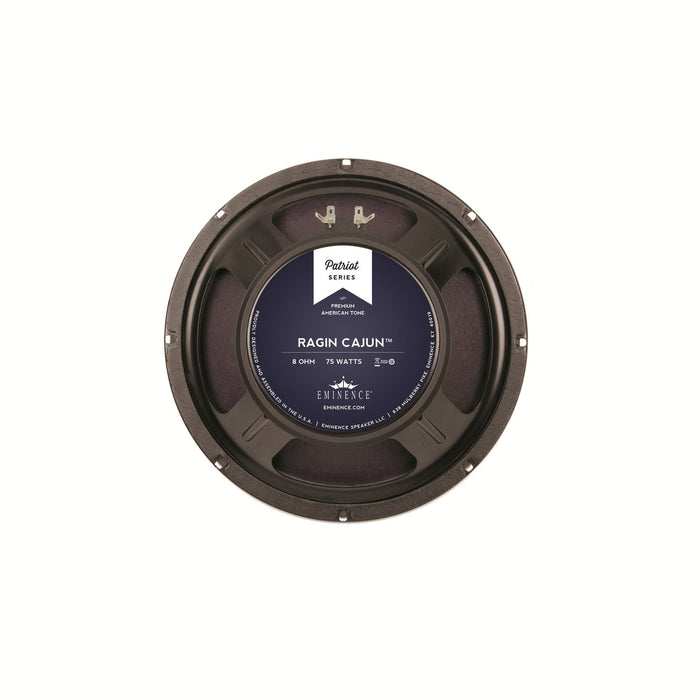

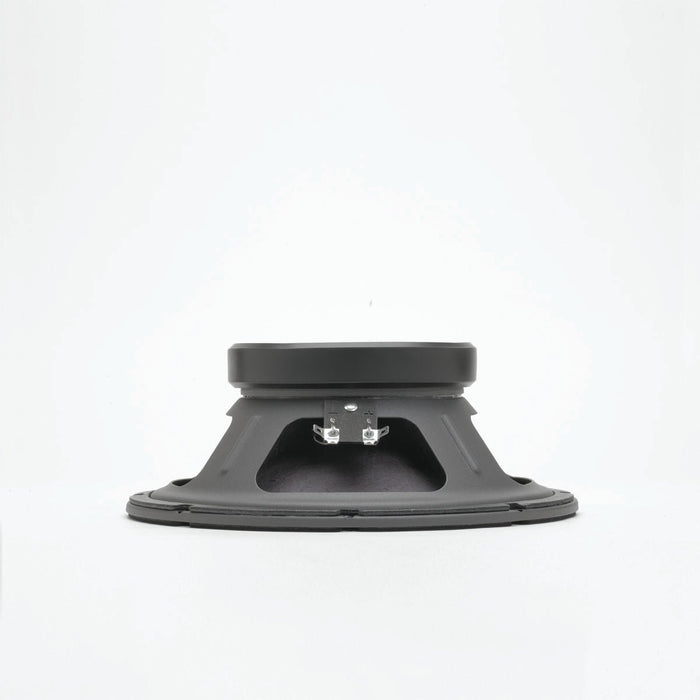

The Eminence Ragin Cajun guitar speaker puts you in control to be heard loud and clear. Very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.
SPECIFICATION | |
Nominal Basket Diameter | 10", 254 mm |
Nominal Impedance* | 8 Ω Or 16 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 75 W |
Resonance | 84 Hz |

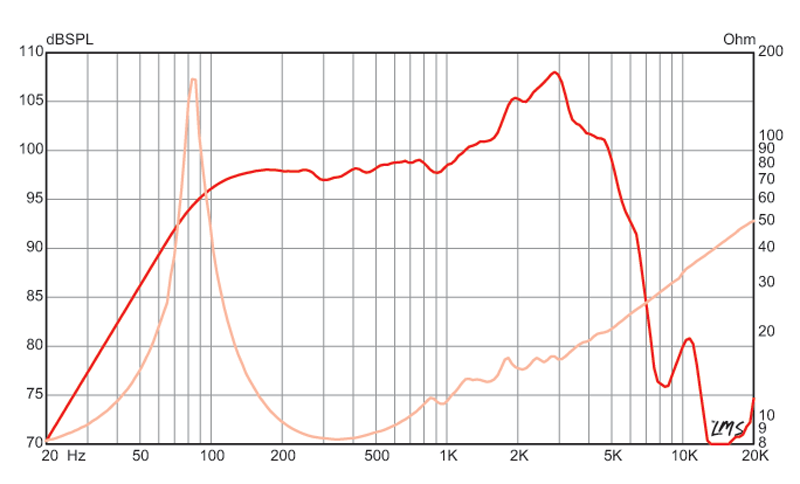

Usable Frequency Range | 80 Hz - 5 kHz |
Sensitivity* | 100.5 dB |
Magnet Weight | 30 oz. |
Gap Height | 0.312", 7.9 mm |
Voice Coil Diameter | 1.5", 38 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 84 Hz |
DC Resistance (Re) | 7.01 Ω |
Coil Inductance (Le) | 0.38m H |
Mechanical Q (Qms) | 11.42 |
Electromagnetic Q (Qes) | 0.54 |
Total Q (Qts) | 0.51 |
Compliance Equivalent Volume (Vas) | 34.1 liters / 1.2 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 17.6 cc |
Mechanical Compliance of Suspension (Cms) | 0.18 mm/N |
BL Product (BL) | 11.8 T-M |
Diaphragm Mass Inc. Airload (MMs) | 20 grams |
Efficiency Bandwidth Product (EBP) | 156 |
Maximum Linear Excursion (Xmax) | 0.48 mm |
Surface Area of Cone (Sd) | 366.1 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | Acceptable |
Vented | Acceptable |
Driver Volume Displaced | 0.039 cu.ft. / 1.1 liters |
Overall Diameter | 10.11", 256.8 mm |
Baffle Hole Diameter | 9.13", 231.9 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.23", 5.8mm |
Mounting Holes B.C.D. | 9.6", 243.8mm |
Depth | 3.8", 96.5 mm |
Net Weight | 6.4 lbs, 2.9 kg |
Shipping Weight | 8.2 lbs, 3.72 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | Non-vented core |
Basket Materials | Pressed steel basket |
Cone Composition | Paper cone |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Zurette dust cap |
