K&M - 24740-000-55 - Wind Up Tripod - 4m Height.

SKU 24740-000-55

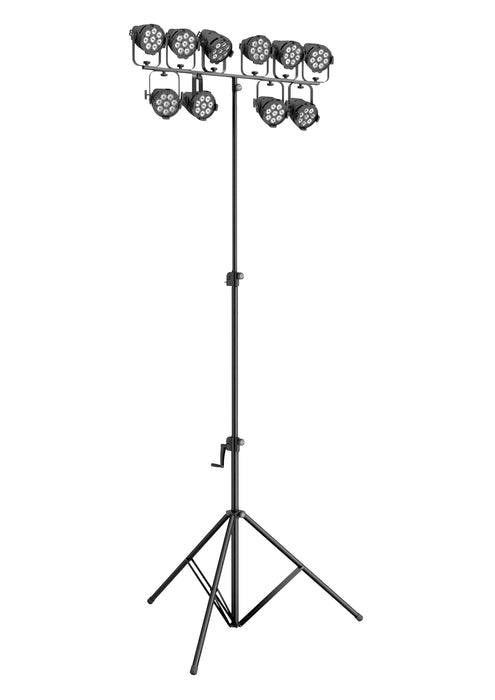

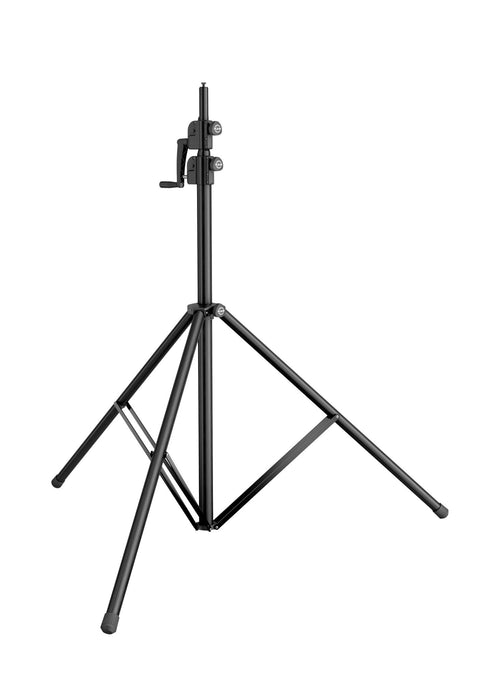

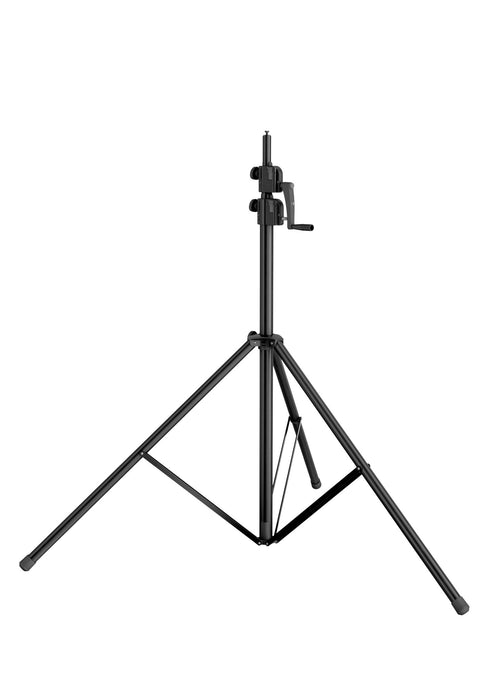

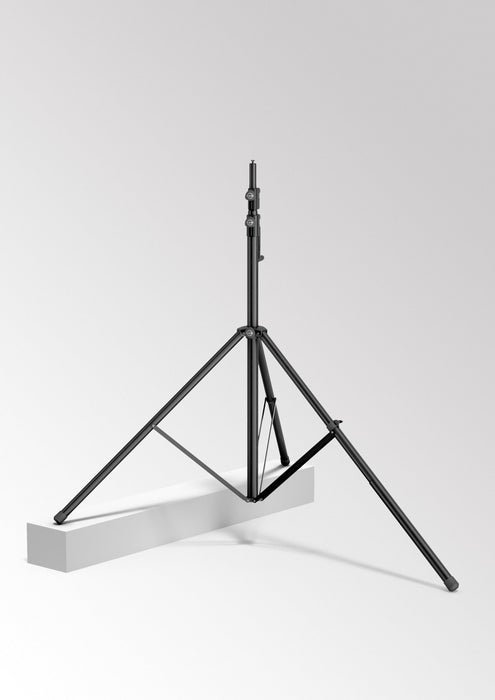

Professional lighting and speaker stand with a new type of double crank mechanism. The twice extendable tube combination covers an application range from 1,715 to 4,000 mm in height. The load is raised and lowered in a user-friendly, safe and reliable manner using two separate crank gears. The integrated »Auto Lock« system prevents the load from suddenly dropping by an automatic locking mechanism. The crank can also be removed to prevent unauthorized use. Since no cables are used, the tripod works completely maintenance-free. The focus of this robust tripod is primarily on stability and security against tilting, so that a load of 40 kg can be realized without any problems. The compact transport dimensions are 1,695 x 200 x 165 mm and the weight is around 14.2 kg.


number of feet: 3
Installation dimension ø: 2000mm
Execution: black
Special feature: steel extension tubes; an uncontrolled return is prevented by the crank gear and push button; Locking screw provides additional support; Die-cast zinc fasteners
EAN: 4016842117079
foot construction: Leg tubes with double support struts
Weight: 14.2kg
Size folded: 1,695 x 200 x 165mm
Height: from 1,715 to 4,000 mm

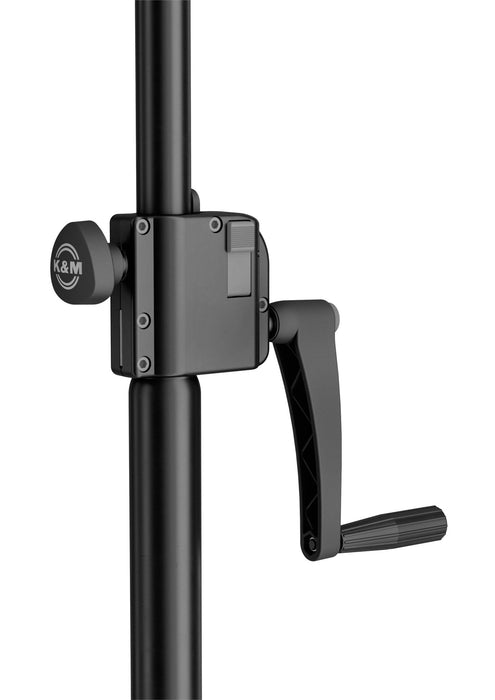

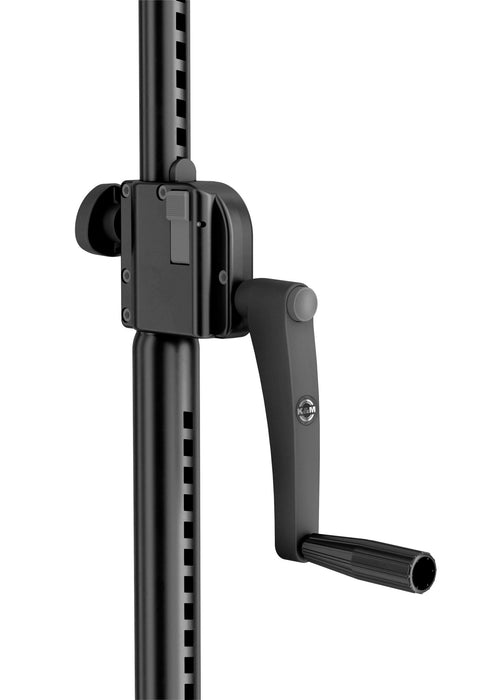

Height adjustment: Crank with push button and locking screw
Material: aluminum
Product category: star line
Pipe end(s): ø 35 mm, integrated M10 threaded bush for crossbeams
tube combination: 2-fold extendable
Load capacity*: 40kg

* With a centric load, on a horizontal surface and without lateral forces (wind, impacts, etc.)
