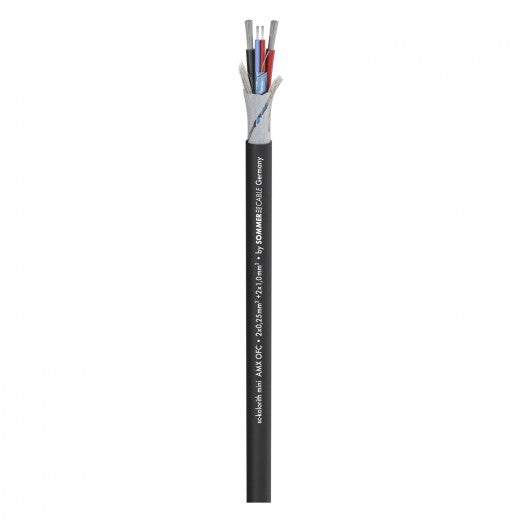

Sommer Cable - Kolorith 1 Digital 110 ohm AES/EBU Control Cable

$16.99
SKU 500-0101-1
***Price Is Per Meter***

It brings colour to your life...

for the SC-KOLORITH is the perfect cable for use with low-voltage loudspeaker products from MEYER SOUND, building installation systems on BUS basis as well as for connecting colour changers. The SC-KOLORITH transmits data and power supply in one line. The pairwise stranded data line (wave impedance 110 Ω) is shielded and, due to the use of fine, tinned 0.10 mm single litz wires, guarantees high bending cycles. With 1 mm² the two voltage supply wires are ideally dimensioned for the transmission of voltages up to 50 V with low power losses. The SC-KOLORITH MINI fits perfectly into the EN3 connector from Switchcraft.

Advantages:

  • Connection of building services engineering systems over distances of up to 1000 m
  • Also suitable as audio/speaker hybrid cable
  • Very compact, flexible and easy to use

Application:

  • For connecting colour changers
  • For installation purposes (Studio, illumination, building services engineering)
  • Outdoor installation applications
  • For connecting low-voltage / intelligent DC products made by Meyer Sound

Specifications:

Article number 500-0101-1
Name SC-Kolorith 1
EAN 4049371000543
Properties OFC oxygen free copper
Properties Analog
Properties Digital 110 Ω AES / EBU
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application area Installation
Application BUS Control cable
Colour black
Colour detailed black
Signal transmission symmetrical
Construction [2LIY2,0mm²+(2LIY0,38mm²)(ST)]Y
Construction (audio) (2LIY0,38mm²)(ST)
Construction (power) 2LIY2,0mm²
Jacket material PVC
Jacket Ø [mm] 7,40
Jacket Ø (audio) [mm] 2,50
Number of Channels (audio) 1
Number of Channels (power) 1
Inner conductor (audio) 2
Inner conductor (power) 2
Inner conductor (audio) [mm²] 0,38
Inner conductor (power) [mm²] 2,00
Inner conductor Ø (audio) [mm] 0,67
Inner conductor Ø (power) [mm] 1,60
AWG (audio) 21
AWG (power) 14
Shielding (audio) AL / PT foil + filler strand
Shielding factor [%] 100
Copper strands (audio) 45
Copper strand Ø (audio) [mm] 0,10
Wire insulation material (audio) PP
Conductor insulation Ø [mm] 0,00
Conductor insulation Ø (audio) [mm] 1,30
Weight per 1 m [g] 87
UV-resistant yes
Fire load per m [kWh] 0,32
Style variant round
Packing bulk stock
Temperature min. [°C] -25
Temperature max. [°C] 70
Width [mm] 7,4
Height [mm] 7,4
Capac. cond./cond. per 1 m (audio) [pF] 65
Capacity wire/wire at 1 ft. (audio) [pF] 19,812
Capac. cond./shield. per 1 m (audio) [pF] 104
Capacity wire/electic screen at 1 ft. (audio) [pF] 31,6992
Impedance [Ω] 0
Surge impedance (audio) [Ω] 110
Conductor resistance per 1 km [Ω] 0
Conductor resistance per 1000 ft. [Ω] 0
Conductor resistance per 1 km (audio) [Ω] 60
Conductor resistance per 1000 ft. (audio) [Ω] 18,288
Shield. resistance per 1 km [Ω] 25
Shield. resistance per 1000 ft. [Ω] 7,62
BPVo-Euroclass Fca
