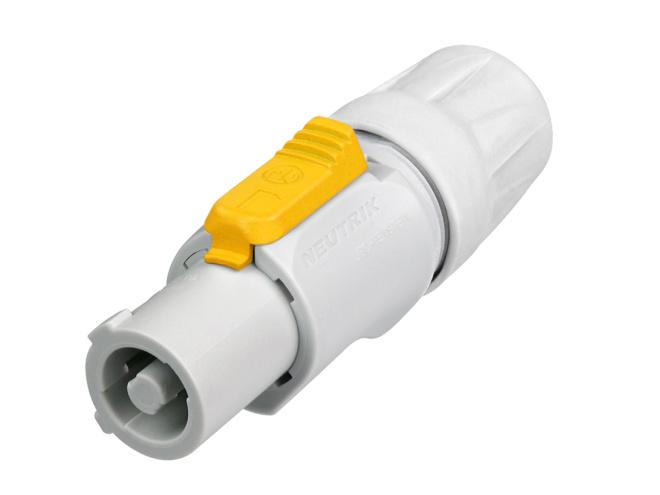

Neutrik - NAC3FCB - Power Out Cord Connector

by Neutrik
$18.99

Lockable cable connector, power-out, screw terminals, grey

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!



Features & Benefits

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • Unique Neutrik chuck type strain relief
  • Improved kink protection by two-component bushing
  • UL, cUL recognized components
    VDE certified
    SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Information

Product
Title NAC3FCB
Gender female
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts 2 + PE
Rated current per contact 20 A rms
Rated voltage 250 V ac
Mechanical
Cable O.D. 6 - 15 mm (1)
Lifetime > 1000 mating cycles
Wiresize 2,5 mm²
Wiresize 12 AWG
Locking device Quick Lock
(1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Polyamide (PA 6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
