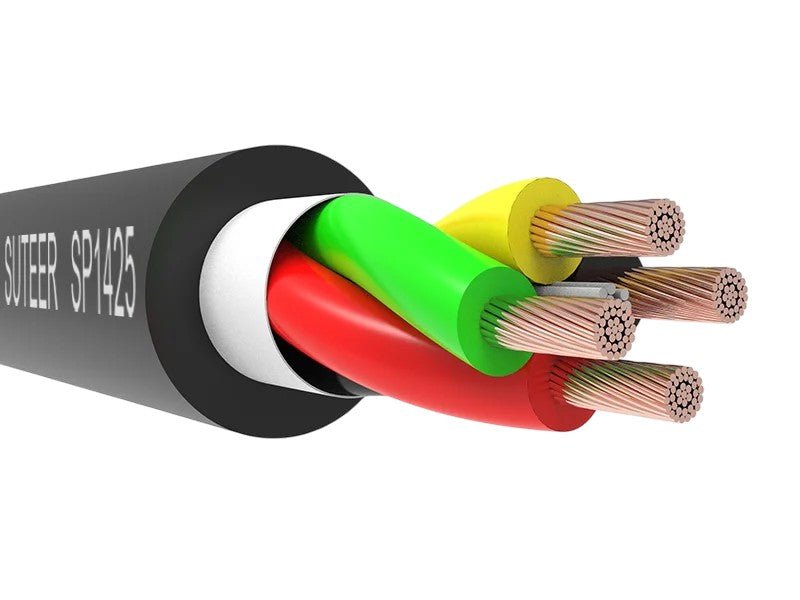

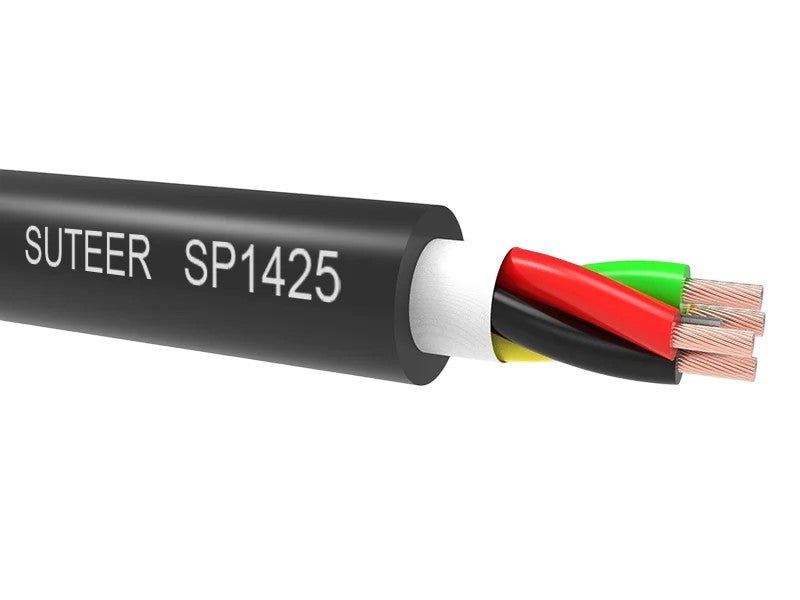

ProLink - SP1425 4 cores 2.5mm Speaker Cable Wire - 100% Stranded OFC Copper
by Prolink
Currently Out Of Stock
$12.99
SKU PL-C-SP1425
The SP1425 is high-quality loudspeaker cable consisting of 4-core twist 2.5mm2 (13AWG) conductors, Each conductor is fitted with a highly flexible jacket made of PVC. It is suitable for use with a power amplifier providing up to 1200W of power.
This speaker wire can be used to attach an input device with an output device specially speakers, make the electrical connection between loud speakers and audio amplifiers.
Features
- 13 AWG or 2.5 mm²
- Conductors / Cores: 4
- Stranded Oxygen-free copper (OFC)
- PVC insulation
- Ultra flexible PVC outer jacket
- 11 mm (Ø) outer diameter are available
Specifications
| Construction | Electrical characteristics | |||||
| Cable model | SP1425 | Conductor resistance-100M | ≤ 0.72 ohm | |||
| Type of cable | Speaker cable | Test Voltage (50 Hz,1 min) | 2000V | |||
| Conductor material | Bare stranded copper | Max.Operating Voltage | 300V | |||
| Structure of conductor | 80x 0.2mm | Mechanical characteristics | ||||
| Conductor section | 2.5 mm2 | Temperature range | fixed installation | -20 °C to +80 °C | ||
| American wire gauge | 13 AWG | flexible installation | -15 °C to +70 °C | |||
| Insulation material | PVC | Bending radius | fixed installation | 6 x outer diameter | ||
| Insulation color | Blue / Red / Black / White | flexible installation | 8 x outer diameter | |||
| Number of cores | 4 | |||||
| Core Arrangement | 4 cores twisted | |||||
| Outer Jacket | PVC, Black | |||||
| Outer Jacket O.D | 11.0 | |||||
