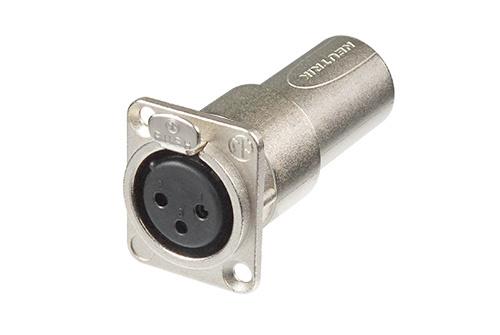

Neutrik - NA3FDM - XLR female-male feedthrough adapter for panel mount.

by Neutrik
$24.99

XLR female-male feedthrough adapter for panel mount.

Technical Information

Product
Title NA3FDM
Connection Type Adapter
Electrical
Capacitance between contacts 4 pF
Contact resistance 5 m
Dielectric strength 1,5 kVdc
Insulation resistance > 2 G (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force 20 N
Withdrawal force 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 2 m Ag over 2 m Ni
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
