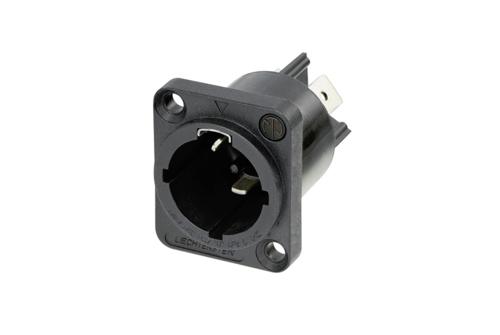

Neutrik - NAC3MPX-TOP - Appliance Inlet Chassis Mount.

by Neutrik
$12.70
SKU NAC3MPX-TOP

Appliance inlet connector, 1/4" flat tab terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits

  • Heavy duty sealed power connector for harsh and demanding environment

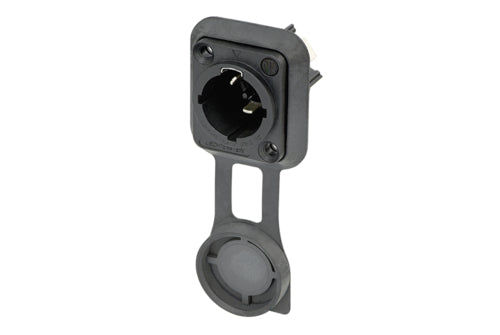

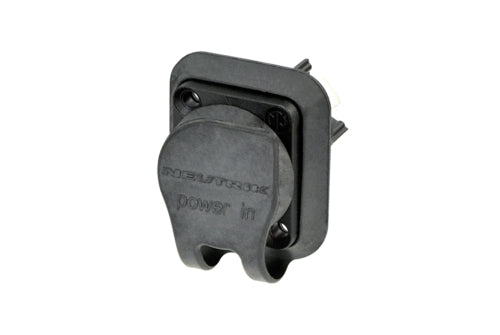

  • IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-MPX)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Technical Information

Product
Title NAC3MPX-TOP
Electrical
Contact resistance ? 3 m?
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 G? (after damp heat test)
Number of electronical contacts 2 + PE
Rated current per contact 16 A rms (USA: 20 A)
Rated voltage 250 V ac
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2.5 mm?
Wiresize 12 AWG
Material
Contact plating 2 ?m Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-MPX)
Temperature range - 30 ?C - +80 ?C
