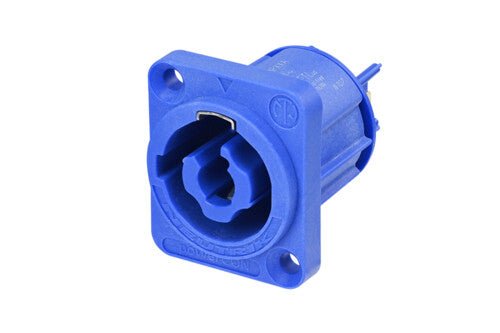

Neutrik - NAC3MPXXA - Power In Chassis Mount
SKU NAC3MPXXA
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.
Appliance inlet connector, 3/16" flat tab terminals, blue
The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
- Lockable single phase connector
- Drop-in replacement for NAC3MPA-1; mates to NAC3FCA cable connectors
- Certified according to IEC 60320-1 & UL 60320-1
- 3 contacts for line, neutral and premating safety ground
- Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
- Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Extremely robust and reliable
- IEC 62368-1 compliant
Technical Information
| Product |
|
| Title |
NAC3MPXXA |
| Gender |
male |
| Electrical |
|
| Contact resistance |
? 2 m? |
| Dielectric strength |
4 kVdc / 2.8 kVac |
| Insulation resistance |
> 10 G? (initial) |
| Number of electrical contacts |
2 + PE |
| Rating Europe |
EN 60320-1: 16 A 250 V AC |
|
EN 61984: 20 A 250 V AC |
| Rating USA |
UL 60320-1:20 A 127 V AC |
|
UL 1977: 20 A 250 V AC |
| Mechanical |
|
| Lifetime |
> 5000 mating cycles |
| Wiresize |
2,5 mm? |
| Wiresize |
12 AWG |
| Material |
|
| Contact plating |
Ag |
| Locking element |
Stainless steel |
| Shell |
Polyamide (PA 6.6) |
| Contacts |
Copper Alloy |
| Environmental |
|
| Flammability |
UL 94 V-0 |
| Protection class |
IP 20 |
| Temperature range |
-30 ?C to +80 ?C |
