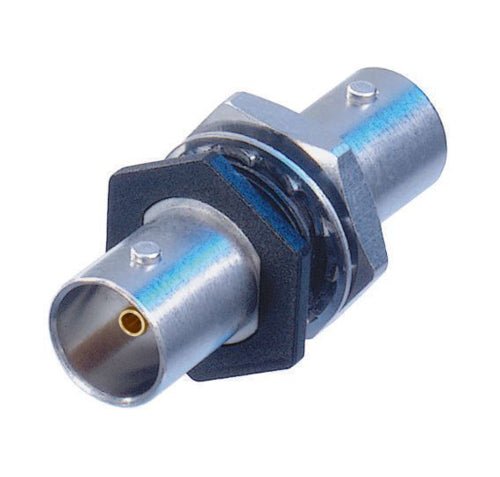

Neutrik - NBB75FI - Isolated BNC Bulkhead for panel mount, feedthrough
by Neutrik
$25.00
SKU NBB75FI
Features & Benefits
- Gold plated cage type center contact
- True 75 ? design meets the stringent HD & UHD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Extra wide fastening nut avoids damaging the plastic thread
Technical Information
Product | |
Title | NBB75FI |
Connection Type | BNC 75 ? |
Gender | female |
Electrical | |
Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV UHD |
Contact resistance | ? 3 m? (inner) |
Contact resistance | ? 2 m? (outer) |
Dielectric strength | 1,5 kVdc |
Impedance | 75 ? |
Insulation resistance | > 5 G? |
Rated voltage | <50 V |
VSWR | ?1.050/>32 dB up to 1 GHz ?1.065/>30 dB up to 2 GHz ?1.100/>26 dB up to 3 Ghz |
Mechanical | |
Insertion force | < 25 N |
Lifetime | > 1000 mating cycles |
Wiresize | |
Locking device | Bayonett |
Mounting direction | Front mounting |
Chassis shape | 12.7 mm |
Material | |
Contacts | Brass (CuZn39Pb3), 0.2 ?m AuCo (Center contact) |
Insert | PTFE |
Shell | Brass (CuZn39Pb3) |
Shell plating | Optalloy? |
Environmental | |
Temperature range | -30 ?C to +85 ?C |
