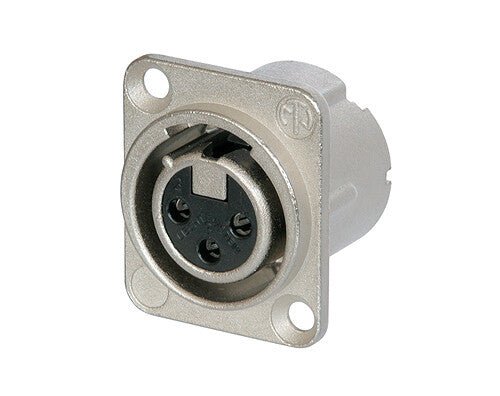

Neutrik - NC3FD-LX-0 - 3 pole female receptacle, solder cups, Nickel housing, silver contacts. NO Latching Mech
by Neutrik
$13.85
SKU NC3FD-LX-0
3 pole female receptacle, solder cups, Nickel housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Features & Benefits
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical Information
Product: | |
Title | NC3FD-LX |
Connection Type | XLR |
Gender | female |
Electrical: | |
Capacitance between contacts | ≤ 4 pF |
Contact resistance | ≤ 5 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 16 A |
Rated voltage | < 50 V |
Mechanical: | |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | max. 2.5 mm² |
Wiresize | max. 14 AWG |
Wiring | Solder contacts |
Locking device | Retention Spring |
Chassis shape | D |
Material: | |
Contact plating | 2 µm Ag over 2 µm Ni |
Contacts | Bronze (CuSn6) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | Steel Ck67 |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Environmental: | |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
