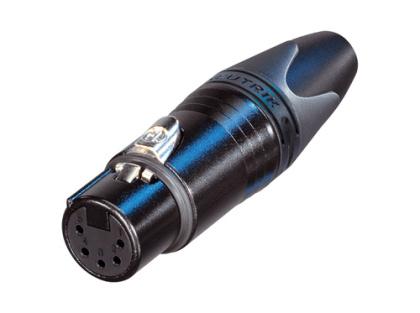

Neutrik - NC5FXX-BAG - 5 pole female cable connector with black metal housing and silver contacts.
by Neutrik
$32.00
SKU NC5FXX-BAG
5?pole female cable connector with?black metal housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features & Benefits
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design?- valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Technical Information
Product | |
Title | NC5FXX-BAG |
Connection Type | XLR |
Gender | female |
Electrical | |
Capacitance between contacts | ? 7 pF |
Contact resistance | ? 3 m? |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 G? (initial) |
Rated current per contact | 7,5 A |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | 3.5 - 8.0 mm |
Insertion force | ? 20 N |
Withdrawal force | ? 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | max. 1.0 mm? |
Wiresize | max. 18 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Material | |
Boot | Polyurethan |
Contact plating | 2 ?m Ag over 2 ?m Ni |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Black chromium |
Strain relief | Polyacetal (POM) |
Environmental | |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 ?C to +80 ?C |
