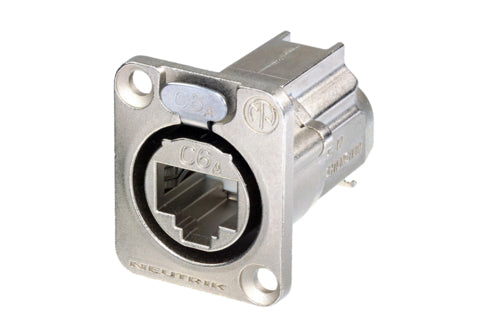

Neutrik - NE8FDX-Y6 -D-shape CAT6A Panel Connector, Shielded, IDC Termination, Nickel Housing
by Neutrik
Currently Out Of Stock
$48.00
D-shape CAT6A panel connector, shielded, IDC termination, nickel housing
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features & Benefits
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE++ compliant according to 802.3bt Type4
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Shielded system - high noise immunity and EMI protection
Technical Information:
| Product: | |
| Title | NE8FDX-Y6 |
| Gender | female |
| Electrical: | |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Transmission performance | CAT6A, acc. TIA/EIA rating CAT6A, acc. IEC/ISO/EN rating |
| Power over Ethernet | PoE++ acc. IEEE 802.3bt |
| Mechanical: | |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Wiresize | solid: AWG 26/1 - AWG 22/1 stranded: AWG 26/7 - AWG 22/7 |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Insulation diameter | 0.85 - 1.6 mm |
| Material: | |
| Contact plating | Au |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental: | |
| Flammability | UL 94 V-0 |
| Temperature range | -40 °C to + 70 °C |
