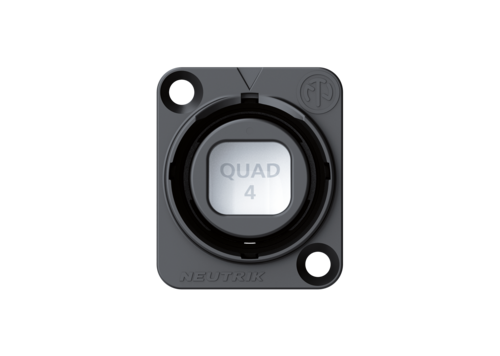

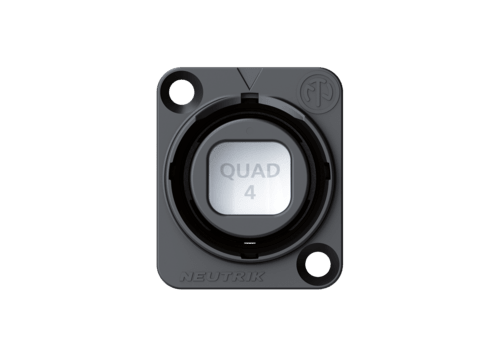

Neutrik - NO4FDW-A - Chassis Connector IP65 ingress protection

by Neutrik
Currently Out Of Stock
$270.00
SKU NO4FDW-A

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features & Benefits

  • Rugged 4-channel Point-to-Point multichannel routing solution
  • Laser protected metal shutter seals dust proof with two-component rubber gasket
  • IP65 ingress protection in mated condition with SCDP-*

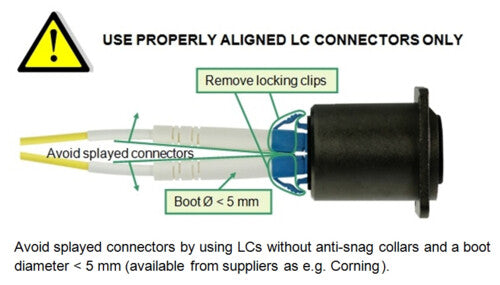

  • Accommodates standard LC connectors on the rear for cost effective and simple installations
  • Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard
    Multi mode ? black
    Single mode PC ? blue
    Single mode APC ? green


Technical Information

Product
Title NO4FDW-A
Gender female
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 5000 mating cycles
Wiresize
Locking device Push-Pull
Mounting direction Front mounting
Chassis shape D
Material
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 V-0
Temperature range -40 ?C to +75 ?C
Optical
Insertion loss < 0.5 dB / connection
