Pasgao - Wireless Mic System With Belt Pack and 1 x Lapel Mic

by Pasgao
$895.99
SKU PAW-1000/PBT-1000/PL20

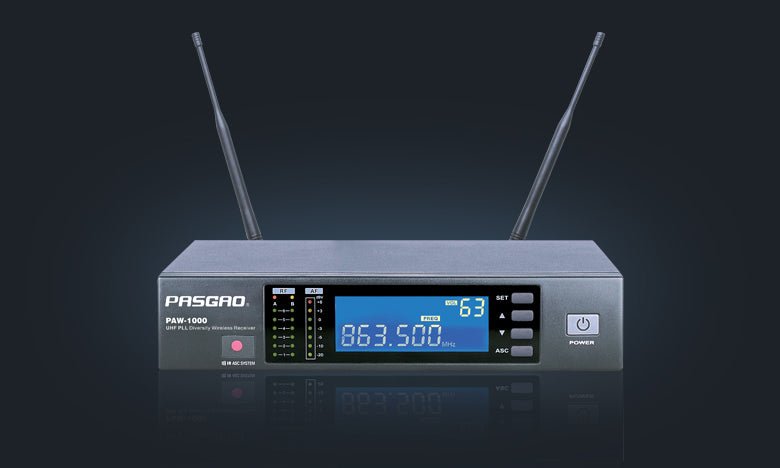

Pasgao - PAW-1000/PBT-1000/PL20 - Wireless Mic System With Belt Pack and 1 x Lapel Mic PAW-1000 UHF True Diversity Wireless Microphone System. Pasgao early generation diversity wireless system offers a rock-sol id performance, crystal clear sound quality, intuitive operation. An ideal choice for professional clubs, churches and other demanding venues. PAW-1000 UHF True Diversity Wireless Microphone System ? True diversity design ensures rock-sol id performance ? LCD shows al l working status ? Up to 160 selectable frequencies ? Automatic frequency selection ? Adjustable gain level ? 6-segment audio meters ? 6-segment RF meters ? 3-segment transmitter battery fuel gauges ? Squelch adjustment ? Infrared data synchronization ? Rugged metal chassis RF Carrier Frequency Range: 655-679mhz Working Range: 100M Modulation: FM Pilot Tone: / Max Channel Number: 192 System Compatibility: 8 channels Audio Frequency Range: 70HZ ~ 18KHz (?3db) Dynamic Range: > 103db System Distortion: THD< 0.7% S/N Ratio: > 100db(A? RF Sensitivity: < -95dbm for 30db S/N ratio Image Rejection: > 60db Output Connectors: (XLR?1) /(1/4-inch connector?1 ) Audio Output Level: (XLR: +8dbV) / (1/4-inch connector?1 (+6dbV) Output Impedance: (XLR:3K?)/(1/4-inch connector:3K?) Display: LCD Power Requirments: 12V/0.5A DC Operating Temperature Range: 0-50 ? Dimensions:160*212*44mm Weight:900g PBT-1000 Bodypack Transmitter ? LCD screen with light-green backlight indicates frequency, battery life, RF, gain level, mute and lock status ? 3 optional audio gain adjustments from -9dB up to 6dB ? 3 optional transmit power adjustments ? Double input circuit design for microphone and guitar ? Infrared data synchronization Gain Adjustment Range:-10/0/10db Input Impedance : (Mic:5K?)/(Guitar : 760K?) RF Power Output : 20mW Spurious Rejection:> 50db Pilot Tone:/ Display: LCD Power Requirments:1.5V?2(AA) Battery Life:> 8h/1300mAH Dimensions:89*65*24mm Weight:85g
