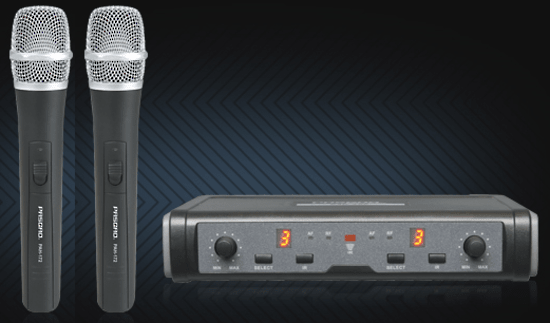

Pasgao - PAW-266/PAH-172 - Wireless Mic System With 2 x Handheld Mics

by Pasgao
SKU PAW-266/PAH-172

Antenna diversity dual-channel wireless microphone system.

This wireless microphone system has two kinds of receivers to choose based on your application background.PAW-266 is dual-channel receiver. As for the transmitter, you can equip PAH-172 handheld transmitter, or PBT-172 bodypack transmitter. The simple buttons on receiver make it easy to operate.The pilot tone prevents it from unexpected startup noise. The transmitter battery lasts up to eight hours without any interrupting. Compared with PAW-266,PAW-267 has an additional XLR audio output in the rear panel. In this way, we can provide multiply choices for you.As many as 4 channels can be used simultaneously within the same frequency band. It has attracted customers from both overseas and domestic markets because of cost-efficient,good-performance, and multi-channel features.


? Built-in antenna design.
? Digital LED display, touch button control.
? Tone key squelch circuit to avoid interference.
? Infrared data synchronization.


? Cast metal structure stands high mechanical strength

? Microphone head separate design for free choice and easy replacement

? Infrared data synchronization


? Low battery indication

? 3 optional input gain adjustments

? Infrared data synchronization



Frequency Range 500 ~ 937.5MHz
Oscillation Pattern PLL
Working Range 60meters
Modulation FM
Pilot Tone 32.768KHz
Optional Frequency 16
System Compatibility 4pcs
Frequency Response 70Hz~ 15KHz (?3dB)
Dynamic Range > 102dB
T.H.D. < 0.8%
S/N Ratio > 98dB?A?
RF Sensitivity < -92dBm
Image Rejection > 50dB
Output Connectors 1/4-inch connector?1
Audio Output Level +6dBV
Output Impedance 3K?
Display LED luminescent tube
Power Requirements 12V/0.5A  DC power adaptor
Operating Temperature Range 0-50 ?
Dimensions 210(L)*116(W)*42(H)mm
Weight 360g


Input Impedance 5K?
Output Power 20mW
Harmonic Rejection > 50dB
Display LED Luminescent Tube
Power Requirements 1.5V*2(AA)
Battery Life > 8H/1300mAH
Dimensions 242(L)*(45)?mm
Weight 195g


Gain Adjustment Range -10/0/10dB
Input Impedance (Mic
Output Power 20mW
Harmonic Rejection > 50dB
Display LED Luminescent Tube
Power Requirements 1.5V*2(AA)
Battery Life > 8H/1300mAH
Dimensions 105(H)*63(L)*24(W)mm
Weightt 80g
