Pasgao - PAW-900/PAH-801 - Wireless Mic System With 1 x Handheld Mic
Single channel true diversity wireless microphone system.

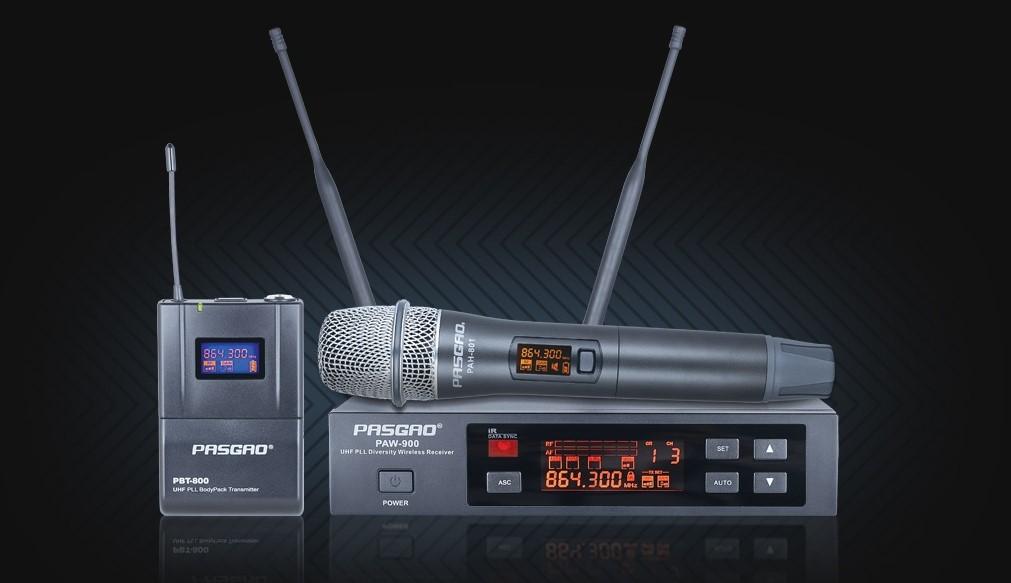

The PAW-900 wireless microphone system consists of the PAW-900 receiver, the PAH-801 handheld transmitter or the PBT-801 bodypack transmitter. The system has 10 frequency groups with a total of 160 channels, and each frequency band has up to 16 channels that do not interfere with each other. The system has the functions of automatically searching for idle channels, infrared data synchronization and the like. The system offers a rock-solid performance,crystal clear sound quality,intuitive operation.An ideal choice for professional clubs,churches and other demanding venuse.
PAW-900R
? True diversity design ensures rock-solid performance
? LCD shows all working status.
? Up to 192 selectable frequencies
? Automatic frequency selection
? Adjustable gain level
? 6-segment audio meters
? 6-segment RF meters
? 3-segment transmitter battery fuel gauges
? Squelch adjustment
? Infrared data synchronlzauon
? Rugged metal chassis
PAH-801
? Modularized microphone head design of handheld transmitter for free choice and easy replacement
? LCD screen with orange backlight indicates frequency, battery life, RF, gain, mute and Lock status
? 3 optional audio gain adjustments
? 3 optional transmit power adjustments
? Infrared data synchronization
? Rock-solid metal body design and strong rubber end structure with good anti-drop performance
PAT-801
? LCD screen with orange backlight indicates frequency, battery life, RF, gain,mute and Lock status
? 3 optional audio gain adjustments
? 3 optional transmit power adjustments
? Infrared data synchronization
Specifications:
PAW-900R:
| Frequency Range | 500 ~ 937.5MHz |
| Working Range | 100 meters |
| Modulation | FM |
| Pilot Tone | 32.768KHz |
| Optional Frequency | 192 |
| System Compatibility | 8pcs |
| Frequency Response | 50Hz ~ 15KHz (?3dB) |
| Dynamic Range | > 105dB |
| T.H.D. | < 0.5% |
| S/N Ratio | > 102dB(A) |
| RF Sensitivity | < -95dBm |
| Image Rejection | > 60dB |
| Output Connectors | (XLR?1)/(1/4-inch connector?1) |
| Audio Output Level | (XLR |
| Impedance | (XLR |
| Display | LCD?1 |
| Power Requirements | 12V/0.5A DC |
| Operating Temperature Range | 0-50 ? |
| Dimensions | 160(L)*212(W)*44(H)mm |
| Weight | 880g |
PAH-801:
| Gain Adjustment Range | 0/3/6dB |
| Input Impedance | 5K? |
| Output Power?2mW/10mW/30mW | |
| Spurious | > 50dB |
| Display | LCD |
| Power Requirements | 1.5V*2(AA) |
| Battery Life | >8H/1300mAH |
| Dimensions | 250(L)*50(?)mm |
| Weight | 360g |
PBT-801:
| Gain Adjustment Range | 0/3/6dB |
| Input Impedance | 5K? |
| Output Power?2mW/10mW/30mW | |
| Harmonic Rejection | > 50dB |
| Display | LCD |
| Power Requirements | 1.5V*2(AA) |
| Battery Life | >8H/1300mAH |
| Dimensions | 65(L)*165(H)*23(W)mm |
| Weight | 130g |
