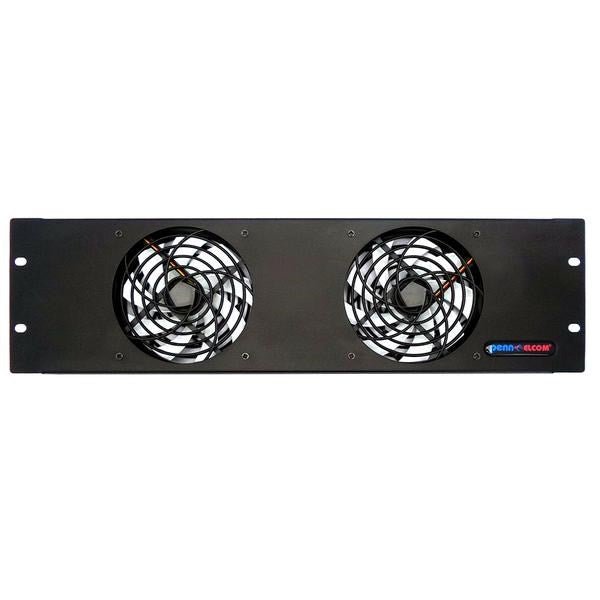

Penn Elcom - FP02-Q-3U - Low Noise Heat Extraction Unit

Currently Out Of Stock
Low noise 3U Heat Extraction Units are designed to be fitted into the front or back of a 19-inch rack to suck hot air out of an enclosure. As hot air rises the best results will be achieved by mounting them at the top of the cabinet.

A DC-DC link socket is provided, so two or more units can be linked together;?a higher power PSU must be used.

Each extractor can also be controlled by a CRC-TEMP thermal sensor.

Technical Specifications
? Low Noise 22.5dBA (0.3 Sone)
? Air movement: 200CFM (336m?/h) @1,350RPM
? Dimensions: 483mm x 133.4mm x 55mm
? 2 x 9 Bladed 120mm Fans
? High Static Pressure
? Power: 12V DC ? 500mA / 2 x DC In/Out Sockets
? 500mA universal PSU supplied
? Fluid Bearings = 2 Year Limited Warrantee

These extractor panels can be controlled by our?CRC-TEMP?Standard Fixed 40?C (104?F) thermal sensor.
Or they can be Digitally Controlled by our?FT-DTC?1U Rack Mounting Thermostatic Controller.
Use?AF-F12?Magnetic Fan Dust Filter Covers.
