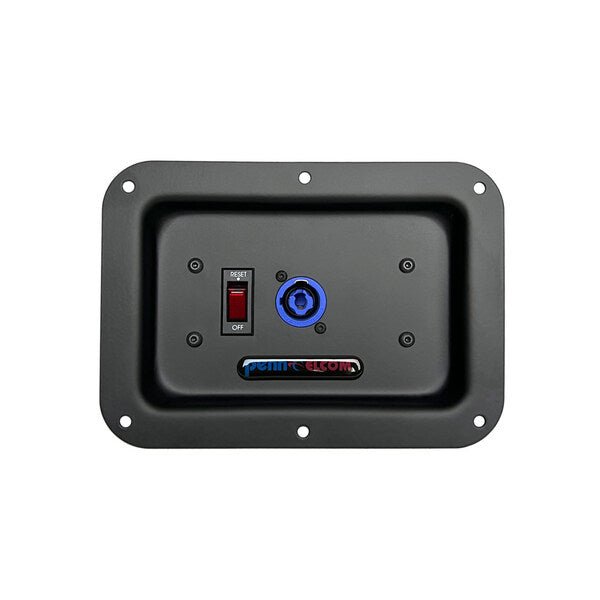

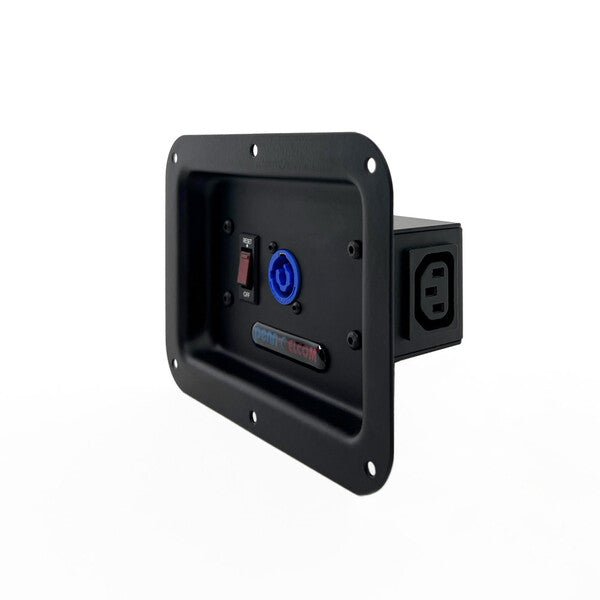

Penn Elcom - PDU10-PCFC-X - 10A Power Dish (Horizontal or Vertical).


10A Horizontal Power Dish for Flight Case

Built to specifically fit into flight cases, the 10A Flight Case Power Dish (Horizontal) was created for those who require power for additional equipment and access to electricity.

The power dish can be used for:
- Power distribution for mobile workstations including screen monitors and laptops
- Charging battery equipment
- Powering up-lighters, LED lighting or other external staging equipment within and outside the case

Created to be used in:
- Backstage settings
- Outdoor settings
- Mobile set-ups
- Pop-ups and exhibitions

The power dishes are easily mounted into any style of flight case, using the same technique as fitting a case handle or dish. There are horizontal (FCH) or vertical (FCV) mounting versions available.

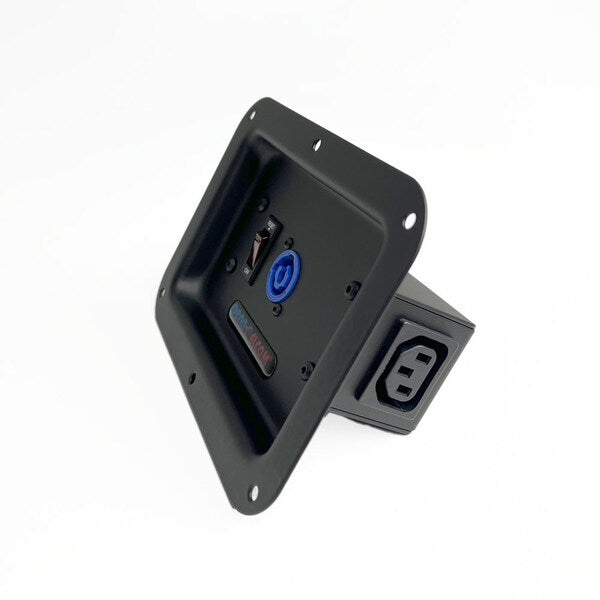

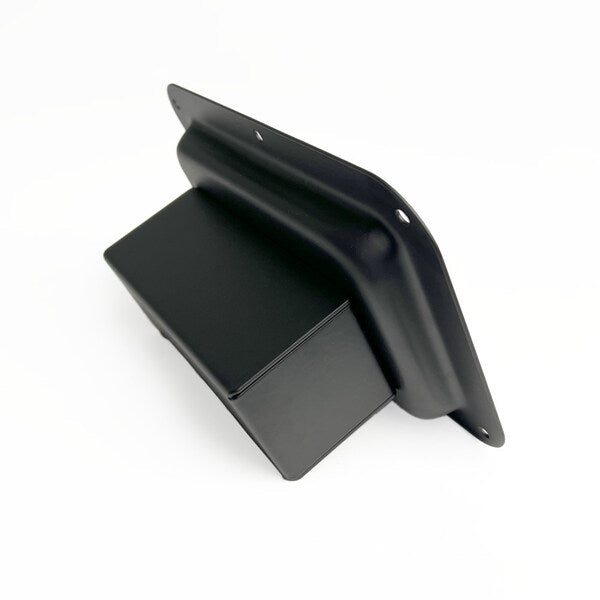

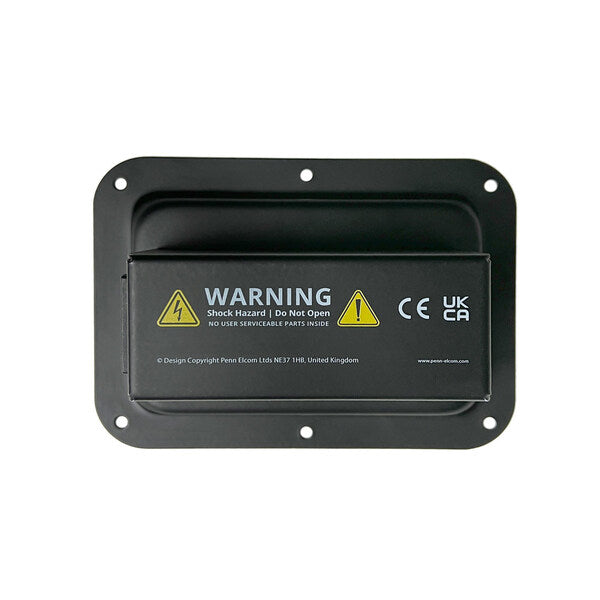

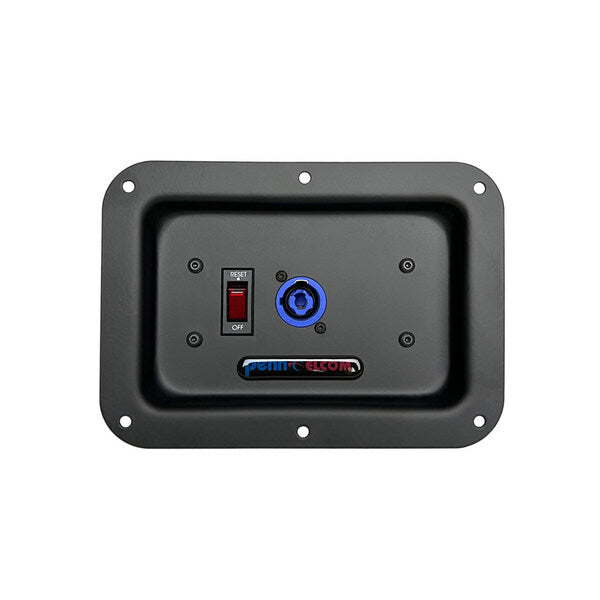

The low profile dish gives you the option once fitted, via a PowerCon connector on the front of the dish/case delivering mains power in and through a 10amp thermal breaker to a side loaded IEC chassis socket out situated on the rear of the dish and once fitted situated on the inside of the case.

Technical Specifications
- PowerCon Input NAC3MPXXA
- 10A Thermal Breaker Switch
- 10amp IEC Output
- Dish Dimensions (OD): 178mm x 127mm x 68mm / 7.01" x 5" x 2.68"
- Hole Cutout Dimensions: 148mm x 96mm / 5.83" x 3.78"
- Available in two versions: Horizontal & Vertical

Part No. PDU10-PCFCH
Finish Black
Description 10A Horizontal Power Dish
Weight 0.6Kg
