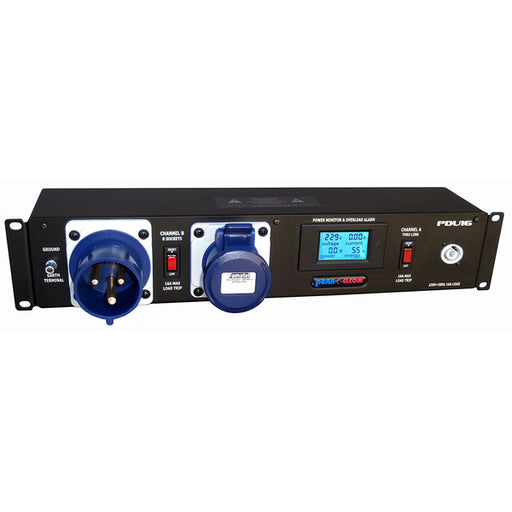

2U 16amp Rack Mount PDU with Power Monitor Pair of C-FORM Sockets with overload trip switch.

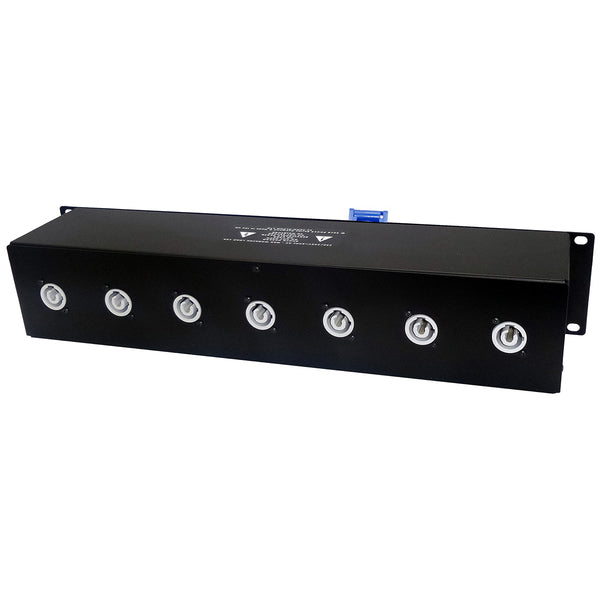

8 x Neutrik PowerCon Outlet Sockets with 16A overload trip switch.
Ideal solution for fast power distribution in stage, studio, and touring environments.
Circuit A
- Main Input: C-FORM 240V 16A IP44 Panel Mount Appliance Inlet
- Protection: Illuminated Circuit Breaker overload protection between dual 16A sockets
- Output: C-FORM 240V 16A IP44 Panel Mount Appliance Outlet
Circuit B
- Output: 8 Neutrik powerCon sockets with a Maximum Combined Load 16A.
- Protection: Illuminated Circuit Breaker 16A overload protection
- LCD Monitor: LCD Power Monitor giving Voltage, Current , Power, Energy Levels & Overload Alarm.
- Earth Link: M4 Screw Terminal for Rack Grounding
Usage
- Nominal Voltage: 110V-240V
- Usable Voltages 110V~240V full range
- Frequency: 50/60HZ full range
- Max. A/C Output: Current 16A
- Case Size: 87mm x 98mm x 430mm / 3.43" x 3.86" x 16.93"
Compliance: All components used in this conform to current RoHS, CE & UL certification - E&OE
(EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
| Part No. | PDU16-PC |
| Finish | Black |
| Description | 2U 16amp Rack Mount PDU with PowerCon Outputs |
| Weight | 2kg |
