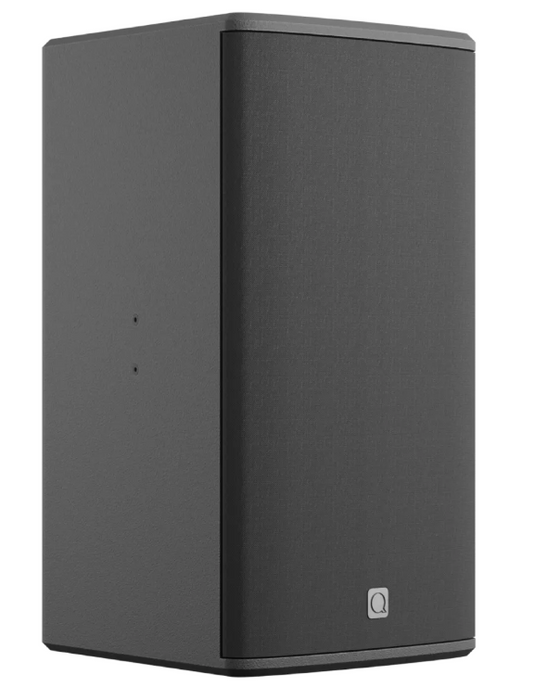

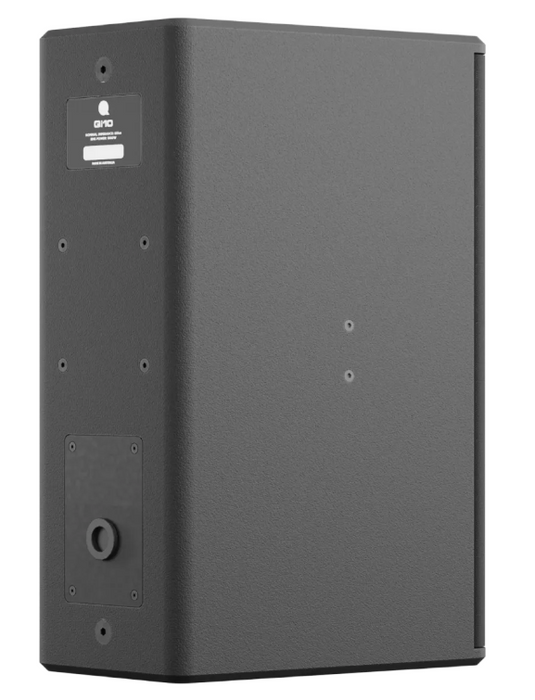

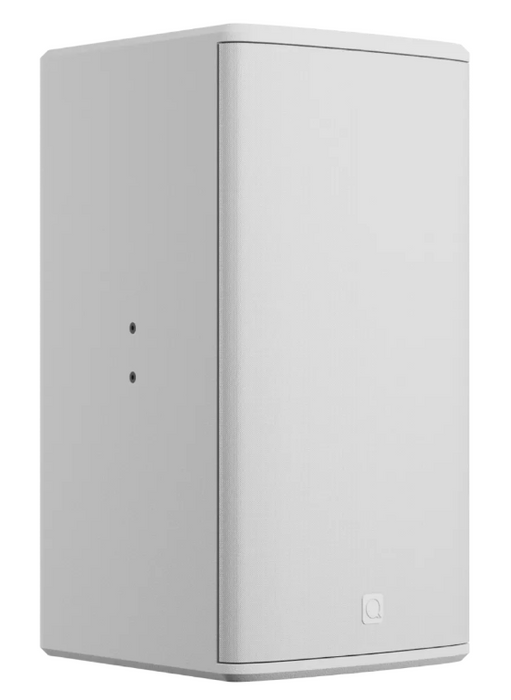

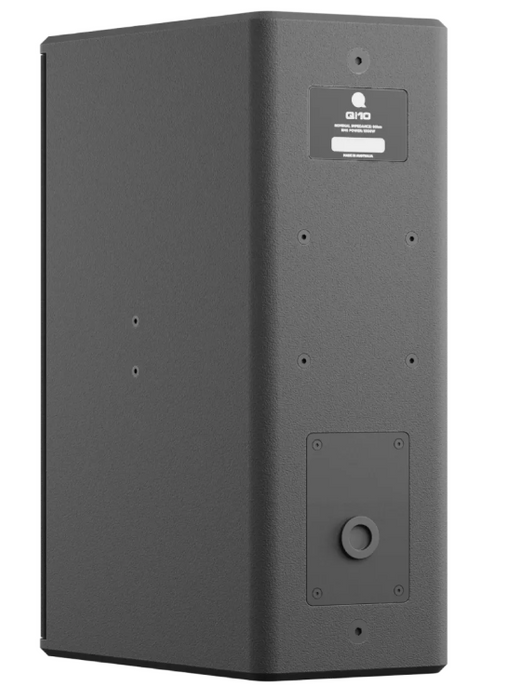

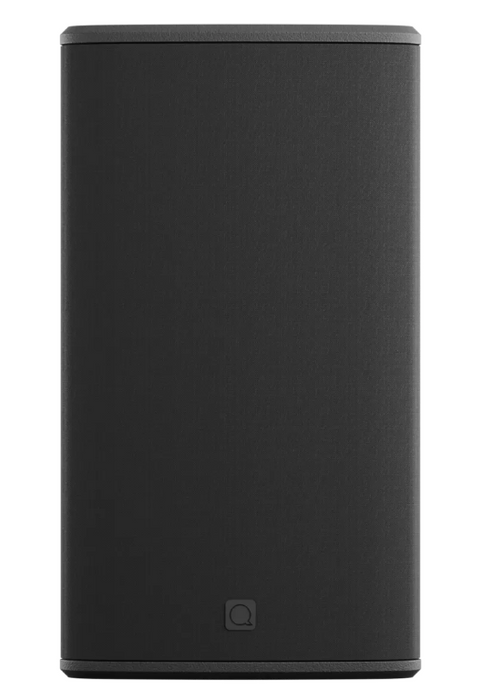

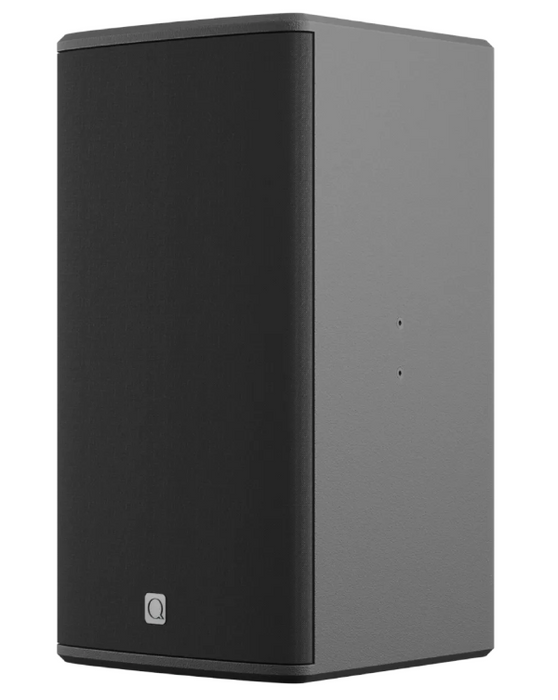

Quest - QI10 - 2-Way Installation Loudspeaker, 10" LF + 1" HF, 8 Ohm, .
by Quest
Currently Out Of Stock
$2,514.99
SKU QI10
Qi10
2-Way 10" Installation Loudspeaker
The Quest Qi10 integrates advanced acoustic engineering with refined aesthetics to deliver a premium 10-inch loudspeaker solution for high-end installations. Its timber cabinet and smooth front grille ensure visual discretion, while the rotatable horn flare provides a consistent 90° x 70° dispersion pattern. Designed for seamless integration with Quest QXD amplifiers—equipped with DSP and preset functionalities—the Qi10 achieves a balanced frequency response and maximum efficiency, making it an ideal choice for demanding commercial environments.
Key Specifications:
- Impedance: 8 Ω
- Transducers: 1″ HF & 10″ LF
- Dispersion: 90° x 70°
- Horn: Rotatable
- Power: 300W RMS
- Mounting: Horizontal & Vertical Brackets
SPECIFICATIONS
| COLOURS / MODELS |
|
||||
| FREQUENCY RESPONSE (-6 dB) | 55Hz to 20kHz | ||||
| SENSITIVITY - 1 W @ 1 m | 94.6dB | ||||
| MAXIMUM SPL @ 1 m | 125.4dB | ||||
| POWER HANDLING (RMS/PEAK) | 300W / 600W | ||||
| NOMINAL IMPEDANCE | 8Ω | ||||
| TRANSDUCERS | HF: 25mm (1") Compression Driver / LF: 254mm (10") Woofer | ||||
| DISPERSION (H° x V°) | 90° x 70° | ||||
| ROTATABLE HORN | Yes | ||||
| CONNECTIONS | 4-Pin Euroblock/Phoenix Connector - 7.62mm Pitch (In/Thru) | ||||
| RIGGING POINTS | Yes - See Specification Document | ||||
| DIMENSIONS (H x W x D) | 540 x 300 x 332mm (21.2" x 11.8" x 13") | ||||
| WEIGHT | 16.5kg (36.4lb) | ||||
| SHIPPING WEIGHT | 17kg (37.5lb) | ||||
| SHIPPING DIMENSIONS (H x W x D) | 675 x 420 x 380mm (26.6” x 16.5” x 15”) | ||||
| CABINET MATERIAL & FINISH | Marine Plywood with Polyurea Coating | ||||
| GRILLE MATERIAL & FINISH | Steel mesh with Polyester Fiber Fabric | ||||
| RECOMMENDED POWER AMPLIFIER | Quest QX or QXD Amplifiers | ||||
| ACCESSORIES (INCLUDED) | Euroblock/Phoenix Connector, Cover Plate | ||||
| ACCESSORIES (AVAILABLE SEPARATELY) | Horizontal Bracket (HBRQi10) Vertical Bracket (VBRQi10) |
