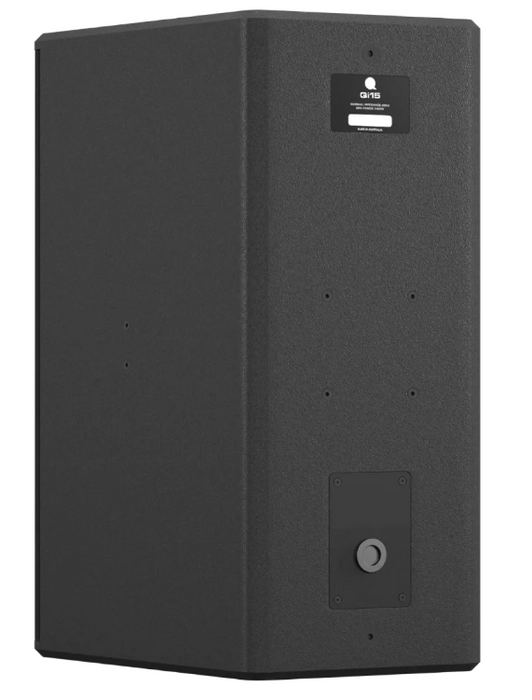

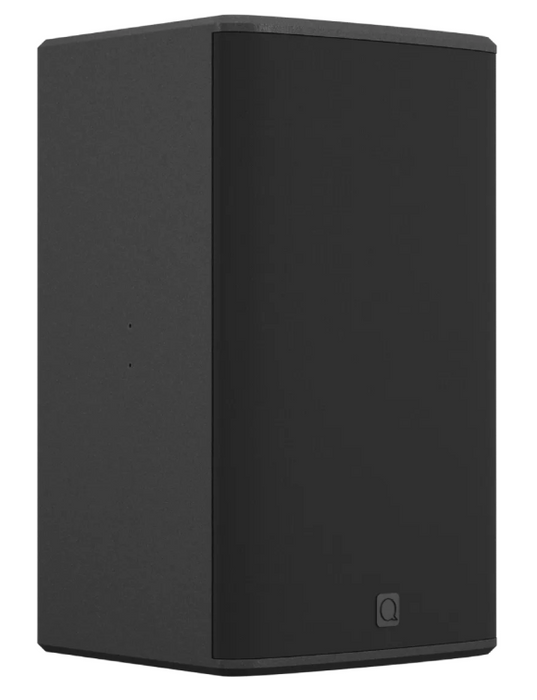

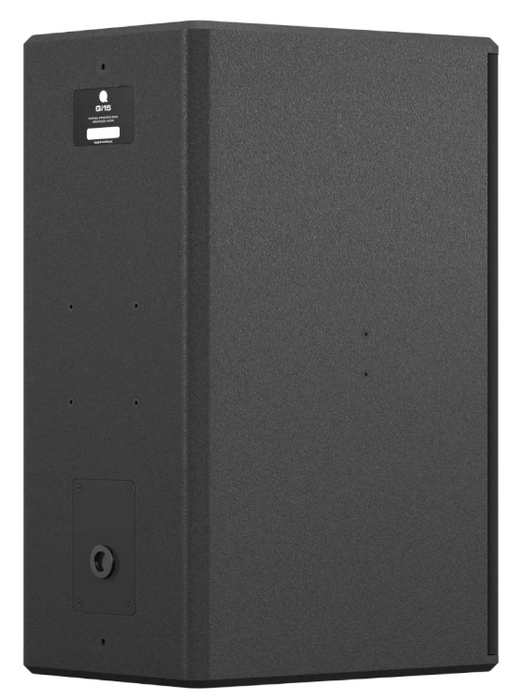

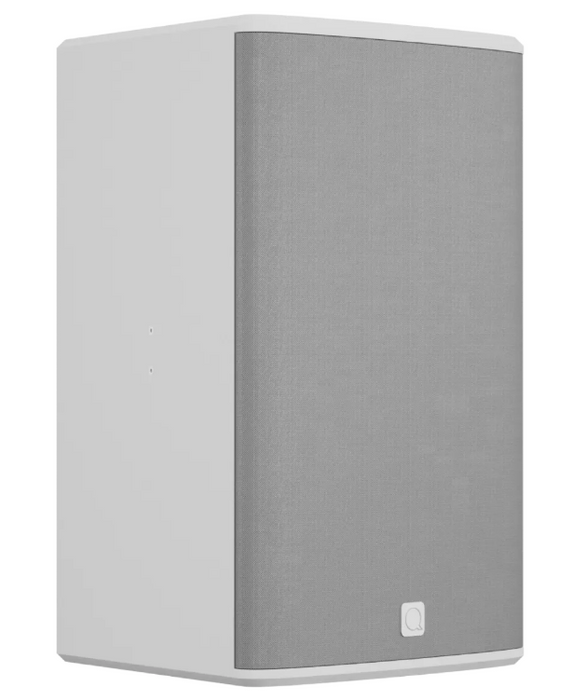

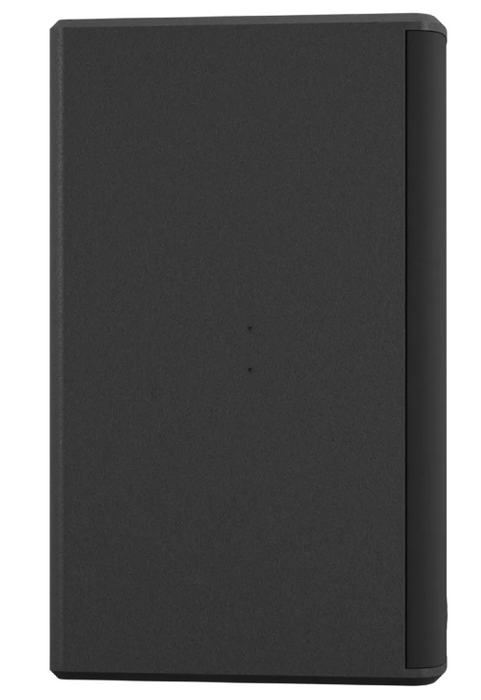

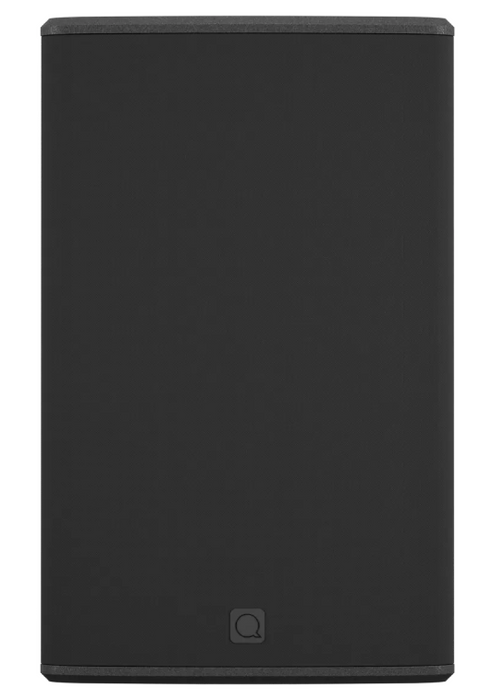

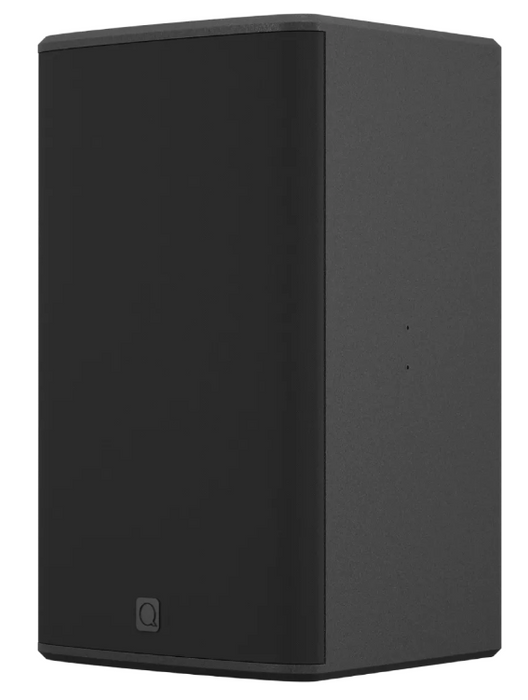

Quest - QI15 - 2-Way Installation Loudspeaker, 15" LF + 1.4" HF, 8 Ohm, .
by Quest
Currently Out Of Stock
$3,697.99
SKU QI15
Qi15
2-Way 15" Installation Loudspeaker
The Quest Qi15 delivers exceptional large-scale audio performance while maintaining architectural discretion. Enclosed in a durable timber cabinet, it features a 15-inch long-excursion woofer paired with a 1-inch compression driver to produce powerful yet refined sound. The integrated bi-amp/passive switch and 80° x 50° rotatable horn flare allow for optimized configuration in expansive venues, ensuring consistent, high-quality sound reinforcement with an unobtrusive visual profile.
Key Specifications:
- Impedance: 8 Ω
- Transducers: 1.4″ HF & 15″ LF
- Dispersion: 80° x 50°
- Horn: Rotatable
- Power: 500W RMS
- Passive or Active Bi-Amp Configuration
- Mounting: Horizontal & Vertical Brackets
SPECIFICATIONS
| COLOURS / MODELS |
|
||||
| FREQUENCY RESPONSE (-6 dB) | 48Hz to 18kHz | ||||
| SENSITIVITY - 1 W @ 1 m | 99.4dB | ||||
| MAXIMUM SPL @ 1 m | 132.5dB | ||||
| POWER HANDLING (RMS/PEAK) | 500W / 1000W | ||||
| NOMINAL IMPEDANCE | 8Ω | ||||
| TRANSDUCERS | HF: 35mm (1.4") Compression Driver / LF: 381mm (15") Woofer | ||||
| DISPERSION (H° x V°) | 80° x 50° | ||||
| ROTATABLE HORN | Yes | ||||
| CONNECTIONS | 4-Pin Euroblock/Phoenix Connector - 7.62mm Pitch (In/Thru) | ||||
| RIGGING POINTS | Yes - See Specification Document | ||||
| DIMENSIONS (H x W x D) | 680 x 425 x 415mm (26.8" x 16.7" x 16.3") | ||||
| WEIGHT | 34.5kg (76lb) | ||||
| SHIPPING WEIGHT | 35.5kg (78.3lb) | ||||
| SHIPPING DIMENSIONS (H x W x D) | 815 x 515 x 515mm (32” x 20.3” x 20.3”) | ||||
| CABINET MATERIAL & FINISH | Marine Plywood with Polyurea Coating | ||||
| GRILLE MATERIAL & FINISH | Steel mesh with Polyester Fiber Fabric | ||||
| RECOMMENDED POWER AMPLIFIER | Quest QX or QXD Amplifiers | ||||
| ACCESSORIES (INCLUDED) | Euroblock/Phoenix Connector, Cover Plate | ||||
| ACCESSORIES (AVAILABLE SEPARATELY) | Horizontal Bracket (HBRQi15/ Vertical Bracket (VBRQi15) |
