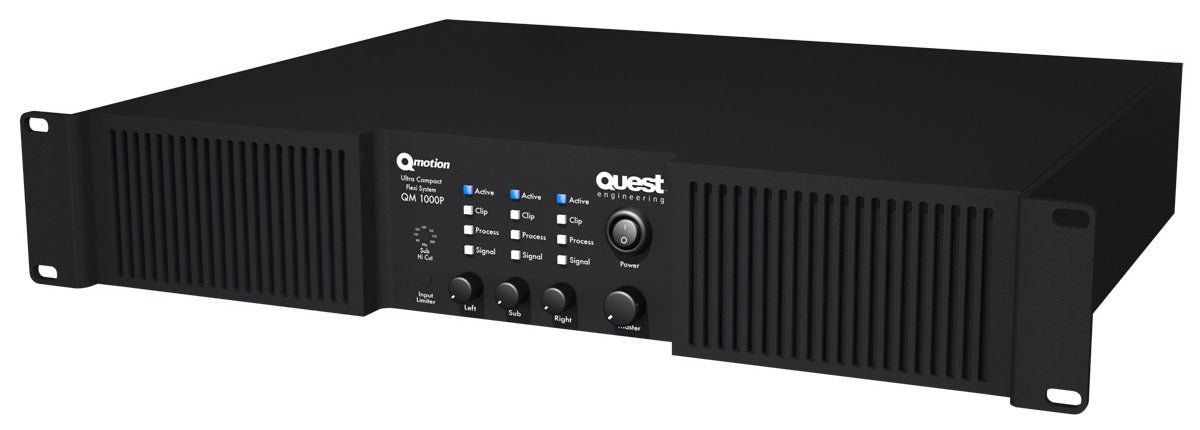

Quest - QM1000P - Complete Sub/Satellite Amplifier System.
QM Series Complete Sub/Satellite Amplifier System
QM1000P [2x350W @ 4?]
A multi-way processed amplifier rack in 2 rack spaces? All this and more.
The QM1000P is a dedicated stereo satellite/mono sub bass amplifier system that allows a variety of loudspeaker and sub bass configurations for either permanent or mobile sound installations.
Adjustable cross-over and input limiter makes possible optimum matching of a variety of Quest sub bass and full range speakers powered by the three internal amplifiers.
- The QM1000P signal path comprises L and R inputs, and three outputs, L, R and summed L&R sub bass out
- One QM1000a can drive 2 or 4 full range or crossed over HF loudspeakers and 2 x 8 ohm bass speakers in a mono bass configuration

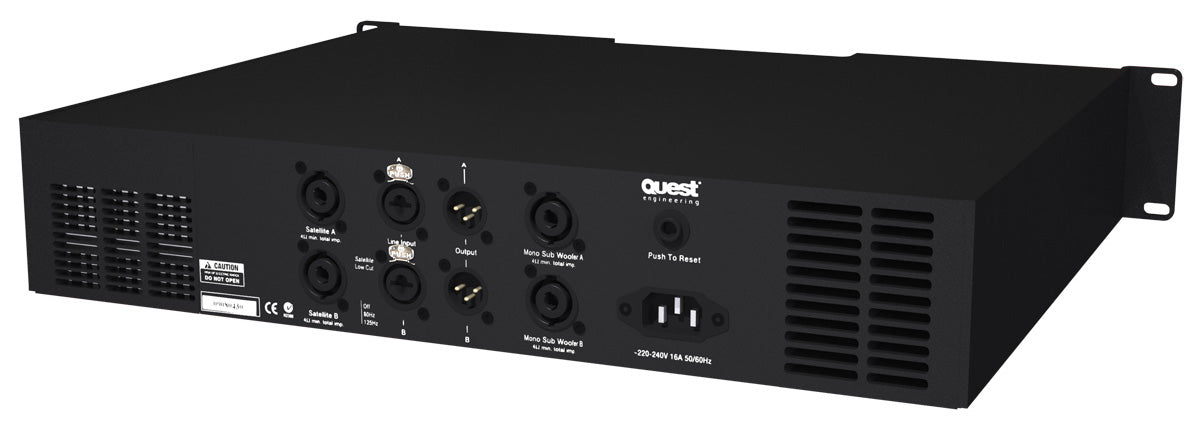

- Power is 2 x 350W RMS @ 4 ohms and 660W sub bass @ 4 ohms with HF x ?over controls on the rear panel

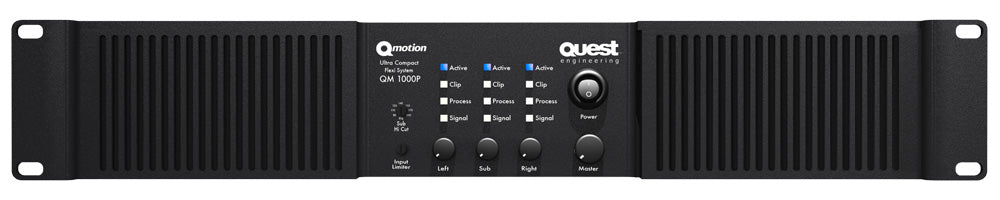

- Input level L&R and sub volume level, sub high pass and an overall input limiter are set from the front panel
- Each internal amplifier is governed by clipping protection in addition to the adjustable input limiting facility
- All inputs are male/female XLR and Speakon outputs wired to pin 1Pos & Neg
|Test condition||Satellite amplifier||SUB Woofer amplifier|
|Power Output *||8?||2 x 210W||1 x 610W|
|4?||2 x 350W||1 x 940W|
|Frequency response||+0/-0 .3dB, @1W/8?||20----20KHz||20---300|
|Distortion||Rated power -10db||<=0 .05%||<=0 .05%|
|Intermodulation Distortion||60Hz&7KHz/4:1||<=0 .05%||<=0 .05%|
|Damping factor||200Hz at? 8?||>=300||>=300|
|Sensitivity||Rated power 8?||0 .775V||0 .775V|
|S/N ratio||A Weight||>106dB|
|Cross talk||A Weight||>60dB|
|Sensitivity||0 .775V||0 .775V|
|Protection||Short circuit protection||DC protection||Over current protection|
|Dimensions (H x W x D)||89mm x 483mm x 420mm|
