Quest - QXD5K - 4Ch Power Amplifier, 5000W, 2U, DSP, Networkable. Optional Dante/AES67 Version.
SKU QXD5K
QXD-5K
4-Channel 5000W Power Amplifier with DSP and Network Capability
The QXD-5K is a high-powered, 2RU, 4 x 1250W Class-D amplifier designed for performance-critical installations. It delivers up to 2500W per channel in bridged mode and supports 70V/100V operation. Built on UMAC™ Class-D architecture, this amplifier offers exceptional dynamic range, ultra-low distortion, and highly efficient power delivery. It includes an integrated 32bit/96kHz DSP for precise signal management, featuring FIR and IIR filters, peak and RMS limiters, and onboard Quest speaker presets.

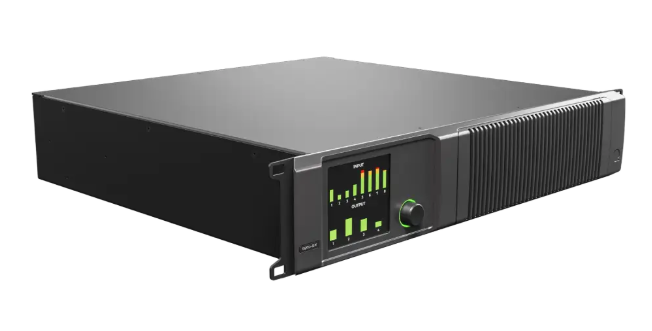

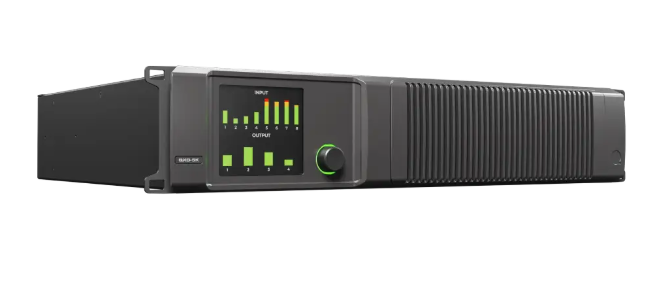

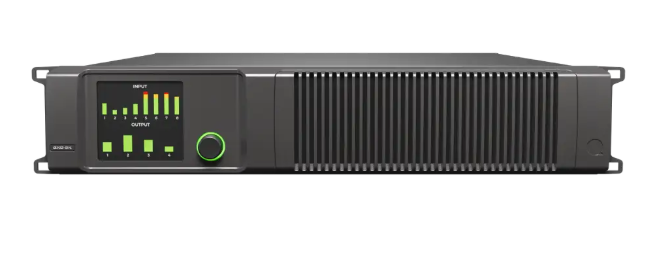

For control, a high-resolution TFT display and LED-illuminated encoder are available on the front panel. Network control and GPIO are accessible via the RJ45 port, allowing for remote management and integration into broader AV systems.

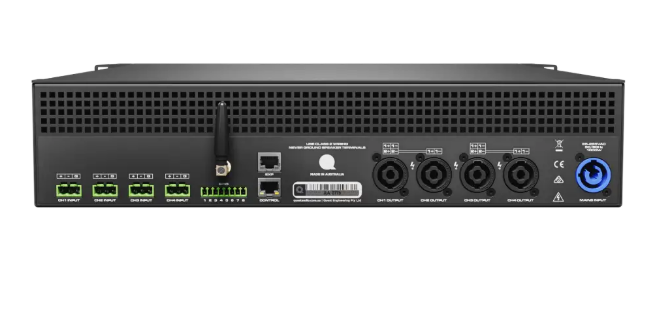

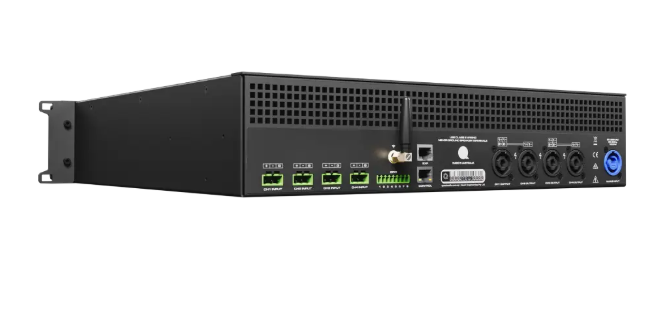

The amplifier features Neutrik speakON® outputs and powerCON® mains connections for professional-grade reliability. Dante® Version Available – QXD-5KD (additional 4 inputs, Dante® AoIP, AES67 compatible)
Key Specifications:
- Channels: 4 x 750W (Low-Z), 2 x 2500W (Bridged), 2 x 1500W (70V/100V)
- DSP: 32bit/96kHz FIR/IIR Filters, Limiters, Speaker Libraries
- Mounting: 2RU Rack
- Control: RJ45 & GPIO, Front TFT Display
- Dante® Version Available – QXD-5KD (additional 4 inputs, Dante® AoIP, AES67 compatible)
SPECIFICATIONS
| Maximum Dynamic Power (@1kHz, 1% THD) (PEAK) |
|
Total 5000W |
Normal Operation |
Bridge-Mono Mode |
|
8Ω 4 x 400W |
4Ω 4 x 750W |
70V N/A |
100V N/A |
8Ω 2 x 1500W |
4Ω 2 x 2500W |
70V 2 x 1200W |
100V 2 x 1500W |
|
| Maximum Continuous Power (@1kHz, 1% THD) (RMS) |
|
Total 5000W |
Normal Operation |
Bridge-Mono Mode |
|
8Ω 4 x 400W |
4Ω 4 x 750W |
70V N/A |
100V N/A |
8Ω 2 x 1500W |
4Ω 2 x 2500W |
70V 2 x 1200W |
100V 2 x 1500W |
|
| I/O |
| OUTPUT CIRCUITRY |
UMAC™ Class-D – full bandwidth PWM modulator with ultra-low distortion |
| OUTPUT CHANNELS |
Four Speaker Level Output via Neutrik speakON® connectors |
| INPUT CHANNELS |
Four Balanced Line Level Inputs via 3-pin Euroblock/Phoenix connector with 5.08 mm pitch and screw-lock |
| DEFAULT GAIN |
25 dB |
| FREQUENCY RESPONSE |
20 Hz - 20 kHz (+/-0.25 dB), 4 Hz - 40kHz (-3dB) |
| TOTAL HARMONIC DISTORTION |
< 0.008% (1 KHz, 5 W, 8 ohm load) |
| DYNAMIC RANGE |
> 108 dBA |
| MAXIMUM INPUT LEVEL |
+28 dBu |
| INPUT IMPEDANCE |
10kohm Unbalanced, 20kohm Balanced |
| LATENCY |
<350us, flat setup |
|
| CONTROL |
| CONTROLS AND INDICATORS (FRONT) |
High-Resolution TFT Display with Rotary Encoder with LED Halo |
| CONTROLS AND INDICATORS (REAR) |
N/A |
| CONTROL AND MONITORING |
RJ45 & GPIO |
| DIGITAL SIGNAL PROCESSING |
32bit/96kHz with FIR/IIR Filters, Peak and RMS Limiters, Digital Delay & Custom Quest Speaker Libraries |
| PROTECTION CIRCUITS |
Thermal Protection, Over-Current Protection, DC Protection, HF Protection |
|
| ELECTRICAL |
| MAINS POWER INPUT |
Universal Mains, 100-240VAC, 50-60 Hz |
| MAINS CONNECTOR |
Neutrik powerCON® |
| POWER CONSUMPTION - STANDBY |
<0.5W |
| POWER CONSUMPTION - IDLE |
28 W |
| POWER CONSUMPTION - 1/8TH POWER / 8 ohm Load |
260 W |
| POWER CONSUMPTION - 1/3RD POWER / 8 ohm Load |
650 W |
|
| HEAT |
| HEAT GENERATED - STANDBY |
1.7 BTU/hr / 1.7 kJ per hour |
| HEAT GENERATED - 1/8TH POWER / 8 ohm Load |
205 BTU/hr / 214 kJ per hour |
| COOLING |
Fan-Forced Air Cooling – User-Selectable Temperature-Dependent Control Curves |
| FAN NOISE |
36 dB(A) (Anechoic Chamber, @ 1 m) |
|
| SIZE |
| RACK SIZE |
2RU |
| DIMENSIONS (W x H x D) |
482 x 88 x 416mm (19" x 3.5" x 16.4") |
| WEIGHT |
10.2kg (22.5lbs) |
| SHIPPING DIMENSIONS (W x H x D) |
610 x 135 x 550mm (24" x 5.3" x 21.6") |
| SHIPPING WEIGHT |
12kg (26.5lbs) |
|
| ACCESSORIES |
| ACCESSORIES (INCLUDED) |
Mains Cable, Euroblock/Phoenix Plugs, Wi-Fi Antenna |
| ACCESSORIES (AVAILABLE SEPARATELY) |
None |
| OPTIONS |
Dante® Version Available - QXD-5KD (additional 4 inputs, Dante® AoIP, AES67 compatible) |
|
