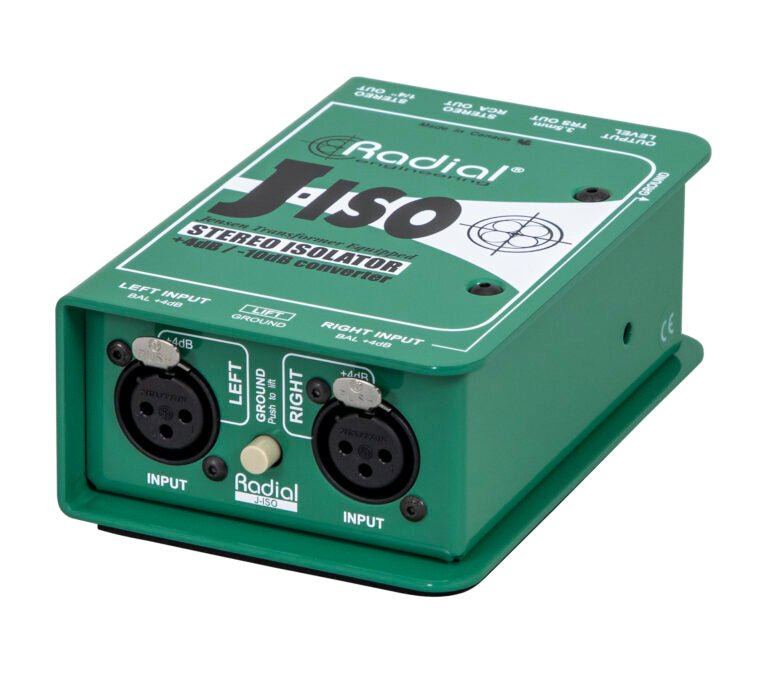

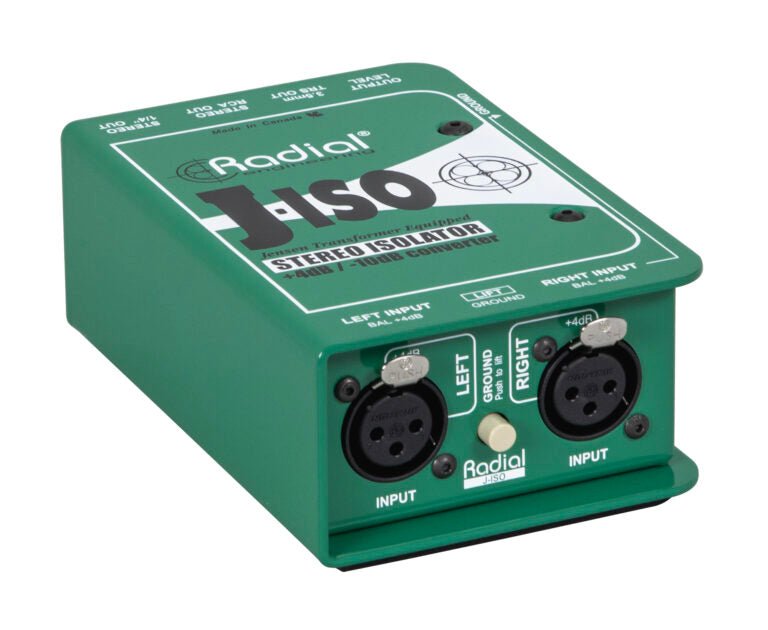

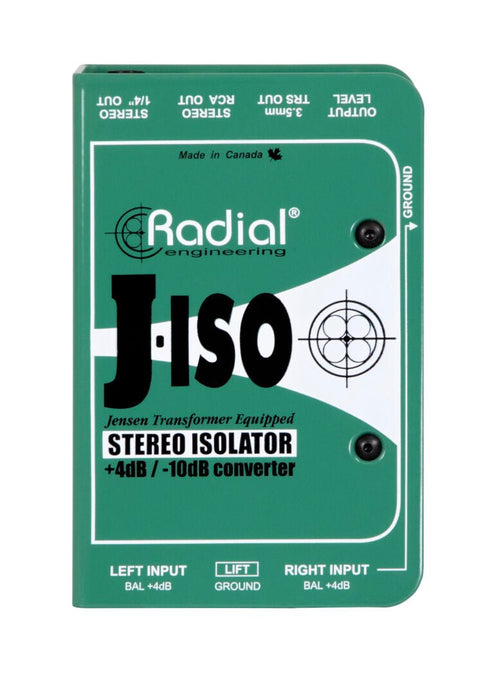

Radial Engineering - J-ISO - Stereo +4dB to -10dB Converters And Isolator.
Currently Out Of Stock
$1,399.00
SKU J-ISO
Stereo +4dB to -10dB converters and isolator
The Radial J-Iso™ and Pro-Iso™ are stereo line isolators designed to convert a professional +4dB line level balanced signal to an unbalanced -10dB consumer level device. This enables you to take the balanced output of a mixer and feed a consumer level recorder or audio input on a computer.
- Converts balanced line level signals to unbalanced
- Stereo signal path with set & forget level control
- Transformer isolated to eliminate hum & buzz
- Features Jensen transformers for optimal signal path
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive, transformer based | |
| Transformer: | Jensen JT-11-YMPC | |
| Number of channels: | Stereo (dual mono) | |
| Frequency response: | 20Hz ~ 20KHz (+0dB/ -1.5dB) | |
| Dynamic range: | 130dB | |
| Total harmonic distortion: | 0.001% @ 1kHz | |
| Phase Deviation: | 0.5° @ 100Hz; 1° @ 20Hz | |
| Input Impedance: | 1.3k Ohms, balanced | |
| Output Impedance: | 200 Ohms, unbalanced (when output control is set to max) | |
| Common Mode Rejection Ratio: | -58dB | |
| Maximum Input: | +20dBu @ 1kHz/1% THD+N | |
| Features | ||
| Ground lift, Level Control | ||

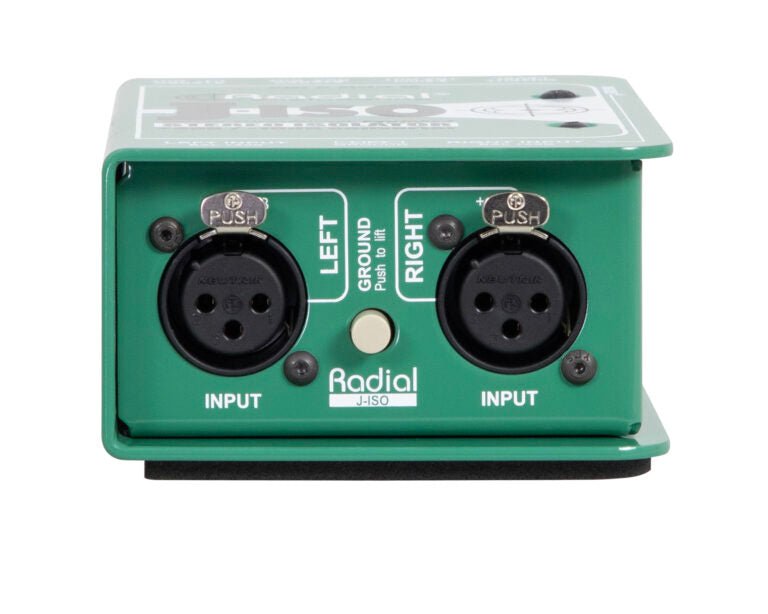

| Input Connectors: | XLR | |

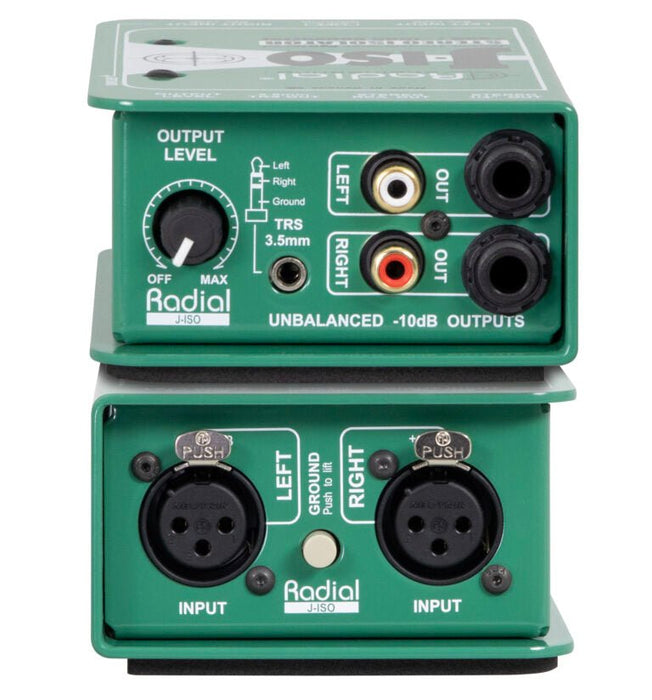

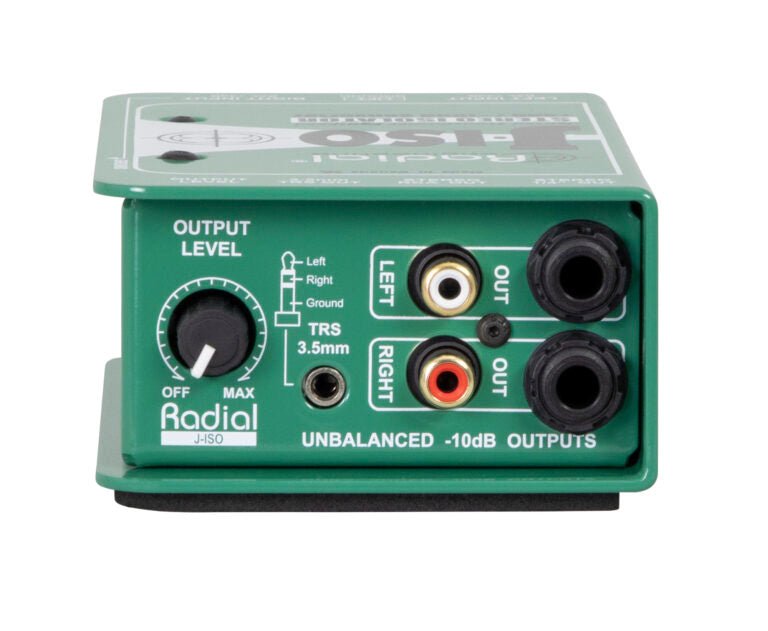

| Output Connectors: | 1/4", RCA and 3.5mm TRS unbalanced | |
| General | ||
| Construction: | 14 gauge steel chassis | |
| Size (L x W x D): | 8.4cm x 12.7cm x 4.8cm (3.3" x 5" x 2") | |
| Weight: | 0.7 kg (1.55 lbs) | |
| Shipping size (L x W x D): | 10.2cm x 7.6cm x 16.5cm (4" x 3" x 6.5") | |
| Shipping weight: | 0.87 kg (1.92 lbs) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
