Neutrik - NAUSB3-B - Reversible USB 3.0 gender changer (type A and B), black D-housing.
Reversible USB 3.0 gender changer (type A and B), black D-housing
The NAUSB3-B is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.
Not compatible with NKUSB-* cables.
Features & Benefits
- USB 3.0 feedthrough adapter
- Reversible insert offering type A or B on front or rear end
- Standard D-shape housing
- Removable screen for chassis grounding
- Meets USB 3.0 specifications
USB 3.0 Performance

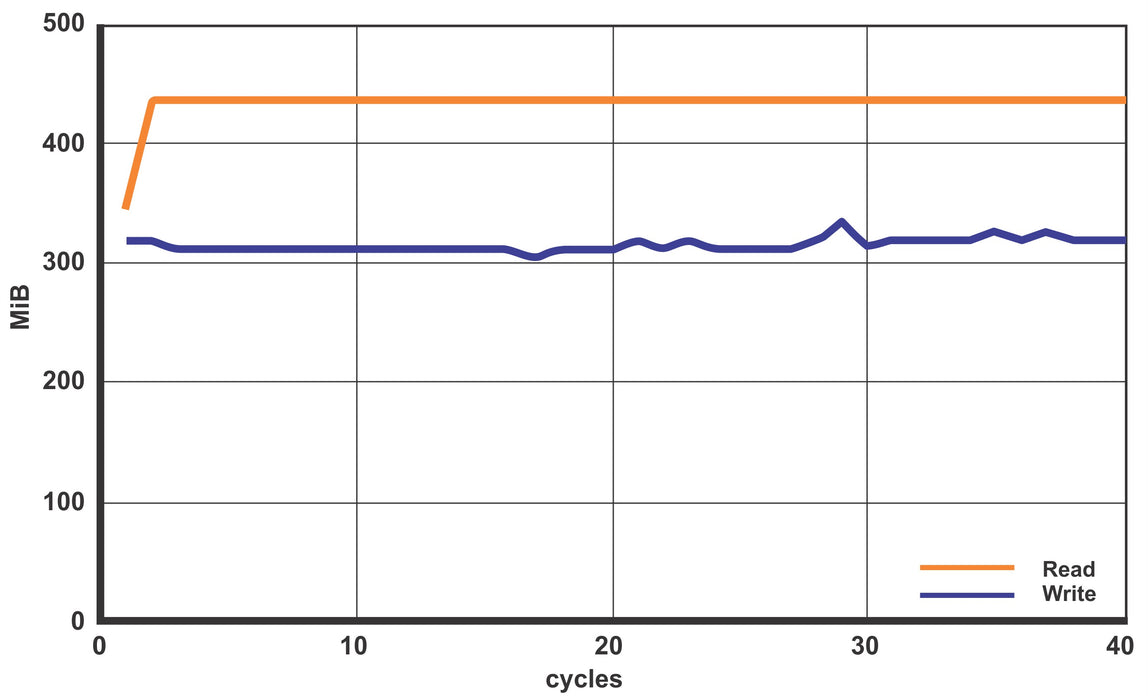

To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.

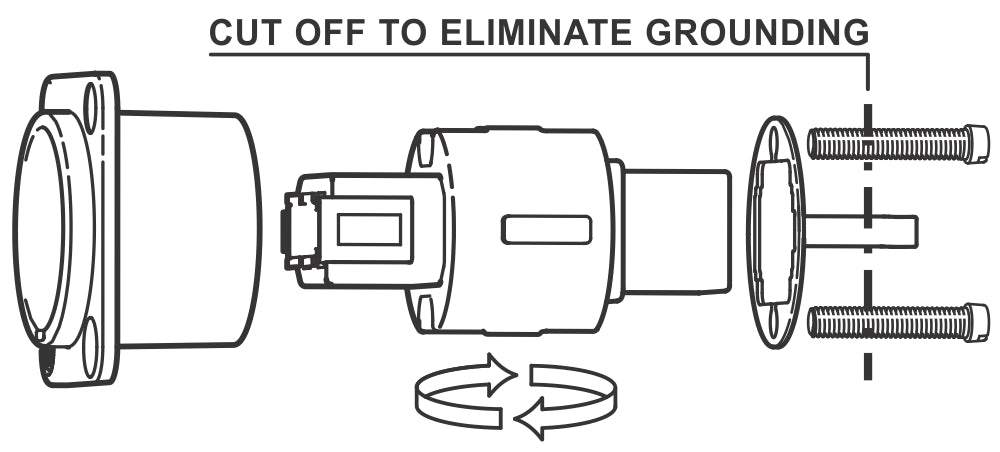

Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.
|Reading / Writing speed||>200 MB/s|
|Mounting direction||Front mounting|
|Lifetime||> 1000 mating cycles|
|Insert||PBTP 15 % GR|
|Shell||Zinc diecast (ZnAl4Cu1)|
|Flammability||UL 94 V-0|
|Standard compliance||USB 3.0 specifications|
|Temperature range||-25 °C to +85 °C|
