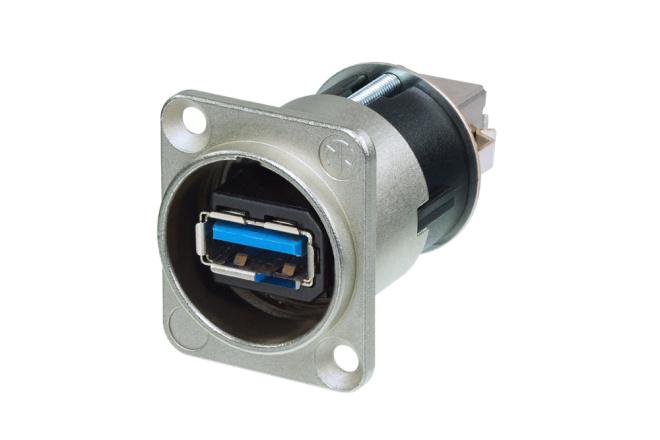

Neutrik - NAUSB3 - Reversible USB 3.0 gender changer (type A and B), Nickel D-housing.

by Neutrik
$29.99

Reversible USB 3.0 gender changer (type A and B), Nickel D-housing

The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.

Not compatible with NKUSB-* cables.

Features & Benefits

  • USB 3.0 feedthrough adapter

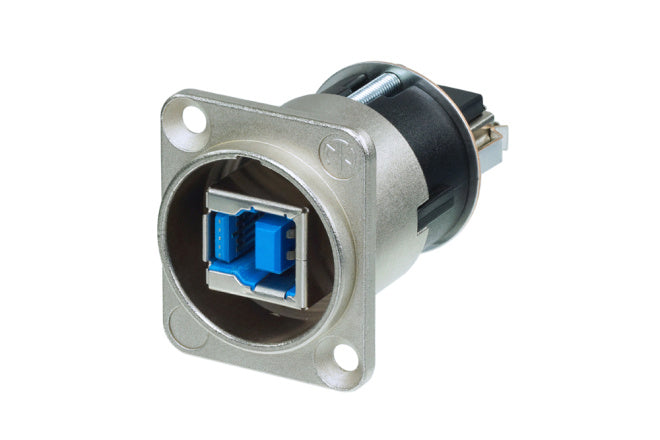

  • Reversible insert offering type A or B on front or rear end
  • Standard D-shape housing
  • Removable screen for chassis grounding
  • Meets USB 3.0 specifications

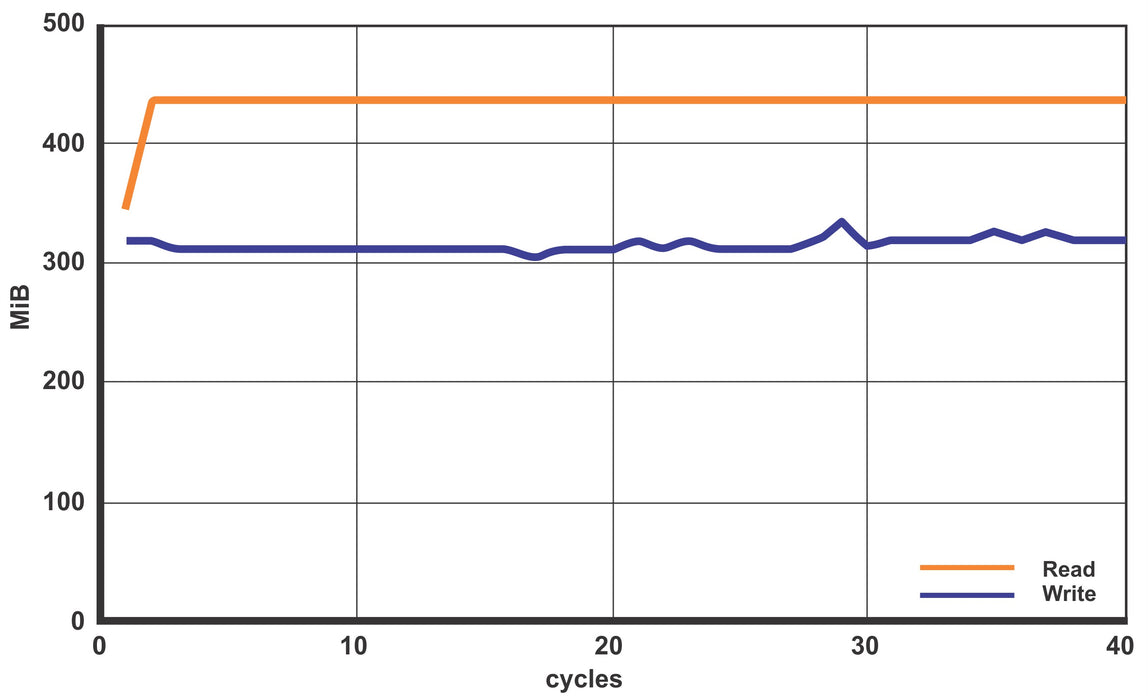

USB 3.0 Performance

To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.

Optimized Ground Connection

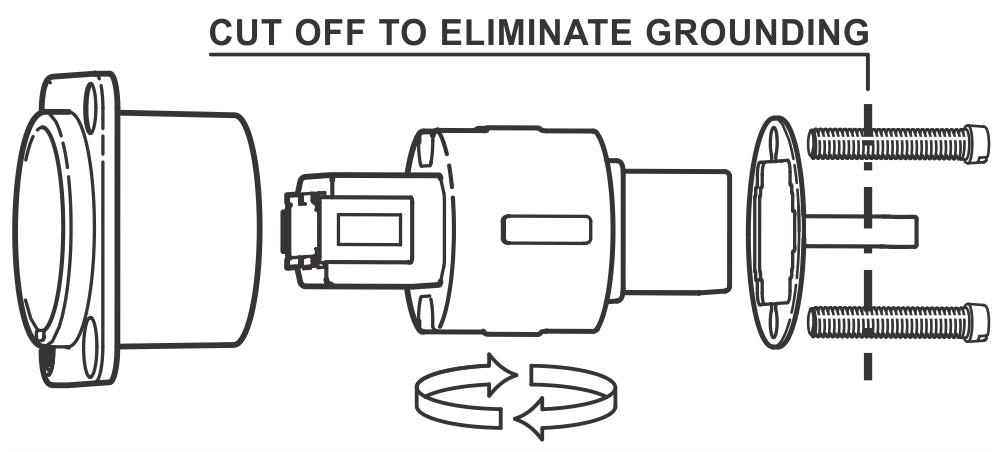

An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.

Cable lengths

To ensure an error-free data transmission it is essential to use an appropriate cable with correct length. The table below lists the maximum cable length according to the wire gauge (AWG) of the used USB 3.0 cable.

Wire gauge Cable length
AWG 22 1.75 m
AWG 24 1.0 m
AWG 26 0.6 m
AWG 28 0.35 m



Technical Information

Product
Title NAUSB3
Connection Type Adapter
Gender female
Electrical
Reading / Writing speed >200 MB/s
Mechanical
Wiresize
Mounting direction Front mounting
Chassis shape D
Lifetime > 1000 mating cycles
Material
Contact plating Au
Contacts Brass (CuZn39Pb3)
Insert PBTP 15 % GR
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 V-0
Standard compliance USB 3.0 specifications
Temperature range -25 °C to +85 °C
