***Price Is Per Meter***
Swinging with your girlfriend...
like Tarzan in the jungle. With this cable you could just do that: it can take a lot of tugging, bending, and rough wear and tear. This is important when installing it in sharp-edged lighting trusses.

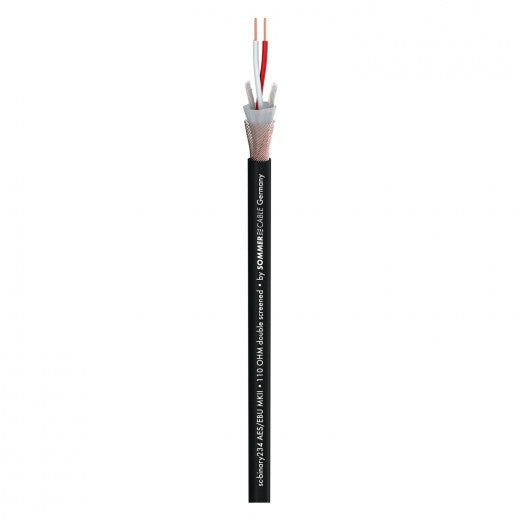

The Binary 234 AES/EBU MKII is an outstanding cable for the transmission of digital signals in the 110 Ω AES/EBU and DMX data format. Its shielding is provided by an aluminum-vaporized fleece and a helical copper mesh screen with 100 % coverage. So it offers a very good protection against electric and magnetic interference's. This cable ensures an error-free data transfer over distances of up to 1000 metres. With the Binary 234 AES/EBU MKII you’ll be on the safe side.
Advantages:
- AES/EBU- and DMX-conform-ant, highly flexible
- Very good shielding due to the use of a helical copper mesh screen plus
an aluminium-vaporized fleece - Extremely rugged due to the special tough jacket
- Only a little more expensive than a standard microphone cable
Application:
- Networking of scanners, lighting systems, digital mixing consoles etc.
- For indoor and outdoor installation
- Connection of digital audio amplifiers, DAT recorders etc.
Specifications:
| Article number | 520-0051 |
|---|---|
| Name | Binary 234 AES/EBU MKII |
| EAN | 4049371002349 |
| Properties | Analog |
| Properties | Digital 110 Ω AES / EBU |
| Properties | OFC oxygen free copper |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application area | ELA 100 V |
| Application area | Stage / live |
| Application area | Installation |
| Application | DMX |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | (2LI2Y0,34mm²)(ST)DY |
| Jacket material | PVC |
| Jacket Ø [mm] | 6,20 |
| Number of Channels (AES/EBU, DMX) | 1 |
| Inner conductor (AES/EBU, DMX) | 2 |
| Inner conductor (AES/EBU, DMX) [mm²] | 0,34 |
| Inner conductor Ø (AES/EBU, DMX) [mm] | 0,66 |
| AWG (AES/EBU, DMX) | 22 |
| Shielding | Copper spiral shielding + aluminum steamed fleece |
| Shielding factor [%] | 100 |
| Copper strands (AES/EBU, DMX) | 19 |
| Copper strand Ø (AES/EBU, DMX) [mm] | 0,15 |
| Conductor insulation material | Foam / Skin-PE |
| Conductor insulation Ø [mm] | 1,50 |
| Weight per 1 m [g] | 50 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,17 |
| Style variant | round |
| Packing | 100 m spool |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 70 |
| Width [mm] | 6,2 |
| Height [mm] | 6,2 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] | 63 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] | 19,2024 |
| Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] | 115 |
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] | 35,052 |
| Impedance [Ω] | 110 |
| Insulation resist. per 1 km [GΩ] | 1 |
| Insulation resist. per 1000 feet [GΩ] | 0,3048 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] | 1 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] | 0,3048 |
| Conductor resistance per 1 km [Ω] | 53 |
| Conductor resistance per 1000 ft. [Ω] | 16,1544 |
| Shield. resistance per 1 km [Ω] | 28 |
| Shield. resistance per 1000 ft. [Ω] | 8,5344 |
| BPVo-Euroclass | Fca |
