Sommer Cable - Cicada So-D14 3.4mm

$3.79

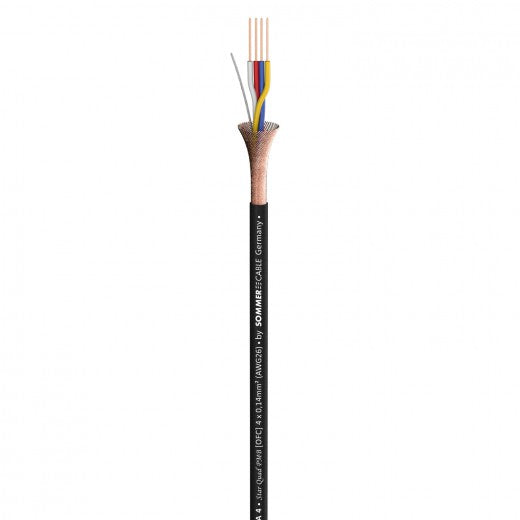

Maybe the smallest “star quad“ of all times …

Is called SC-CICADA 4 with an outside diameter of merely 3.4mm (0.13 in.). Technically this cable is based on the very successful SC-CICADA SO-D14 variant, but instead of two, it has now four wires arranged in a star shape, yet remains just as flexible and top-performing. In a crossover wiring this version delivers extremely good electrical values, especially when compared to traditional microphone cables. Like the SC-CICADA SOD-14, the SC-CICADA 4 also features a robust, notch-resistant and sweat absorbing PUR Master Blend outerjacket – ideal for wiring up fitness gyms -, a tight spiral shielding with 95 % coverage and also a pre-stranded drain wire which makes cable assembly a lot easier and gives the cable an additional kink protection and a high tensile strength. The SC-CICADA 4 is the perfect microphone cable for use with mini XLR plugs, for fully assigned MIDI and DIN cables or as a compact patch cable. It is recommended e.g. for the internal wiring in racks or audio components, as feed line for clip or ear microphones or also for manufacturing high-grade adapter cables.

Advantages:

  • Super flexible due to fine CU litz construction
  • Easy to handle owing to the extra drain wire (0.22 mm²)
  • Tight spiral screen with 95 % coverage for excellent shielding
  • Durable and notch-resistant due to the sturdy PUR jacket

Application:

  • Interior wiring of mixing consoles, racks, and other audio
    components
  • For connecting mini XLRs, mini jacks, fully assigned MIDI and DIN cables
  • Flexible cable for clip-on microphones, earphones, speaker units, etc.
  • Assembly of adapter cable

Specifications:



Article number 200-0461
Name SC-CICADA 4
EAN 4049371360630
Properties OFC oxygen free copper
Properties PUR Master Blend
Properties Analog
Application area Mobile outdoor / indoor
Application area Installation
Application Patch & Microphone Cable
Colour black
Colour detailed black
Signal transmission symmetrical
Construction (4LI2Y0,14mm²)D11Y
Jacket material PUR Master-Blend
Jacket Ø [mm] 3,40
Inner conductor (audio) 4
Inner conductor (audio) [mm²] 0,14
Inner conductor Ø (audio) [mm] 0,42
AWG (audio) 26
Shielding Copper spiral shielding + filler strand, tin-plated (0.22 mm²)
Copper strands (audio) 18
Copper strand Ø (audio) [mm] 0,10
Conductor insulation material PE
Wire insulation material (audio) PE
Conductor insulation Ø [mm] 0,90
Conductor insulation Ø (audio) [mm] 0,90
Weight per 1 m [g] 20
UV-resistant yes
Fire load per m [kWh] 0,08
Style variant round
Packing 100 m spool
Temperature min. [°C] -25
Temperature max. [°C] 70
Width [mm] 3,4
Height [mm] 3,4
Capac. cond./cond. per 1 m (audio) [pF] 75
Capacity wire/wire at 1 ft. (audio) [pF] 22,86
Capac. cond./shield. per 1 m (audio) [pF] 140
Capacity wire/electic screen at 1 ft. (audio) [pF] 42,672
Insulation resist. per 1 km [GΩ] 1
Insulation resist. per 1000 feet [GΩ] 0,3048
Insulation resist. per 1 km (audio) [GΩ] 1
Insulation resist. per 1000 feet (audio) [GΩ] 0,3048
Conductor resistance per 1 km [Ω] 145
Conductor resistance per 1000 ft. [Ω] 44,196
Conductor resistance per 1 km (audio) [Ω] 145
Conductor resistance per 1000 ft. (audio) [Ω] 44,196
Shield. resistance per 1 km [Ω] 39
Shield. resistance per 1000 ft. [Ω] 11,8872
Old article number 999-0001-329
