Sommer Cable - Cinema-Sv

$10.99
SKU 600-0701
***Price Is Per Meter***

Video killed the radio star...

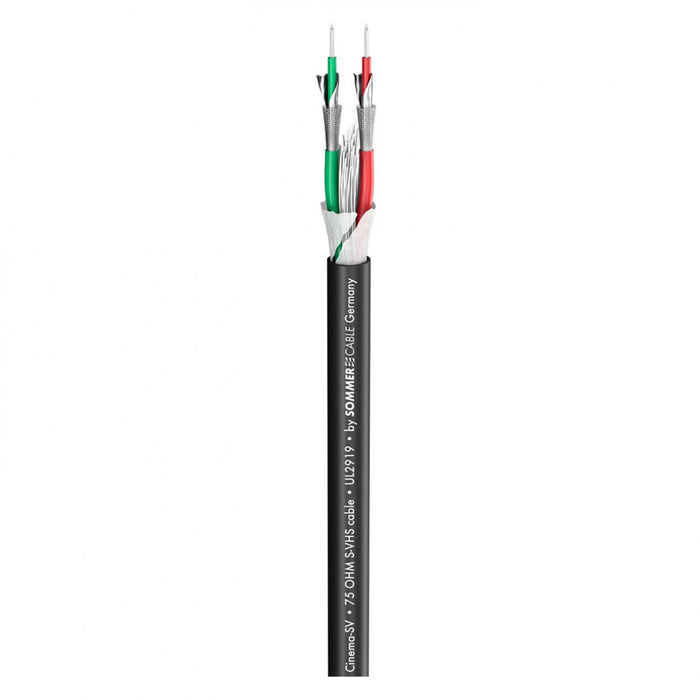

The prophecy of that Buggles pop song has not (yet) come true ??? but still: already today a good picture goes hand in hand with good sound, Meanwhile, the S-video standard is an integral part of the good picture for all cameras, computers, audio, video, and TV end devices. A lossfree high-quality connection of these components is crucial for the picture quality. Especially with high-grade components the??Cinema-SV??can shine with its constant wave impedance of 75 ??. The robust PVC jacket is very flexible and protects two coaxial lines, each of which is embedded in a coloured fleece-banded PVC sleeve. Each wire is individually shielded by a cross mesh and an AL compound foil. Both the litz wires and the mesh screen are tinned.
The??Cinema-SV??is the ideal connection line for the upper S-video standard.

Advantages:

  • Easy and safe installation due to the robust and flexible outer jacket
  • Dependable, high-quality transmission of S-video signals
  • Good shielding due to single mesh screen plus AL compound foil

Application:

  • Video and monitor cable for higher demands
  • For connection of high quality components
  • Mobile application and fixed installation
Article number 600-0701
Name Cinema-SV
EAN 4049371000581
Properties Digital 75 ??
Properties Analog
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application video cable
Colour black
Colour detailed black
Construction [2LI2Y0,32mm(ST)CY]Y
Jacket material PVC
Jacket ?? [mm] 7,50
Number of Channels (video) 2
Inner conductor (video) 1
Inner conductor (video) [mm??] 0,08
Inner conductor ?? (video) [mm] 0,32
AWG (video) 28
Shielding Copper braiding tin-plated + AL-compound foil
Shielding factor [%] 100
Copper strands (video) 7
Copper strand ?? (video) [mm] 0,12
Conductor insulation material Foam / Skin-PE
Conductor insulation ?? [mm] 1,60
Weight per 1 m [g] 68
UV-resistant yes
Style variant round
Packing 200 m spool
Temperature min. [??C] -15
Temperature max. [??C] 70
Width [mm] 7,5
Height [mm] 7,5
Capacity wire/electic screen at 1m (video) [pF] 64
Capacity wire/electic screen at 1 ft. (video) [pF] 19,5072
Damping at 5 MHz (100m & 20?? C) [dB] 4,3
Damping at 5 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 1,3106
Damping at 50 MHz (100m & 20?? C) [dB] 16,6
Damping at 50 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 5,0597
Damping at 100 MHz (100m & 20?? C) [dB] 22,5
Damping at 100 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 6,858
Damping at 200 MHz (100m & 20?? C) [dB] 30,6
Damping at 200 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 9,3269
Damping at 470 MHz (100m & 20?? C) [dB] 60,5
Damping at 470 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 18,4404
Damping at 862 MHz (100m & 20?? C) [dB] 99,3
Damping at 862 MHz (100 ft. & 20 ??C / 68 ??F) [dB] 30,2666
Impedance [??] 75
BPVo-Euroclass Fca
