***Price Is Per Meter***
Dual screen...

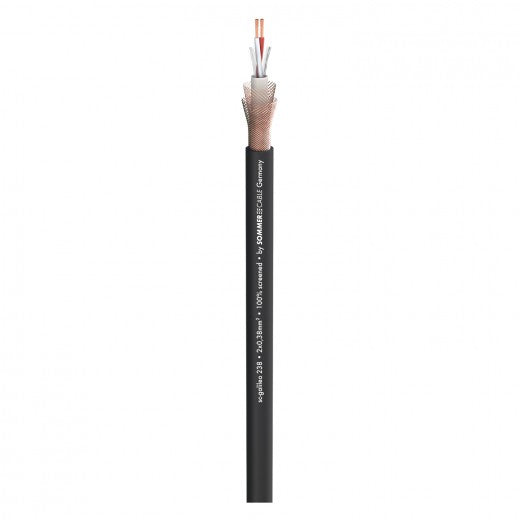

shields better. Just like the??SC-SYMBIOTIC, but a little bit more exclusive due to the dual reversely stranded helical copper mesh screen and the wire pairs embedded in PVC. This makes it even more flexible. Because of the thicker wire diameter (2 x 0,38 mm??) it is suitable for distances greater than 100 meters. This cable is technically sophisticated and may be the best microphone cable on the world market. Your clients in the recording studio will be surprised at the low-noise transmission!
Advantages:
- Extreme long life and twist-proof due to the thick jacket and the wire pairs embedded in PVC
- Absolutely neutral and loss-free audio transmission due to the use of fine copper
litz wires - Excellent protection due to the dense reverse dual mesh screen
- Very flexible due to the tightly stranded conductors and litz wires
- Loss-free transmission over long distances due to a large wire gauge of 2 x 0,38 mm??
Application:
- Highly professional studio and stage technology
- Demanding OB van technology for radio and broadcasting
- First-class hifi connection (red and white conductors on pin 1, separate shielding)
???Specifications:
| Article number | 200-0251 |
|---|---|
| Name | SC-Galileo 238 |
| EAN | 4049371001212 |
| Properties | Analog |
| Properties | OFC oxygen free copper |
| Application area | Mobile outdoor / indoor |
| Application area | Stage / live |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application | Microphone Cable |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | (2LI2Y0,38mm??)YDDY |
| Jacket material | PVC |
| Jacket ?? [mm] | 7,00 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 2 |
| Inner conductor (audio) [mm??] | 0,38 |
| Inner conductor ?? (audio) [mm] | 0,70 |
| AWG (audio) | 21 |
| Shielding | Double copper spiral, counter-rotating |
| Shielding factor [%] | 100 |
| Copper strands (audio) | 48 |
| Copper strand ?? (audio) [mm] | 0,10 |
| Conductor insulation material | PE |
| Conductor insulation ?? [mm] | 1,55 |
| Weight per 1 m [g] | 60 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,22 |
| Style variant | round |
| Packing | 100 m spool |
| Temperature min. [??C] | -30 |
| Temperature max. [??C] | 70 |
| Width [mm] | 7 |
| Height [mm] | 7 |
| Capac. cond./cond. per 1 m (audio) [pF] | 50 |
| Capacity wire/wire at 1 ft. (audio) [pF] | 15,24 |
| Capac. cond./shield. per 1 m (audio) [pF] | 100 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] | 30,48 |
| Impedance [??] | 38 |
| Insulation resist. per 1 km [G??] | 1 |
| Insulation resist. per 1000 feet [G??] | 0,3048 |
| Insulation resist. per 1 km (audio) [G??] | 1 |
| Insulation resist. per 1000 feet (audio) [G??] | 0,3048 |
| Conductor resistance per 1 km [??] | 52 |
| Conductor resistance per 1000 ft. [??] | 15,8496 |
| Shield. resistance per 1 km [??] | 20 |
| Shield. resistance per 1000 ft. [??] | 6,096 |
| BPVo-Euroclass | Fca |
