***Price Is Per Meter***
The memory cable...

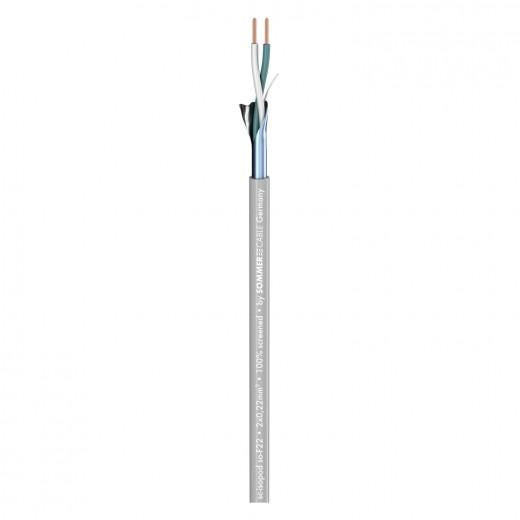

Will get things in order. In switching cabinets and racks it often looks like on grandma's knitting pattern. Tidiness is indispensable. The SC-ISOPOD SO-F22D is a 2-wire, foil-shielded cable with a compact outer diameter of 3,30 mm. The cable is primarily used for the internal wiring in audio and hi-fi components. It has a ???memory effect??? and can be laid ???around the corner??? easily. The Cu wires of the individual wire pairs are already pre-stranded and very easy to strip. For a simpler assembly, the cable has an additional pre-stranded, tin-plated drain wire. It is shielded by an AL/PT foil that will automatically stick on the jacket when stripping it. The SC-ISOPOD SO-F22D has a surge impedance of 110 ??.
Advantages:
- Quick and easy to handle
- Robust plastic jacket for long life
- Easy to lay thanks to ???memory effect???
Application:
- Internal wiring of racks, audio and hifi components
| Article number | 500-0406 |
|---|---|
| Name | SC-Isopod SO-F22 |
| EAN | 4049371005432 |
| Properties | Analog |
| Properties | Digital 110 ?? AES / EBU |
| Properties | OFC oxygen free copper |
| Application area | Installation |
| Application | Patch cable |
| Colour | grey |
| Colour detailed | grey |
| Signal transmission | symmetrical |
| Construction | (2LI2Y0,22mm??)(ST)Y |
| Jacket material | PVC |
| Jacket ?? [mm] | 3,30 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 2 |
| Inner conductor (audio) [mm??] | 0,22 |
| Inner conductor ?? (audio) [mm] | 0,53 |
| AWG (audio) | 24 |
| Shielding | AL / PT foil + AL / PT foil + filler strand, tin-plated |
| Shielding factor [%] | 100 |
| Copper strands (audio) | 7 |
| Copper strand ?? (audio) [mm] | 0,20 |
| Conductor insulation material | PP |
| Conductor insulation ?? [mm] | 1,30 |
| Weight per 1 m [g] | 16 |
| Fire load per m [kWh] | 0,05 |
| Style variant | round |
| Packing | 200 m spool |
| Temperature min. [??C] | -25 |
| Temperature max. [??C] | 70 |
| Width [mm] | 3,3 |
| Height [mm] | 3,3 |
| Capac. cond./cond. per 1 m (audio) [pF] | 74 |
| Capacity wire/wire at 1 ft. (audio) [pF] | 22,5552 |
| Capac. cond./shield. per 1 m (audio) [pF] | 143 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] | 43,5864 |
| Impedance [??] | 110 |
| Surge impedance (audio) [??] | 110 |
| Insulation resist. per 1 km [G??] | 0,2 |
| Insulation resist. per 1000 feet [G??] | 0,061 |
| Insulation resist. per 1 km (audio) [G??] | 0,2 |
| Insulation resist. per 1000 feet (audio) [G??] | 0,061 |
| Conductor resistance per 1 km [??] | 88 |
| Conductor resistance per 1000 ft. [??] | 26,8224 |
| Shield. resistance per 1 km [??] | 75 |
| Shield. resistance per 1000 ft. [??] | 22,86 |
| BPVo-Euroclass | Fca |
