Sommer Cable - Isopod So-F22 - Grey

Currently Out Of Stock
SKU 200-0406
***Price Is Per Meter***

The memory cable...

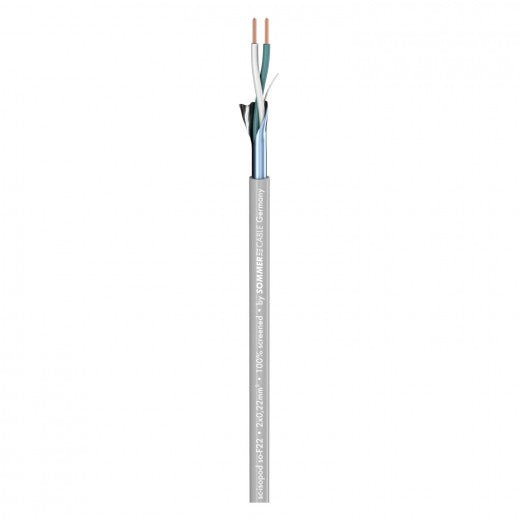

Will get things in order. In switching cabinets and racks it often looks like on grandma's knitting pattern. Tidiness is indispensable. The SC-ISOPOD SO-F22D is a 2-wire, foil-shielded cable with a compact outer diameter of 3,30 mm. The cable is primarily used for the internal wiring in audio and hi-fi components. It has a ???memory effect??? and can be laid ???around the corner??? easily. The Cu wires of the individual wire pairs are already pre-stranded and very easy to strip. For a simpler assembly, the cable has an additional pre-stranded, tin-plated drain wire. It is shielded by an AL/PT foil that will automatically stick on the jacket when stripping it. The SC-ISOPOD SO-F22D has a surge impedance of 110 ??.


  • Quick and easy to handle
  • Robust plastic jacket for long life
  • Easy to lay thanks to ???memory effect???


  • Internal wiring of racks, audio and hifi components


Article number 500-0406
Name SC-Isopod SO-F22
EAN 4049371005432
Properties Analog
Properties Digital 110 ?? AES / EBU
Properties OFC oxygen free copper
Application area Installation
Application Patch cable
Colour grey
Colour detailed grey
Signal transmission symmetrical
Construction (2LI2Y0,22mm??)(ST)Y
Jacket material PVC
Jacket ?? [mm] 3,30
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,22
Inner conductor ?? (audio) [mm] 0,53
AWG (audio) 24
Shielding AL / PT foil + AL / PT foil + filler strand, tin-plated
Shielding factor [%] 100
Copper strands (audio) 7
Copper strand ?? (audio) [mm] 0,20
Conductor insulation material PP
Conductor insulation ?? [mm] 1,30
Weight per 1 m [g] 16
Fire load per m [kWh] 0,05
Style variant round
Packing 200 m spool
Temperature min. [??C] -25
Temperature max. [??C] 70
Width [mm] 3,3
Height [mm] 3,3
Capac. cond./cond. per 1 m (audio) [pF] 74
Capacity wire/wire at 1 ft. (audio) [pF] 22,5552
Capac. cond./shield. per 1 m (audio) [pF] 143
Capacity wire/electic screen at 1 ft. (audio) [pF] 43,5864
Impedance [??] 110
Surge impedance (audio) [??] 110
Insulation resist. per 1 km [G??] 0,2
Insulation resist. per 1000 feet [G??] 0,061
Insulation resist. per 1 km (audio) [G??] 0,2
Insulation resist. per 1000 feet (audio) [G??] 0,061
Conductor resistance per 1 km [??] 88
Conductor resistance per 1000 ft. [??] 26,8224
Shield. resistance per 1 km [??] 75
Shield. resistance per 1000 ft. [??] 22,86
BPVo-Euroclass Fca
