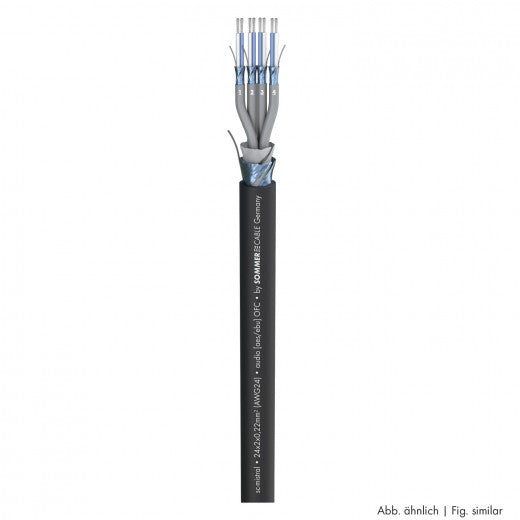

Sommer Cable - MCF32 - 32 Channel Multi-Core Signal Cable

SKU 100-0101-32
***Price Is Per Meter***

Almost as old as Methuselah...

that???s the??SC-Mistral MCF??multipair. We have been making it for almost 10 years using the same proven technology. The??SC-Mistral MCF??features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8.
The wire pairs of the??SC-Mistral MCF??have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The??SC-Mistral MCF??is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket.


  • Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve
  • Very flexible and tread-resistant owing to the use of a rubberlike jacket material
  • Simple and fast handling due to the use of compound foil and a pre-twisted drain wire
  • High bending cycles due to the tightly stranded Cu litz wires
  • Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs
  • High transmission quality even with excess distances (low capacitance!)
  • Affordable price


  • Ideal for studio installation and permanent installation
  • Fixed installation in theatres, public buildings etc.
  • Construction of dependable cable reel systems
Article number 100-0101-32
Name SC-Mistral MCF32
EAN 4049371000598
Construction [32(2LI2Y0,22mm??)(ST)Y]F(ST)Y
Jacket ?? [mm] 26,80
Number of Channels (audio) 32
Weight per 1 m [g] 836
Fire load per m [kWh] 4,04
Width [mm] 26,8
Height [mm] 26,8
Article number 100-0101
Name SC-Mistral MCF
Properties Digital 110 ?? AES / EBU
Properties OFC oxygen free copper
Properties Analog
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application Multipair
Colour black
Colour detailed black, mat
Signal transmission symmetrical
Number of Channels (audio) 32
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,22
Inner conductor ?? (audio) [mm] 0,53
AWG (audio) 24
Shielding AL / PT foil + total foil shielding + filler strand
Shielding factor [%] 100
Copper strands (audio) 7
Copper strand ?? (audio) [mm] 0,20
Conductor insulation material Foam / Skin-PE
Conductor insulation ?? [mm] 1,60
UV-resistant yes
Style variant round
Packing bulk stock
Temperature min. [??C] -30
Temperature max. [??C] 70
Capac. cond./cond. per 1 m (audio) [pF] 46
Capacity wire/wire at 1 ft. (audio) [pF] 14,0208
Capac. cond./shield. per 1 m (audio) [pF] 85
Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908
Impedance [??] 110
Insulation resist. per 1 km [G??] 1
Insulation resist. per 1000 feet [G??] 0,3048
Insulation resist. per 1 km (audio) [G??] 1
Insulation resist. per 1000 feet (audio) [G??] 0,3048
Conductor resistance per 1 km [??] 80
Conductor resistance per 1000 ft. [??] 24,384
Shield. resistance per 1 km [??] 75
Shield. resistance per 1000 ft. [??] 22,86
BPVo-Euroclass Fca
