Sommer Cable - Mercator CAT.7 PUR

$19.99
SKU 581-0071

***Price Is Per Meter***

CATlike agility and mobility...

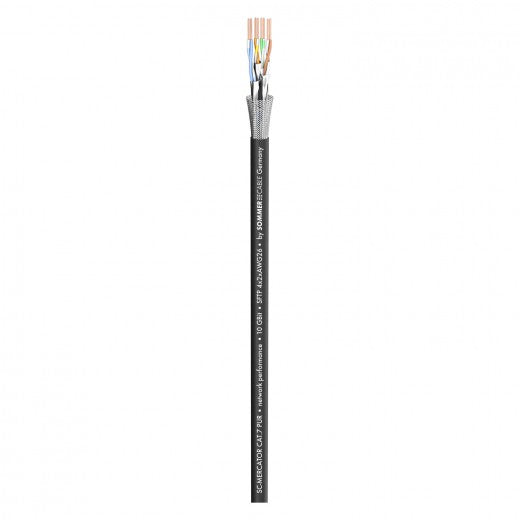

TheSC-Mercator CAT.7 PURis the perfect cable for mobile outdoor transmissions of digital audio or network signals, e.g. for use in OB vans. Ethersound signals can be transmitted easily over up to 75 m. Its halogen-free, flame-retardant PUR jacket (according to IEC60332.1) is extremely notch- and tread-resistant, cold-flexible and easy to reel. The wires are fitted with a foam-skin PE insulation and shielded in pairs with an AL-PT foil (PimF). The overall screen consists of Cu mesh plus fleece. This ensures optimal transmission properties over long distances.

Advantages:

  • Safe data transfer due to high-quality insulation and shielding
  • Great durability due to a special, extremely robust jacket compound
  • Outdoor temperature resistant, easy to reel

Application:

  • For mobile OB van use and outdoor applications
  • For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions

???Specificatations:

Article number 581-0071
Name SC-Mercator CAT.7 PUR
EAN 4049371005470
Properties Digital 110 ?? AES / EBU
Properties Halogen-free / LSZH
Properties OFC oxygen free copper
Properties PUR
Properties FRNC flame retardant
Application area Mobile outdoor / indoor
Application area Installation
Application area Studio / Broadcast
Application Cat.7
Colour black
Colour detailed black

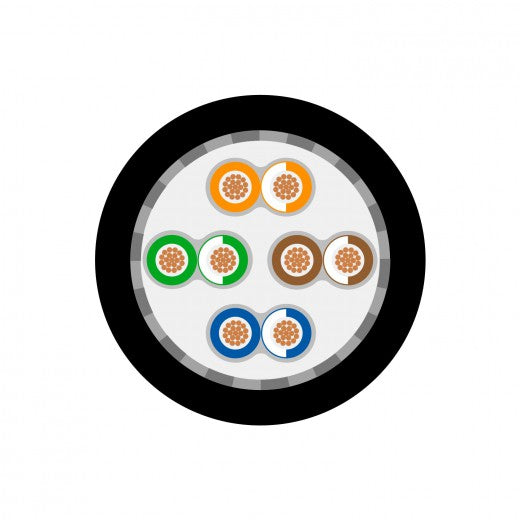

Construction SFTP 4x2x0,14 mm??/600 MHz
Construction (network) SFTP 4x2x0,14mm?? / 600 MHz
Jacket material PUR
Jacket ?? [mm] 6,50
Number of Channels (network) 1
Inner conductor (network) 8
Inner conductor (network) [mm??] 0,14
AWG (network) 26
Shielding PimF, Copper braiding tin-plated
Shielding factor [%] 100
Copper strands (network) 7
Copper strand ?? (network) [mm] 0,16
Conductor insulation material Foam / Skin-PE
Weight per 1 m [g] 40
UV-resistant yes
Fire load per m [kWh] 0,19
Style variant round
Packing 100 m spool
Packing 500 m spool
CAT-Type CAT.7
Velocity factor 0,75
Temperature min. [??C] -20
Temperature max. [??C] 60
Width [mm] 6,5
Height [mm] 6,5
Capacity wire/wire at 1m (network) [pF] 45
Capacity wire/wire at 1 ft. (network) [pF] 13,716
Impedance [??] 100
Insulation resist. per 1 km [G??] 2
Insulation resist. per 1000 feet [G??] 0,6096
Insulation resist. per 1 km (network) [G??] 2
Insulation resist. per 1000 feet (network) [G??] 0,6096
Loop resistance per km [??] 290
Loop resistance per 1000 ft. [??] 88,392
Max. delay (skew) 10 ns @ 100 MHz/100 m
BPVo-Euroclass Fca
